120 Ton L-beam Truck Scale
- Popular maximum weighing(t): 120 ton.
- Weighing sensors: IP67, IP68, IP69K; Static Level III.
- Unique “L” girder design: Provides strength and durability.
- Corrosion resistance: Anti-rust and wear-resistant paint.
- Precise weighing: Delivers accurate measurements.
- Cable protection: Rat-proof conduit for durability.

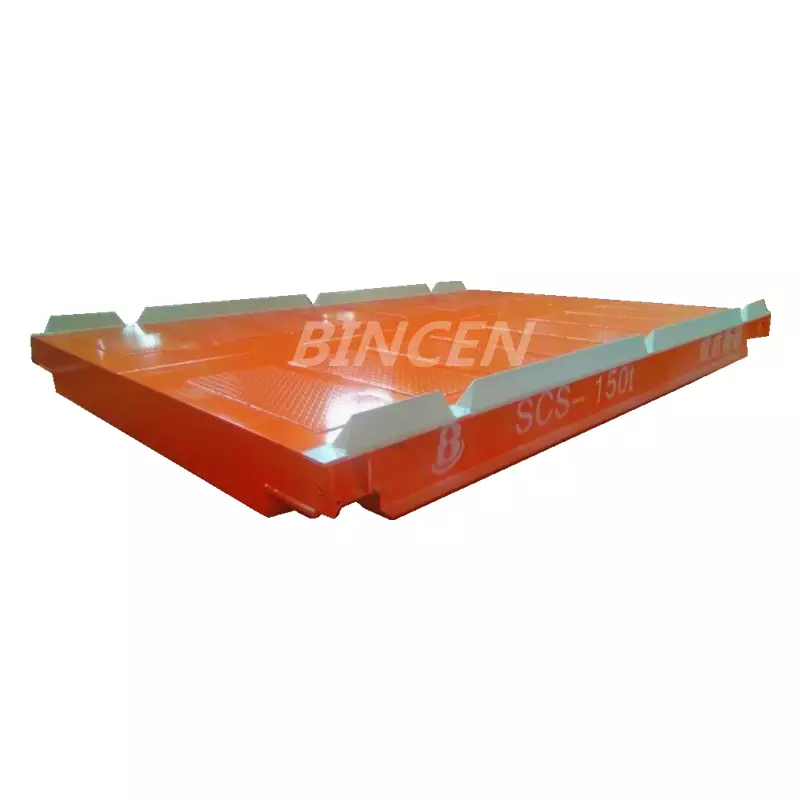

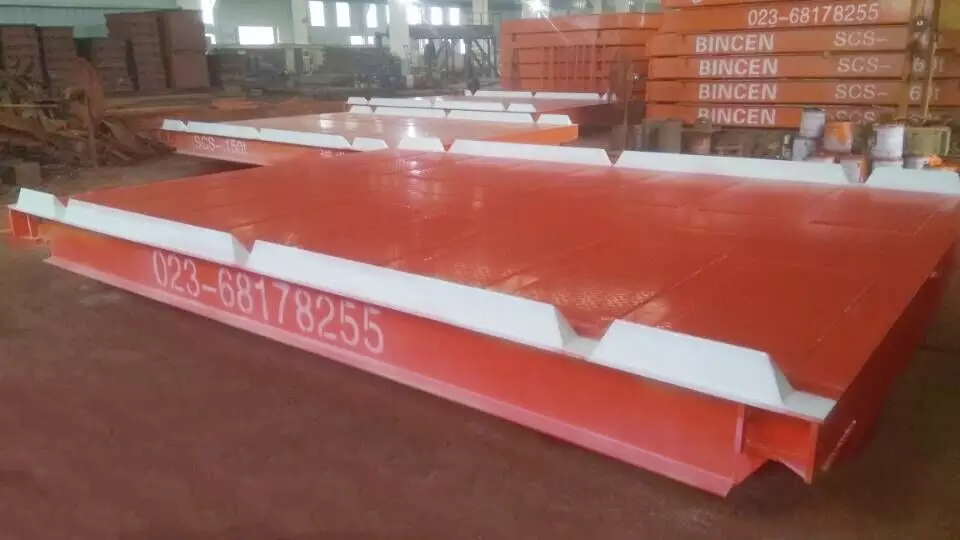

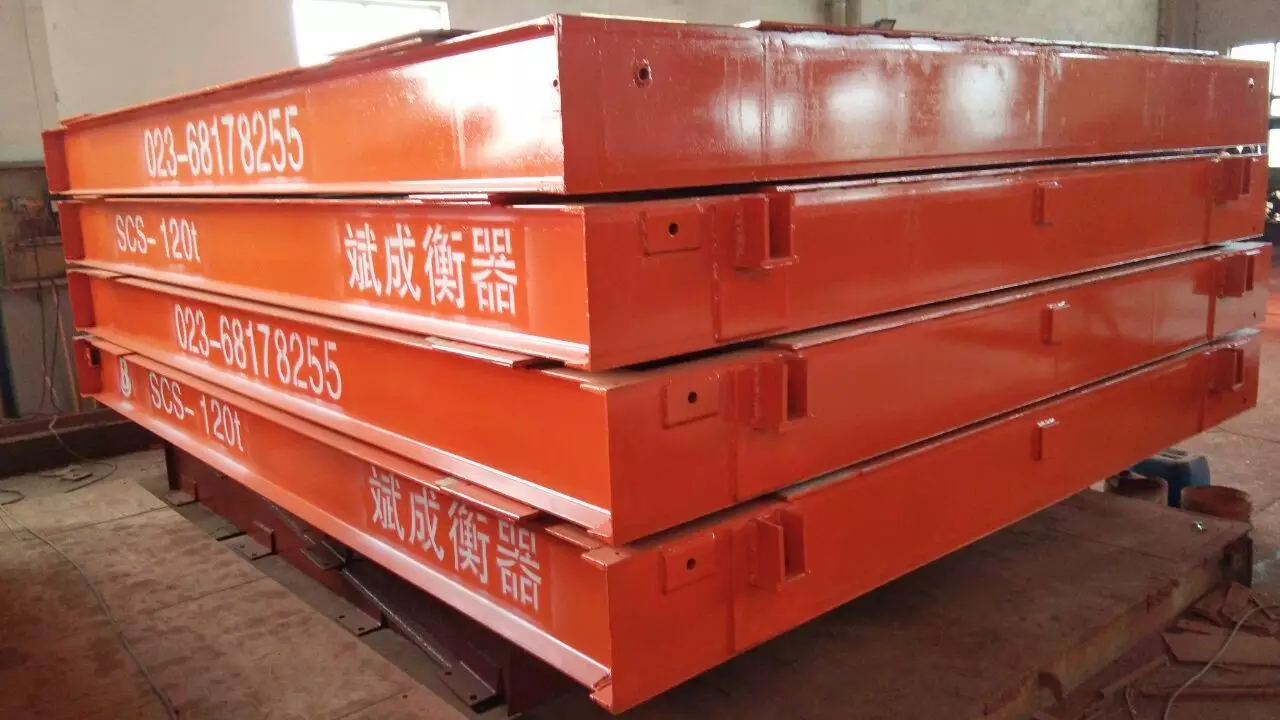

The Bincen 120 Ton L-beam Truck scale is famous for its distinctive “L” girder design and is a typical product. The scale body is made from girders that run longitudinally and transverse rib plates. Then, the transverse steel plates creating an unbreakable box structure. This design is stress-resistant and provides superior quality and durability, as well as a long life.
It is a truck scale has a high-precision weighing system, with a capacity of 120 tonnes. The sensors come with selectable security ratings, including IP67, IP68, and IP69K and their accuracy for static measurements can be upgraded to the level III. In addition, wear-resistant and anti-rust paint improves corrosion resistance and rat-proof cable protection increases the durability of the.
Features

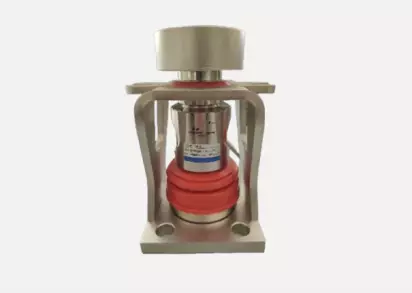

- Sensor support that is sturdy: Ensures stability and accuracy.
- Body structure with a durable scale: Provides strength and endurance, and is fully enclosed at the end lap joint.
- Reinforced structures: Reinforcement plates and lap joints with auxiliary components increase stability.
- A precise measurement： Provides accurate weighing data.
- Reliable performance： Continuous and stable operation.
- Extended life: Durable construction for long-term usage.
- Protection of cables: Rat-proof cable for long-lasting durability.
- Treatment of the surface: Anti-rust and wear-resistant paint for protection against corrosion.
Specification
| 20t | 30t | 40t | 50t | 60t | 80t | 100t | 120t | |
| Maximum weighing(t) | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 120 |
| Dividing value(kg) | 5 10 | 10 | 10 20 | 10 20 | 20 | 20 | 20 50 | 20 50 |
| Scale body panel thickness(mm) | 8、9、10 | 8、9、10 | 9、10、12 | 10、12 | 10、12 | 10、12 | 10、12 | ≥12 |
| 10t, 20t, 30t, 40t, and other specifications, selected according to the weighing and user requirements | ||||||||
| Sensor specifications | Instrument options: DS3, DS8, DS10, D2008, D39, and other instruments, including keyboard operation and touch screen display Optional printer: EPSON series | |||||||
| Platform size (L x W) | Instrument options: DS3, DS8, DS10, D2008, D39, and other instruments, including keyboard operation and touchscreen display Optional printer: EPSON series | |||||||
| Display meter and printer | The thickness of the scale body panel: 6, 8, 9, 10, 12, 14, 16, 20 mm, etc., selected according to different scales and user requirements. | |||||||
Configuration

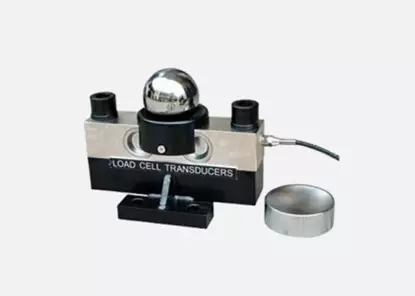

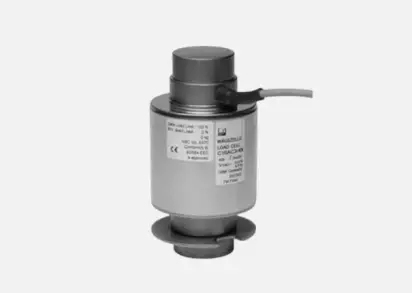

- Weighing sensors: IP67, IP68, IP69K; Static Level III; Famous brands; High precision, stability, and repeatability.
- Weighing instrument
- Weighing software
- Junction box: IP68/69K protection
- Optional printer, large screen, UPS power supply, computer, barrier and vehicle detector, infrared vehicle separator (point or strip light screen), traffic lights, computer network system, camera image capture software, license plate automatic recognition, video monitoring system, etc.

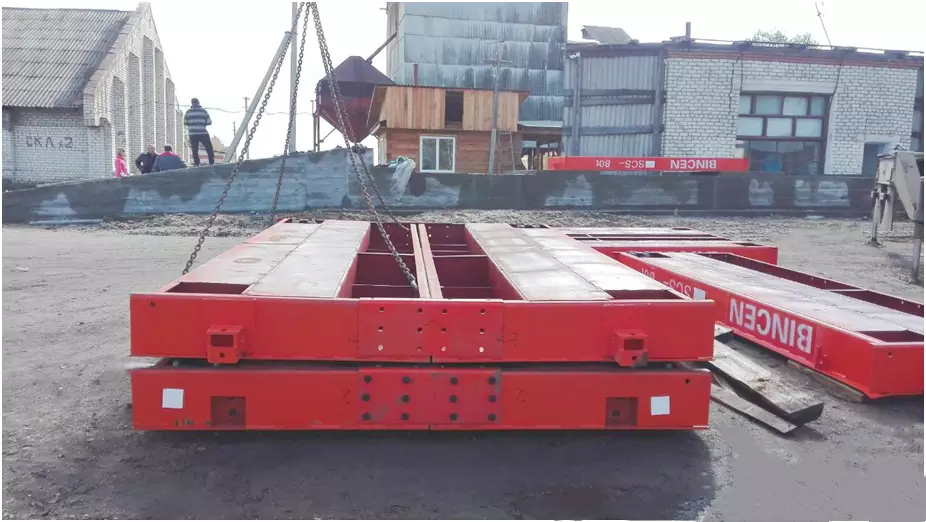

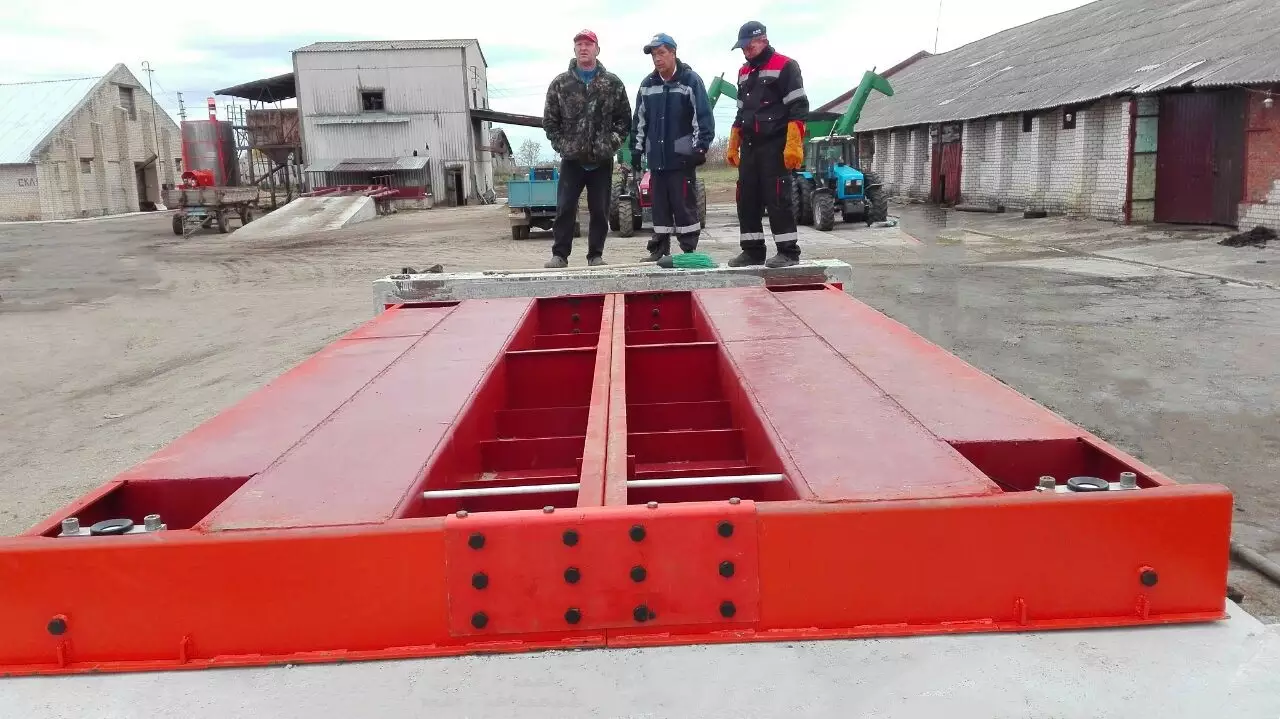

How to Install the 120 Ton L-Beam Truck Scale
120 ton L-beam truck scale supplier Bincen offers a modular design and pre-integrated systems for the 120 ton L-beam truck scale, simplifying installation and reducing costs. Our comprehensive technical support includes expert advice, detailed installation instructions, and after-sales support. While on-site service may not be available, we provide video tutorials and remote assistance for a smooth installation process.
Why Choose Us?
- Specialized Products: Bincen specializes in electronic scales, ingredient controllers, instruments, and automation equipment, catering to construction machinery manufacturers.
- Wide Range of Offerings: Our company provides industrial automation control, testing equipment, weighing systems, and sensor instruments for various industries.
- Proven Experience: With over 20 years in the industry, we offer expertise in production, R&D, and sales.
- Comprehensive Support: Our team of engineers provides expert guidance throughout the sales process, including solution design, product selection, installation, and maintenance.
