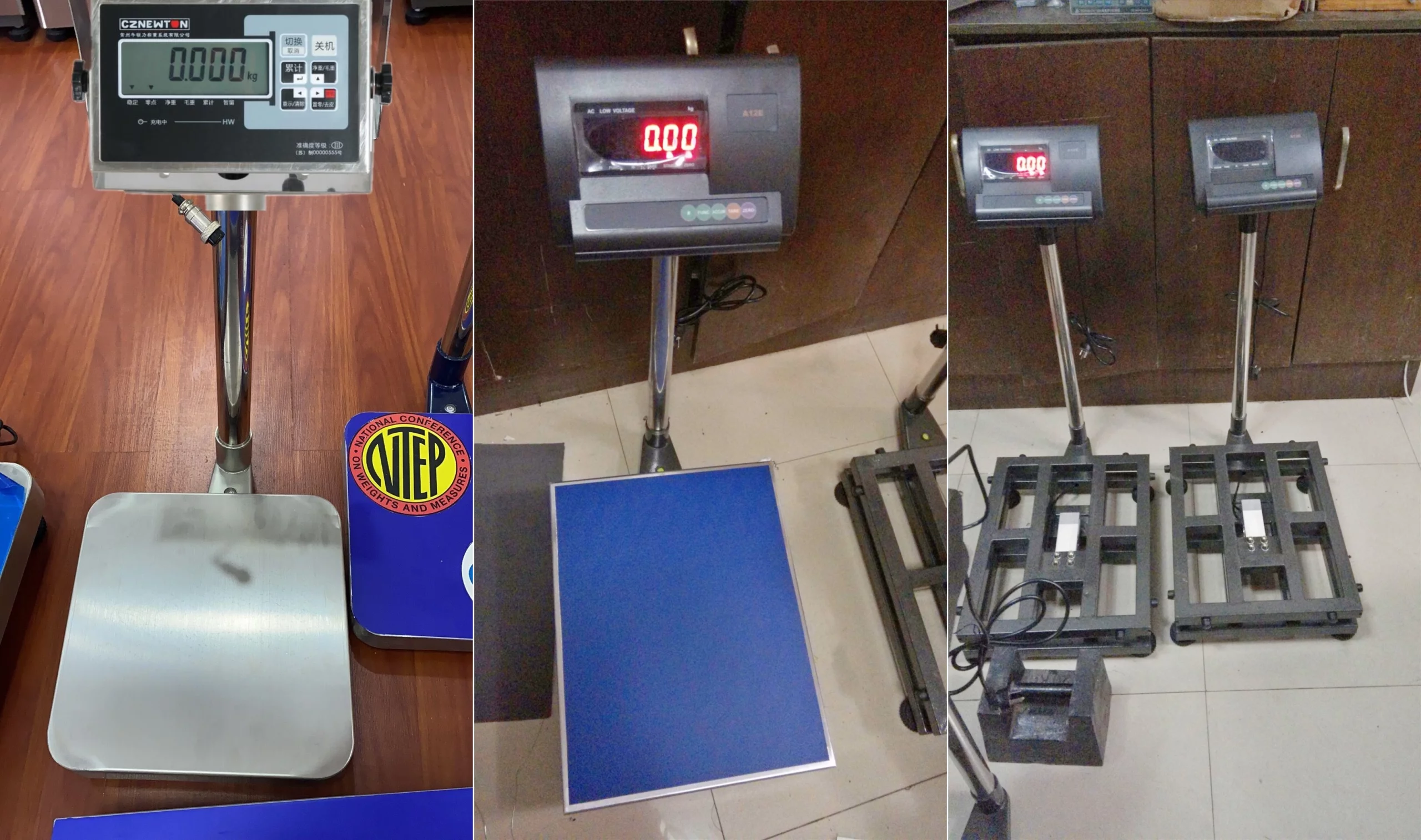

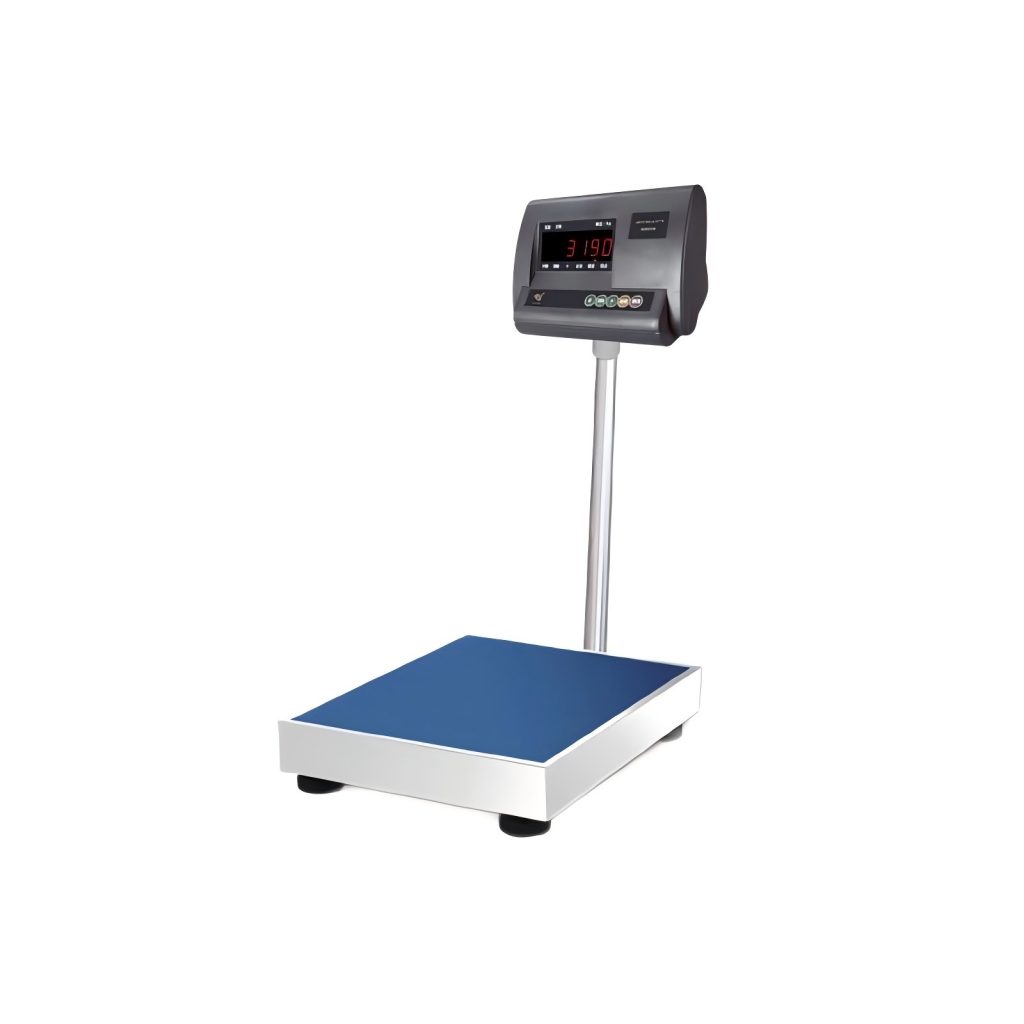

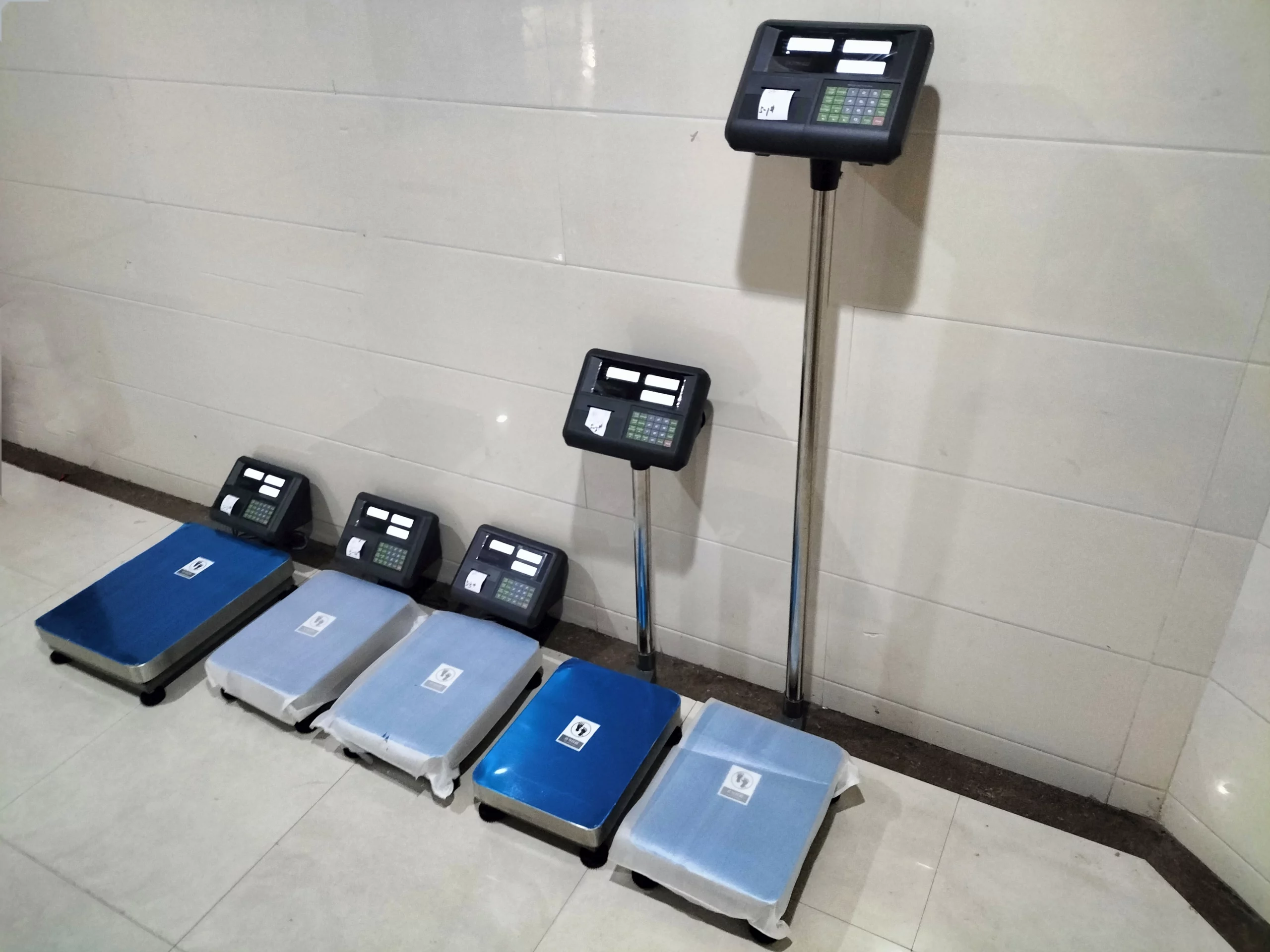

Electronic Weighing Platform Scale
- Range: 5kg~10t.
- Size: Customizable.
- Separation function: Separates items based on weight.
- Basic configuration: Weighing platform, instruments, sensors, etc.
- Automatic zeroing: Sets the scale to zero upon startup.
- AC/DC power supply: Compatible with both AC and DC power sources.
Bincen Electronic Platform Scale is recognized for its accurate weighing and high precision, featuring a fast response for enhanced convenience. The intuitive display eliminates visual errors, and effective weighing software enables microcomputer management of data, ensuring scientific measurement.
With a range of 5 kg to 10 tons and customizable sizes, it also includes a separation function to categorize items by weight. The scale’s basic configuration features a weighing platform, instruments, and sensors, with automatic zeroing for startup accuracy. It is compatible with both AC and DC power sources, offering great versatility.
Function of Electronic Weighing Platform Scale
- Automatic zeroing: Sets the scale to zero upon startup.
- Manual peeling/zeroing: Allows for manual adjustment of the zero point.
- AC/DC power supply: Compatible with both AC and DC power sources.
- Digital display: Displays weighing data digitally.
- Weight accumulation: Adds up multiple weights.
- Counting function: Counts the number of items being weighed.
- Weight inspection: Compares weight to a target value.
- Separation function: Separates items based on weight.
- Dynamic weighing: Measures weight while objects are in motion.
- Data recording function: Records weighing data for later analysis.
- Control alarm function: Triggers an alarm based on specific weight conditions.
Specification of Electronic Weighing Platform Scale
- Function: Zero setting, peeling, and accumulation;
- Size: 400-2000mm × 400-2000mm weighing platform with various specifications, customizable;
- Basic configuration: weighing platform, instruments, sensors, etc.
- Range: 5kg~10t;
- Accuracy: OIML Level III Accuracy: 1/5000, 1/6000, 1/7500, 1/10000; OIML Level II accuracy: 1/12000, 1/15000.

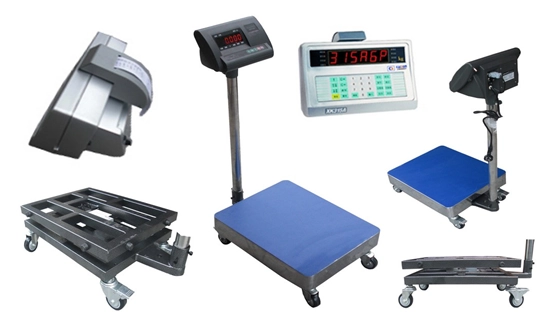

Composition of Electronic Weighing Platform Scale
(1) Supporting high-precision instruments: XK3190-A12, XK3190-A23P, XK3190-A35E
- High technology, high stability and reliability;
- High measurement accuracy;
- Unique anti-drift and creep compensation proprietary technology;
- RS232 communication interface;
- Customizable special function software.

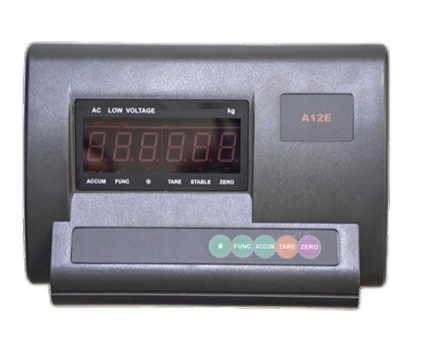

It adopts high-precision analog-to-digital conversion technology and special software anti-vibration technology and applies to static weighing systems with 1~4 sensors such as electronic platform scales and electronic platform scales. High precision A/D conversion, readability up to 1/30000.

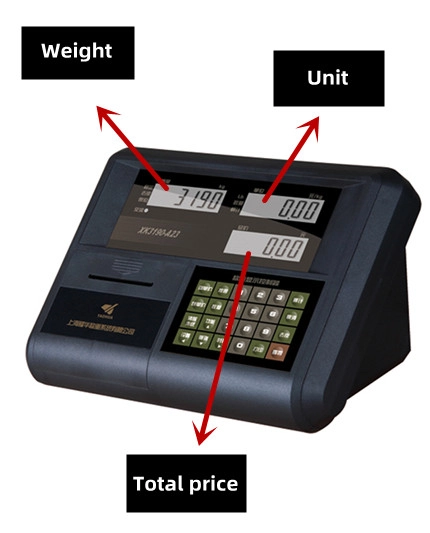

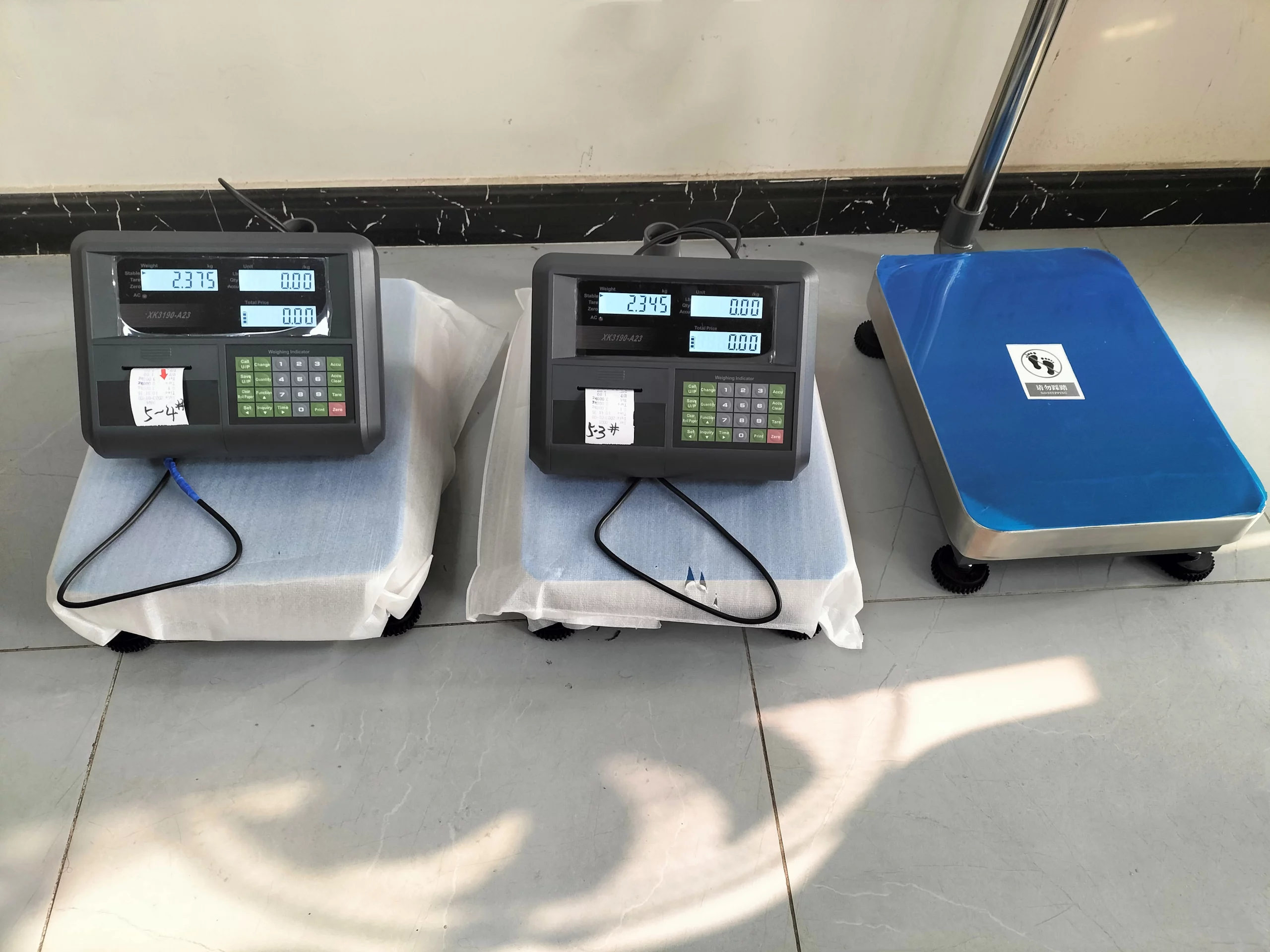

t is a three-window LCD pricing instrument with a built-in micro printer, which is suitable for static weighing systems using 1~4 sensors such as electronic platform scales, electronic platform scales, and electronic ground scales.

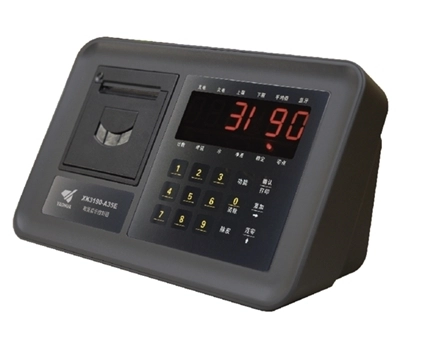

It is a platform scale instrument with a built-in label printer, and the printing format can be customized and edited. It adopts high-precision A/D conversion technology, which is suitable for high-precision multi-function weighing occasions.

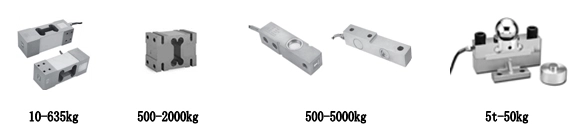

(2) Types of high-precision sensors (domestic or foreign brands):
Benefits of Choosing Bincen
- Simplified Installation: Our products are designed for effortless installation, thanks to modular components and pre-integrated systems that eliminate the need for heavy machinery. This saves you time and money on installation costs and labor.
- Comprehensive Support: We prioritize your satisfaction by offering a complete technical service system. This includes expert advice, clear installation instructions, and ongoing after-sales support. Even if on-site service isn’t available in your area, our detailed video guides and remote assistance ensure a smooth installation process.
- Related Services: We offer relevant CE certification, customized solutions, ODM and OEM services, and a warranty that covers free replacement of damaged accessories.
- Product Quality: Our weighing and batching controllers feature precise algorithms and consistent performance, ensuring accurate and reliable measurements.
- Customer Focus: We are dedicated to providing exceptional customer service through our team of experienced engineers. They offer expert guidance throughout the sales process, including solution design, product selection, installation, debugging, and after-sales maintenance.
