Check Weigher

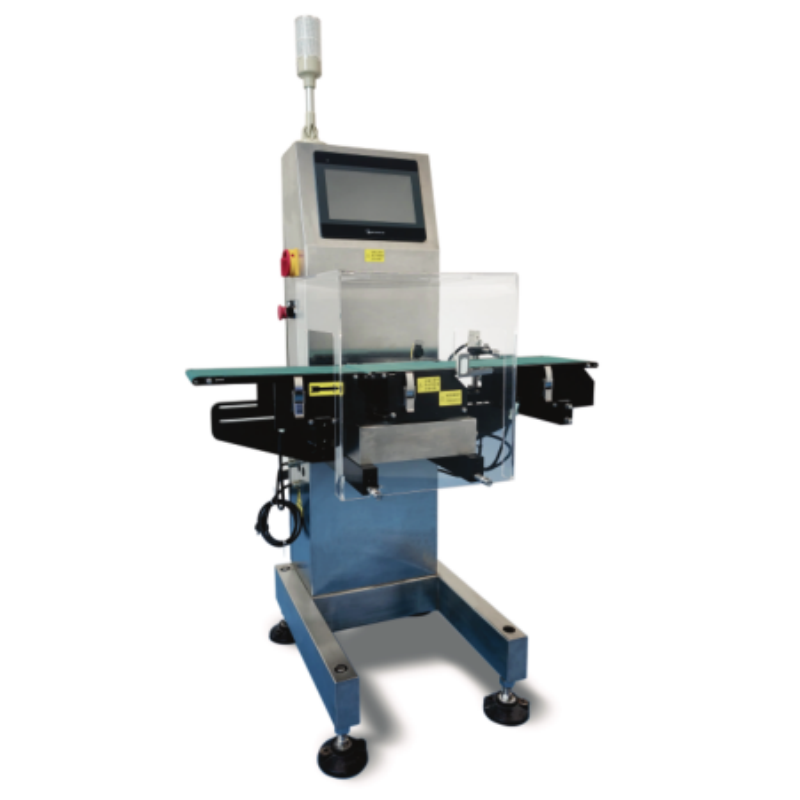

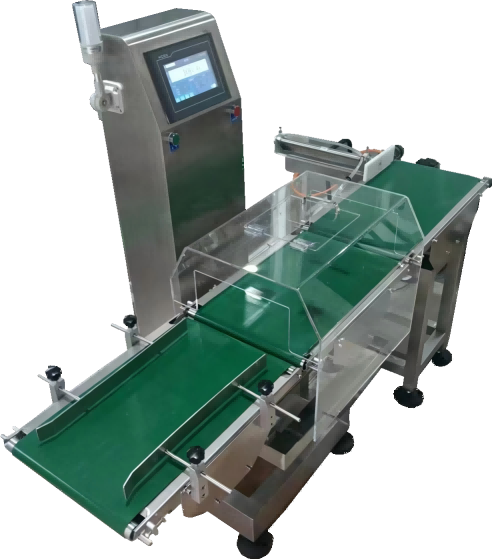

The checkweigher adopts advanced high-speed sampling and dynamic filtering technology, featuring an innovative compact design with three platforms, to provide efficient real-time online weight detection and multi-level sorting solutions for the production line, achieving precise removal of non-conforming products and product grading.
Function
Efficient multi-level sorting
Adopting a compact three-table design, it can integrate various removal devices such as air blowers, baffles, and push rods, supporting the removal of non-conforming products or achieving multi-level sorting to meet complex production requirements.
High-speed and precise detection
By applying high-speed sampling technology and dynamic filtering technology, we ensure excellent weighing accuracy and stability under high-speed operation of the production line, thus guaranteeing the reliability of quality control.
Small range precision specification
Offering a range of small capacity and high precision specifications, including 200g, 600g, 1200g, 3000g, and 6000g, it is suitable for online detection of lightweight and small products that are sensitive to weight.
Comprehensive data interaction
It supports real-time storage of weighing data and can output the data in real-time through serial ports or Ethernet interfaces, facilitating production monitoring, quality traceability, and system integration.
Characteristics
Configuration System

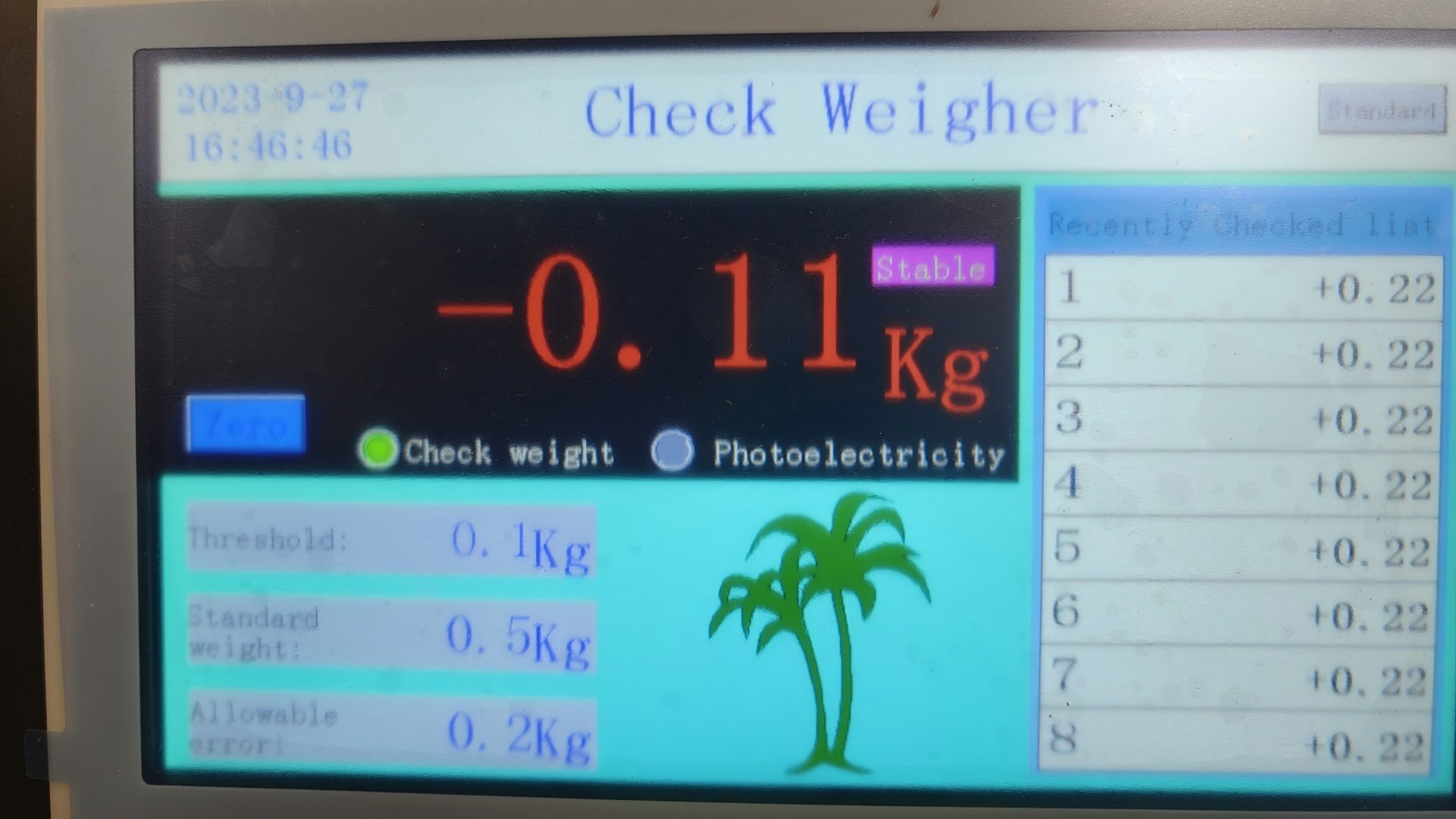

Adopts a 10-inch color touchscreen control. It can display statistics in real time and perform real-time statistical analysis, delivering intuitive and simple operation. Equipped with signal light column and alarm prompts. The system is highly configurable and pre-configured with multi-size conveyors.
Accurate Weighing
Fitted with OIML-certified sensors for precise weighing, ensuring reliable inspection of every single piece.
Superior Performance
Features IP66 protection rating. It is equipped with wear-resistant belts and a quick-change weighing platform design to improve maintenance efficiency. It accurately rejects defective products, eliminates raw material waste and guarantees product quality.
Reliable & Stable
High-quality components are optionally equipped to guarantee long service life and reduce downtime losses.
Technical Specifications
- Standard height: 800±50 mm
- Frame: 304 stainless steel
- Conveyor: Special aluminum alloy profile
- Pallet material: 304 stainless steel
- Anchor bolt: Rubber material, height adjustable ±50 mm
- Control box: Brushed stainless steel
- Belt: Wear-resistant PU
- Operating environment: The checkweigher shall be installed at a location free from vibration and airflow.
- Working temperature: -10℃ ~ 40℃
