Excavator Refitting Drilling Rig
- Hole diameter: 90-400mm
- Depth: 1-6m (single pole), up to 30m with extension pole
- Dust removal system: Optional
- Excavator compatibility: Most excavators (120+ models)
- Rock type: Suitable for both soft and hard rocks
- Versatility: Easy to switch between bucket and breaking hammer
- Efficiency: Higher efficiency and lower energy consumption compared to excavators

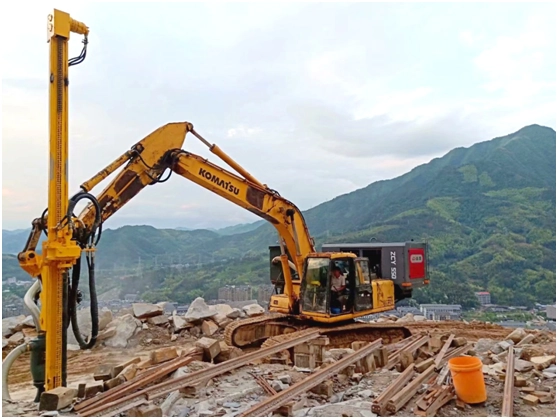

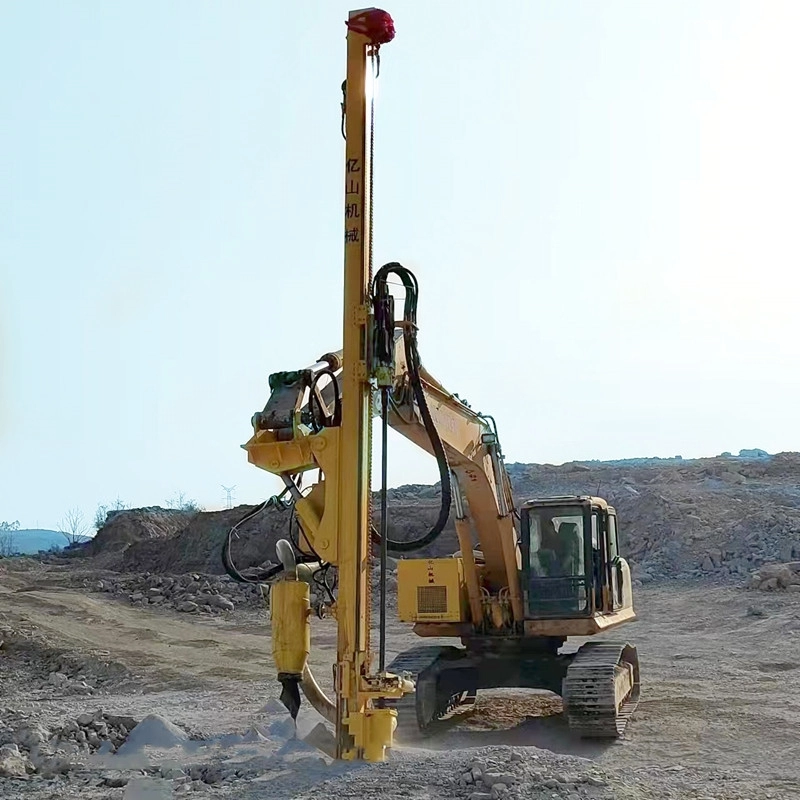

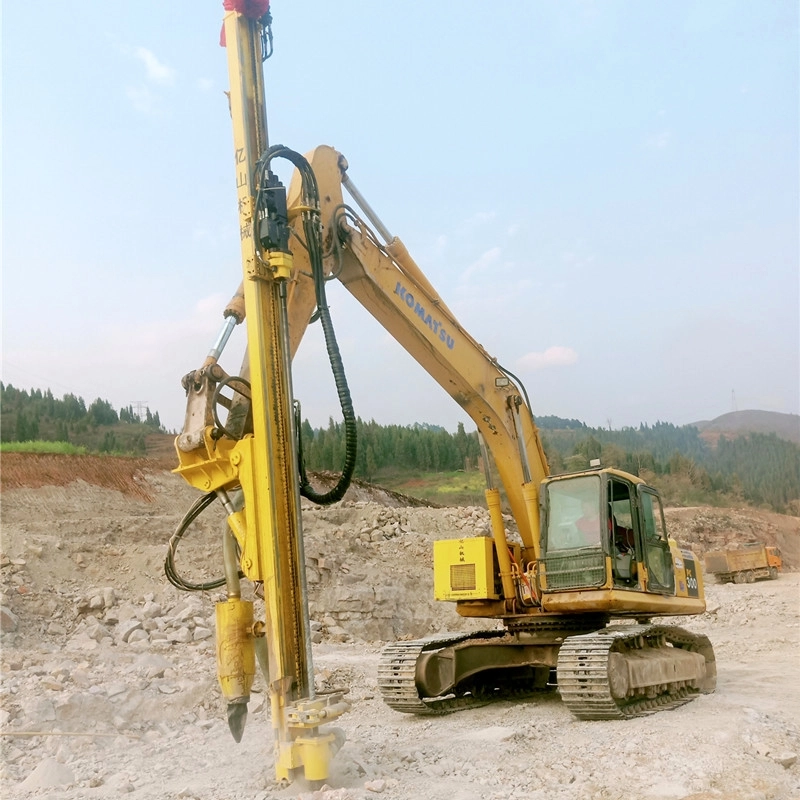

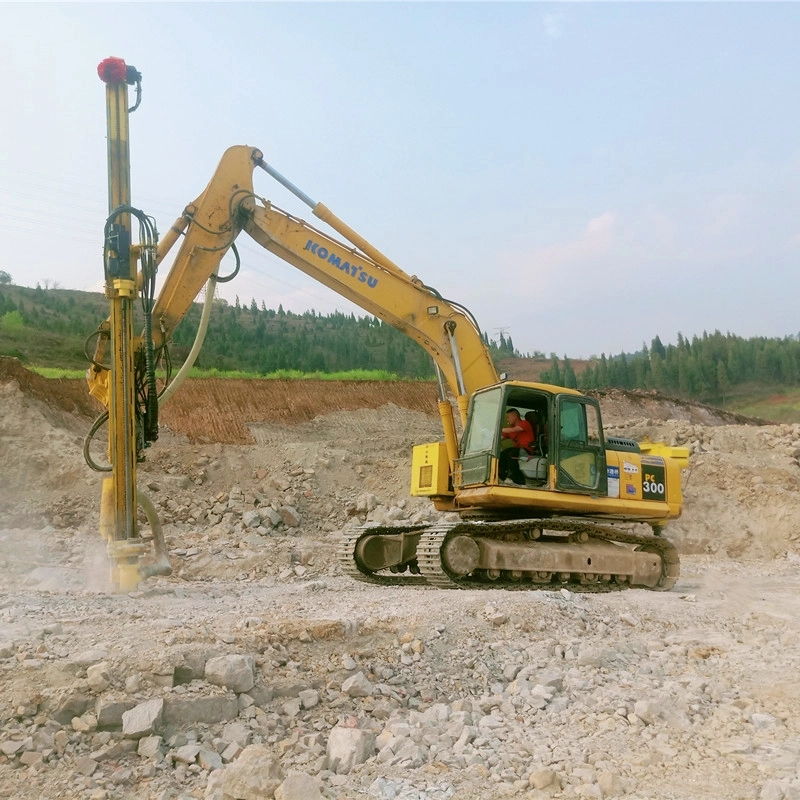

Bincen offers a high-quality excavator refitting drilling rig designed to enhance the versatility of your excavator. This innovative retrofitting solution allows you to transform your excavator into a powerful drilling machine, expanding its capabilities and improving efficiency. It is suitable for most 20-30t excavators, including popular brands like Komatsu, Caterpillar, and Hitachi.
How Excavator Refitting Drilling Rig?
- Remove the bucket of the excavator；

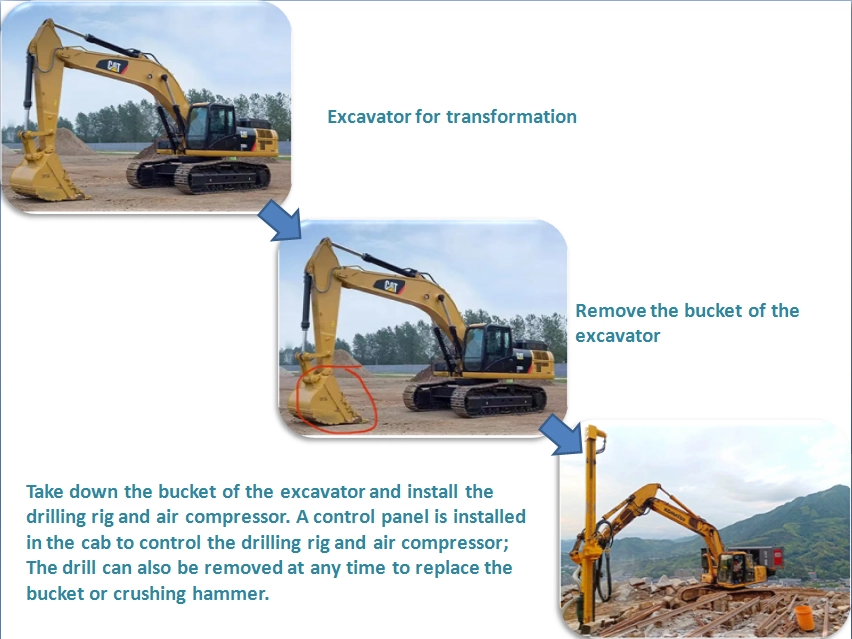

- Take down the bucket of the excavator and install the drilling rig and air compressor. A control panel is installed in the cab to control the drilling rig and air compressor; The drill can also be removed at any time to replace the bucket or crushing hammer.

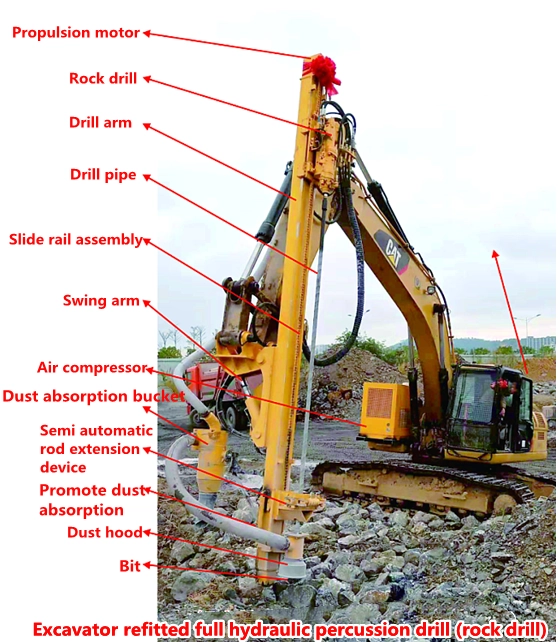

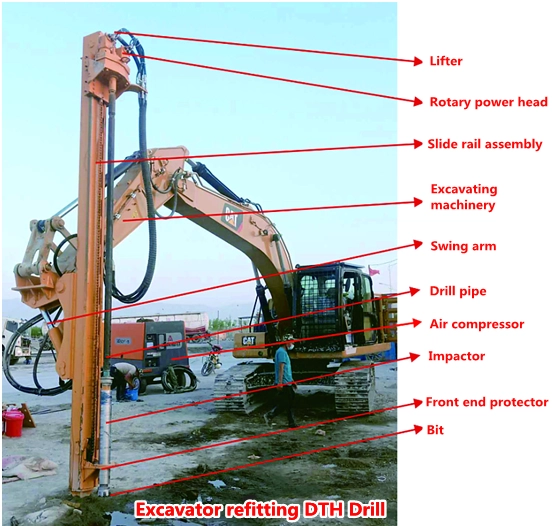

Illustration of accessories added for modification
Specification of Excavator Refitting Drilling Rig
Product Parameters
| Model of excavator suitable for retrofitting | 20-30t excavator, most of which are suitable for retrofitting. The retrofitting effect of Komatsu excavator is not as good as that of other brands. |
| Packing method | wooden box, specification: 6600 * 1400 * 1100mm |
| Weight | 3200KG |
| Applicable model of rock drill | ESAN100/200/300/400 |
| Applicable model of down the hole drill | ESAN90/100/110/130/150/165/198/250/300 |
Technical Parameters
| Model | ESAN 90/100/110/130/ 150/165/198/ 250/300mm |
| Suitable for rock | F=6 20 |
| Borehole diameter | 90 300mm |
| Operating air pressure | 0.7~2 4MPa |
| Air consumption | 7~21m³/min |
| Equipped with impactor | CIR. DHD |
| Rotating speed of moving head | 0~70rpm |
| Powerhead output torque | 3600~6500(N.n) |
| Drilling depth | 3~30m |
| Drill pipe length (optional) | 2; 3; 4; 6; 9m |
| Track travel (optional) | 2; 3; 4; 6; 9m |
Basic performance parameters of ESAN100/200/300/400 full hydraulic rock drill
| Project | Parameter items | Unit | ES100 value | ES200 value | ES300 value | ES400 value |
| Rock drill parameters | Impact energy | J | 53-70 | 120-200 | 250-300 | 350-400 |
| Impact frequency | Hz | 40-50 | 30-50 | 30-50 | 36-50 | |
| Impact on the working flow | Mpa | 12-15 | 16-19 | 16-19 | 12-16 | |
| Impact the working flow | L/min | 30-37 | 35-50 | 55-65 | 76-90 | |
| Slewing torque | Nm | 85; | 100-300 | 100-300 | 600 | |
| Number of turns | r/min | 250-350 | 220-450 | 220-450 | 220 | |
| Swing working pressure | Mpa | 12 | 7-15 | 7-15 | 14 | |
| Swing working flow | L/min | 20 | 40-70 | 40-70 | 70 | |
| Machine weight | Kg | 45 | 115 | 115 | 150 | |
| Overall dimensions | mm | 625x120x180 | 587x140x252· | 748X140X252 | 954x316x528+ | |
| Border center distance | mm | 60 | 70±0.37 | 70 | 158 | |
| Hole diameter | mm | 29-45 | 28-45（Max 64） | 38-89 | 76-102 | |
| Noise | dBA | ≤100· | ≤120(Average value measured at 5 points) | ≤120 | ≤120 | |
| Overall parameters | Maximum drilling depth | m | 9m | 15m | 15m | 15m |
| Propulsion pressure | MPa | 3-8 | 5-14 | 5-14 | 5-12 | |
| Propulsion flow | L/min | 10 | 10 | 10 | 15 | |
| Maximum drilling depth at one time | m | 4.3 | 4.6 | 5.6 | 5.6 | |
| Drilling speed | m/min | 0.8-1.2 | 0.5-1.0 | 0.5-1.0 | 0.8-1.0 | |
| Slag discharge gas volume | m³/min | 0.8 | 1.2-3.2 | 1.2-3.2 | 2.8-6.0 | |
| Slag discharge air pressure | bar | 6 | 5-8 | 5-8 | 6 | |
| Amount of lubricating air | m³/min | 0-3 | 0.02-0.05 | 0.02-0.05o | 0.3 | |
| Lubrication air pressure | bar | 3-6 | 3-6 | 3-6 | 3-6 | |
| Operating Weight | kg | 1100-1300 | 1100-1500 | 1100-15000 | 1100-1600 |
