Hopper Scale
- Relevant Certification: CE
- Services Available: Customized, ODM and OEM
- Application: Used for weighing bulk materials in industries like docks, grain depots, power plants, chemicals, and building materials.
- Advantage: High accuracy (up to 0.2%), overcoming the limitations of belt weighers.
- Function: Measures and batches bulk materials.
Bincen provides high-quality hopper scales. There are three layers in the whole weighing system. The first layer is the weighing protection hopper, the second layer is the weighing metering hopper, and the third layer is the conveying hopper.
It is an industrial scale used to measure the weight of materials in the hopper. It is mainly composed of weighing hopper, support, pneumatic valve, high-precision weighing sensor, junction box, signal cable, intelligent weighing display, etc. After entering the hopper, materials will be automatically measured and the total weight will be accumulated.
The Working Process
- The instrument controller feeding valve feeds the metering hopper;
- Measure and accumulate weight;
- Open the hopper for discharging and the valve for discharging;
- After discharging, automatically close the discharging valve.
Classification

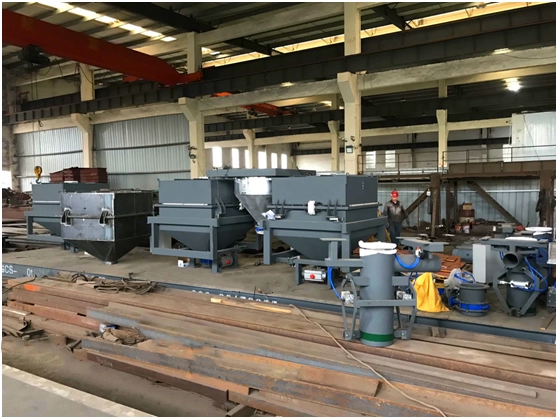

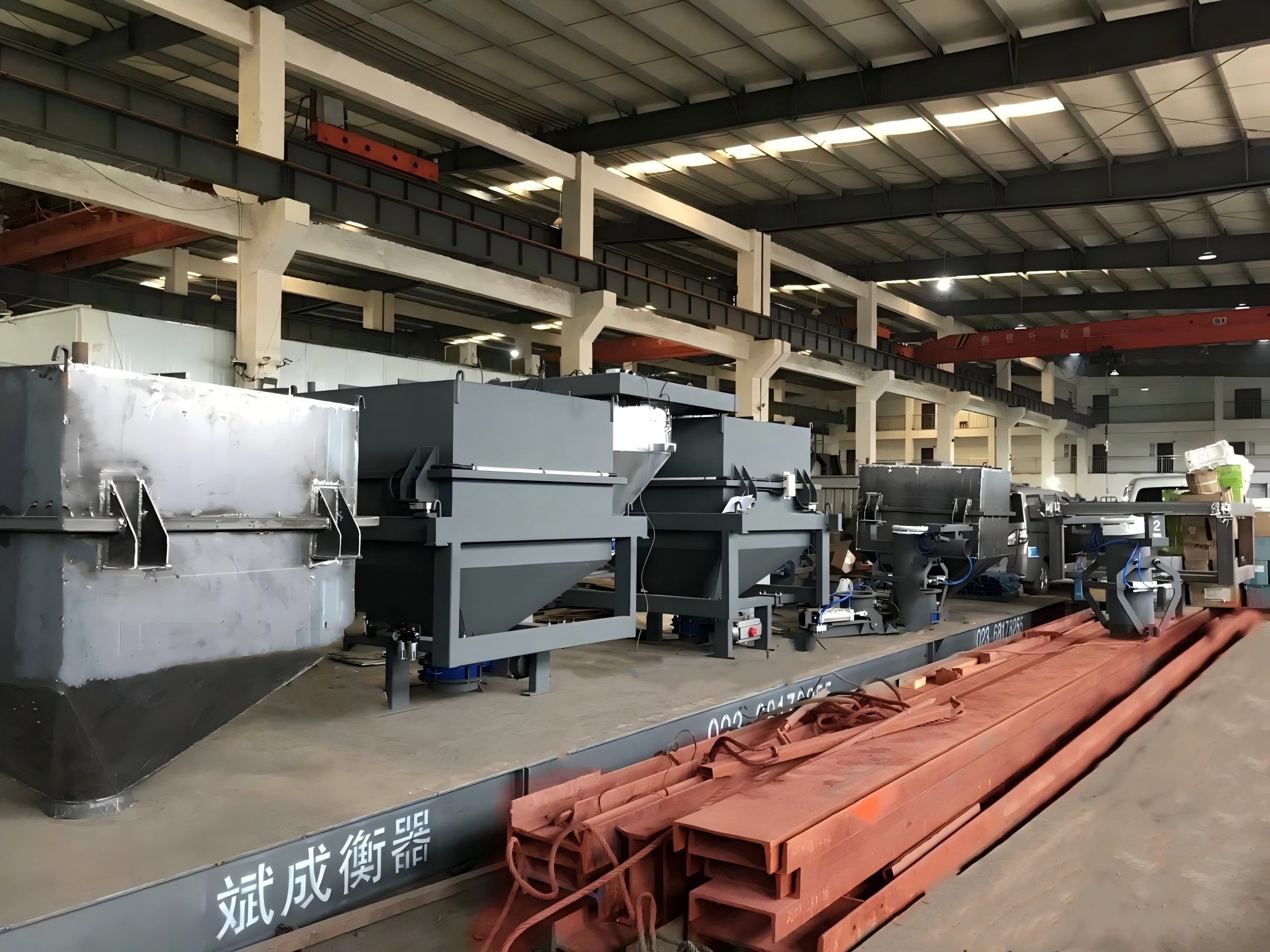

Bincen is a professional hopper scale manufacturer of mechanical and electrical equipment. It can customize hopper scales of different sizes. The charging range is 5L, 10L, 15L-500kg or more.

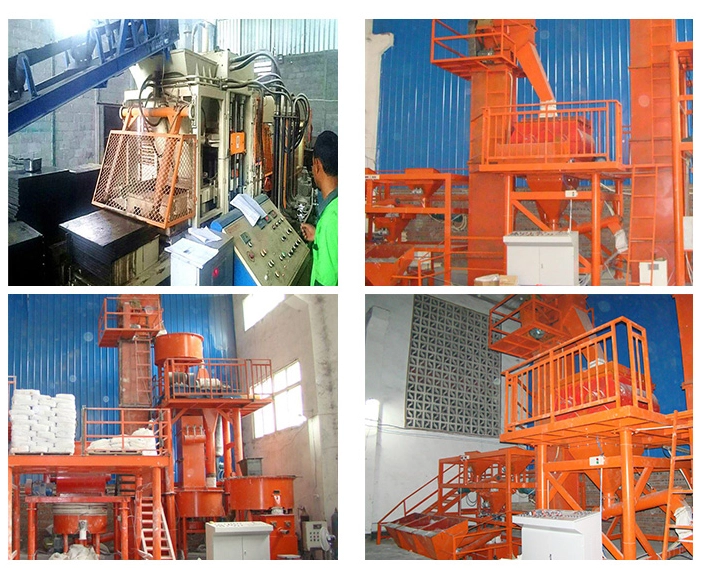

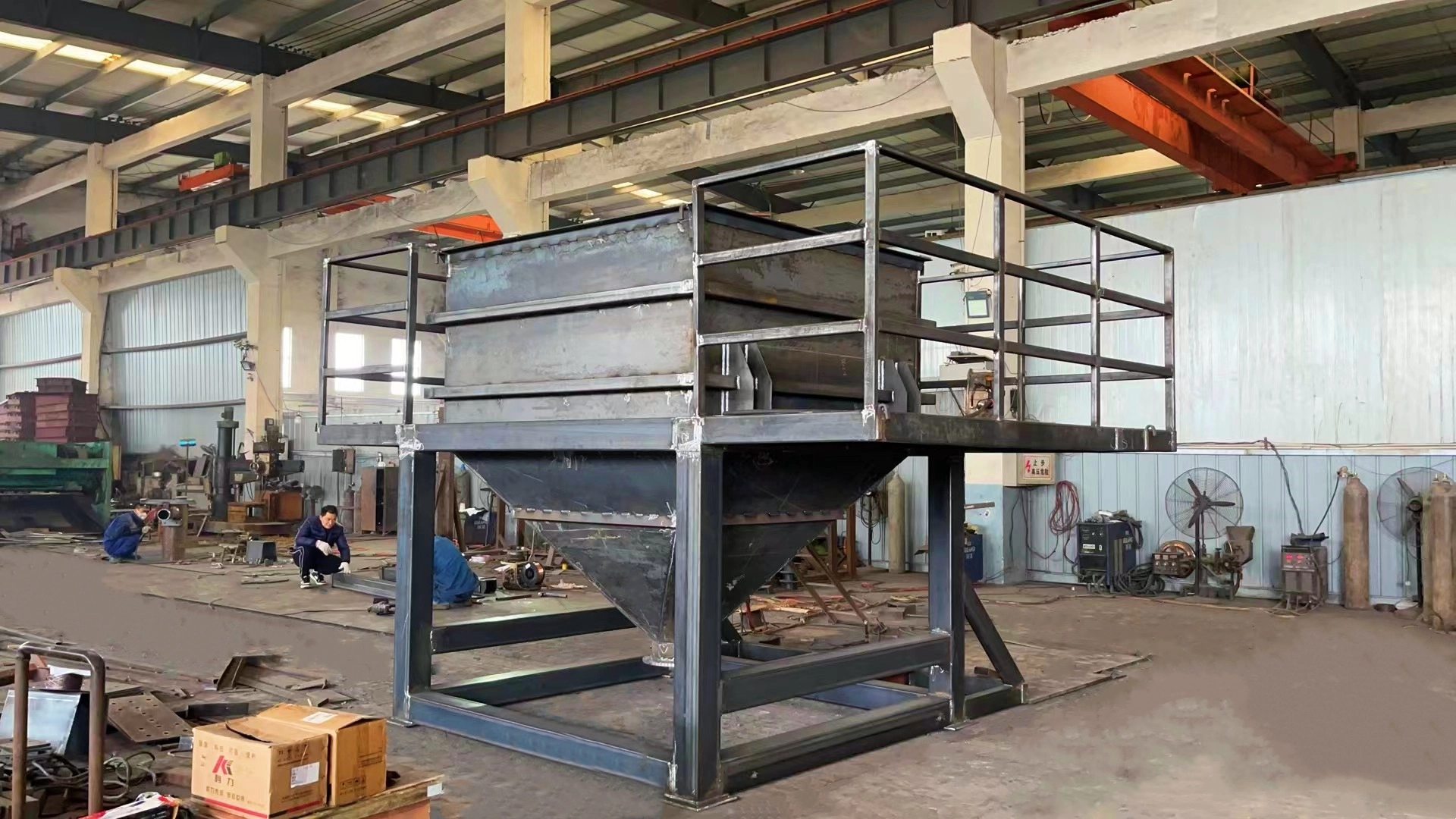

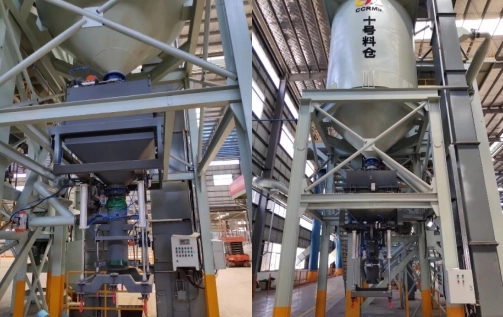

(1) 300kg hopper scale on production line

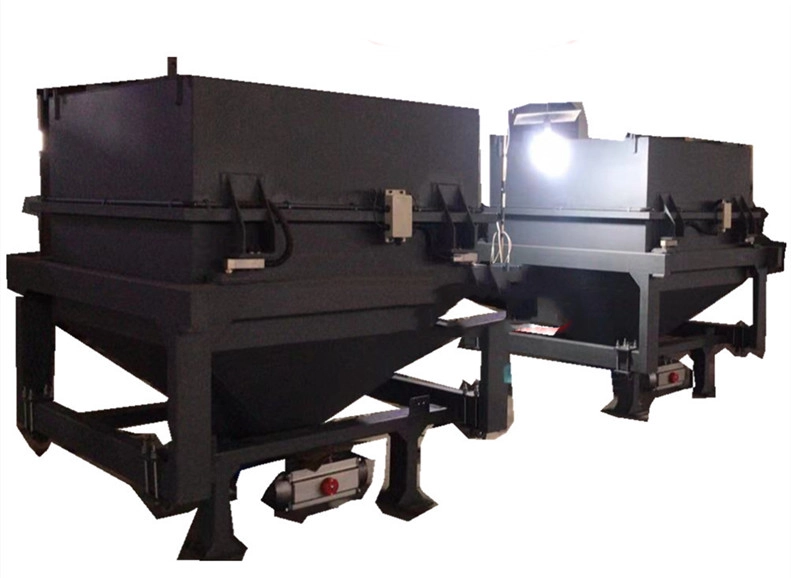

(2) 15L small weight hopper scale

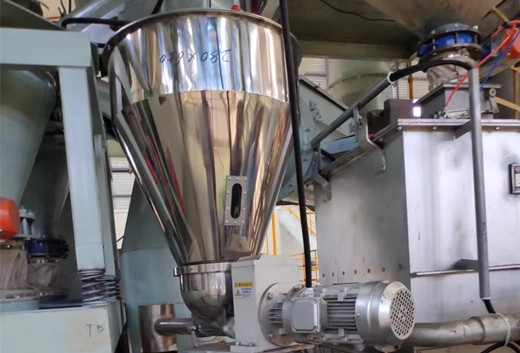

(3) Powder hopper

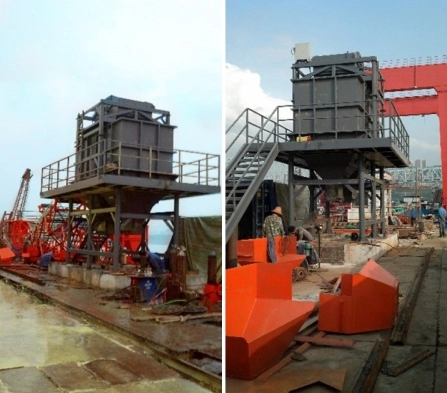

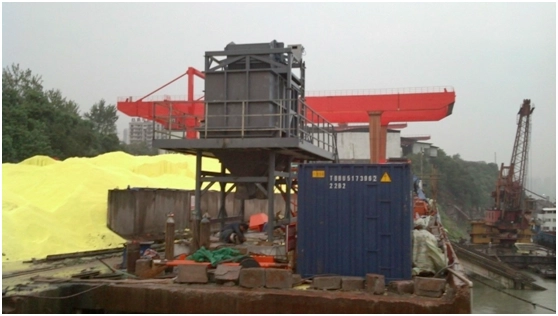

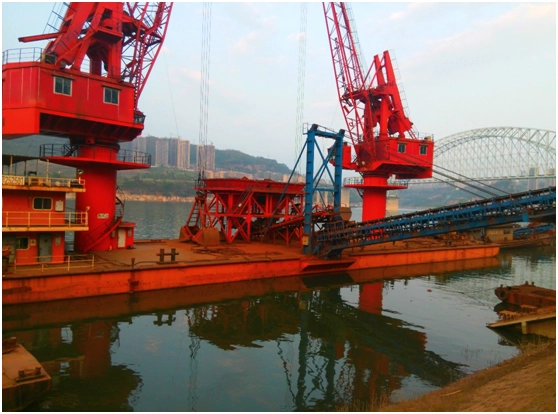

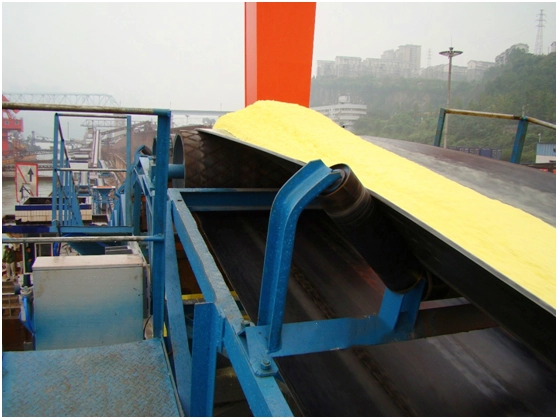

(4) Large port loading hopper weighing system
- Accurate position: The crane precisely positions the grab bucket on top of an electronic storage container for the scale.
- A fixed amount of feed: The scale bucket is fed a set quantity of material to cargo box (containers truck, etc. ).
- Accurate weighting and discharge: Ensures precise material transfer.
- Sheet of loading generation :Generates the loading sheet, which includes information such as date the time shipping unit name, ship name, material name, receiving unit and cargo box name number, location of loading and destination warehouse the weight of cargo boxes and loading operator.
- Storage of data and reportsStores data loaded to be used in statistical queries and printing reports using a computer-based weight management program.
Implementation Method

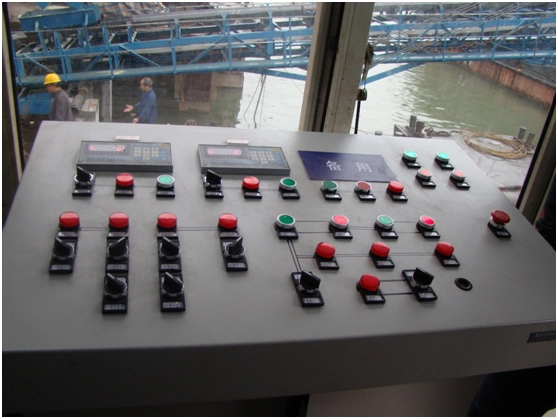

- Specialized Weighing Controller:
- Handles loading and status input/output.
- Manages interlock control.
- Computer System:
- Inputs container loading parameters.
- Downloads target load weight to the controller.
- Displays scale information (current weight, target weight, bucket count, door status, sensor status).
- Stores loading data, actual weight, and statistical information.
- Generates reports.
- Does not participate in direct control of the scale.
Why Choose Us?
Advantage 1: BINCEN specializes in the production of electronic scales, ingredient controllers, instruments, and complete automation equipment. Located in Chongqing, Southwest China, the company has a good industrial foundation and tradition. These products find extensive application in supporting construction machinery manufacturers. Notably, our weighing and batching controllers feature precise algorithms and dependable performance.
Advantage 2: Our company offers international-grade industrial automation control and testing equipment, industrial weighing systems, as well as sensor equipment and instruments. These are supplied to numerous renowned large and medium-sized industrial enterprises, including those in the aerospace industry in China. Our technology and products are renowned for their reliability and credibility.
Advantage 3: Our team of experienced engineers is dedicated to providing comprehensive sales service support. This includes expert guidance throughout the sales process, from pre-sales solution design to product selection assistance, as well as installation, debugging, and after-sales maintenance services.
FAQ
Why Choose Us
We have more than 20 years of experience in the production, R&D, and sales of weighing instruments, and we are still developing and innovating. Located in Chongqing, Southwest China, the company has a good industrial foundation and tradition. The company adheres to the good tradition of Seiko and meticulous work, strictly demands the quality of products, and wins customers with stable and reliable product quality.
