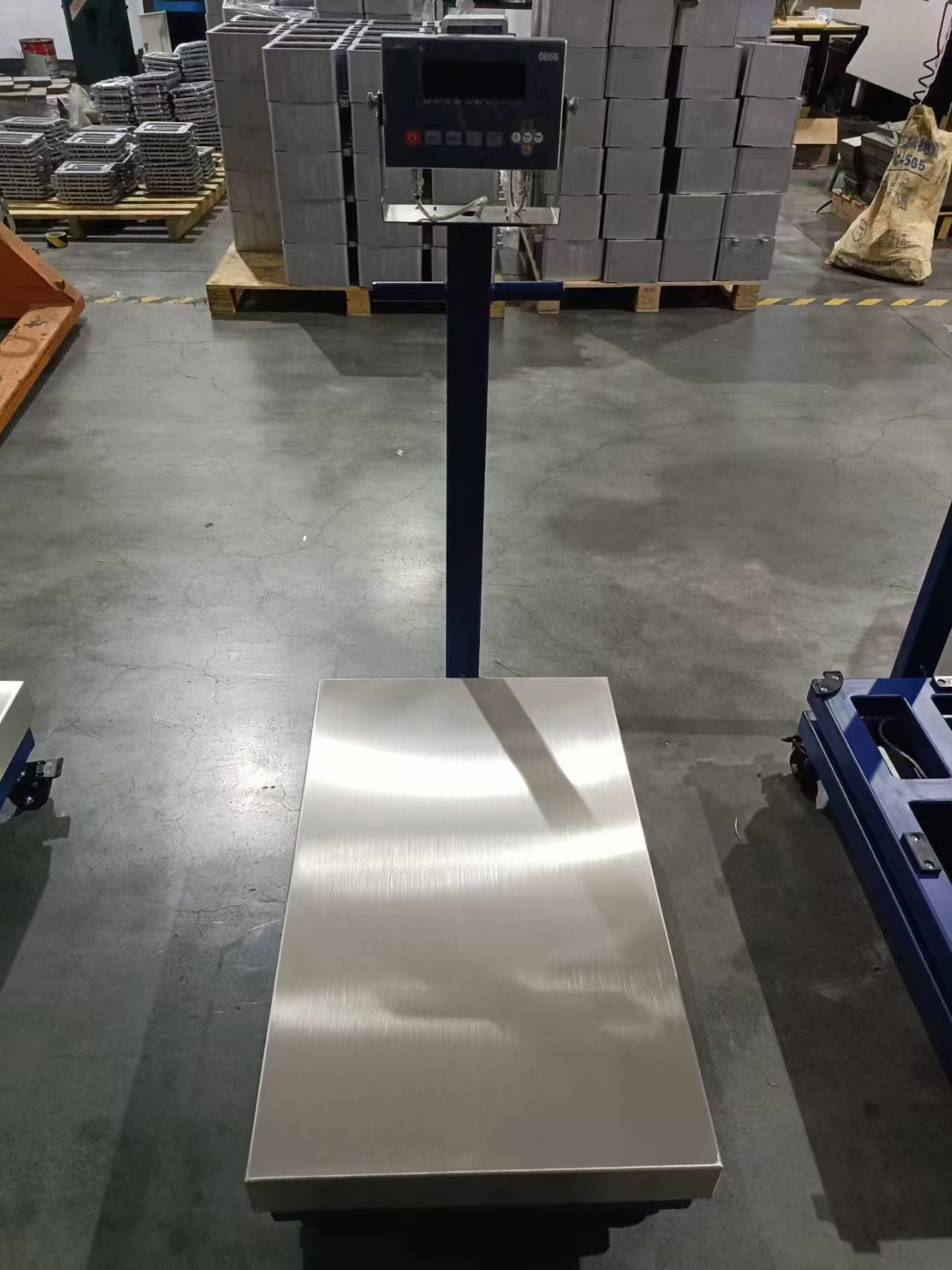

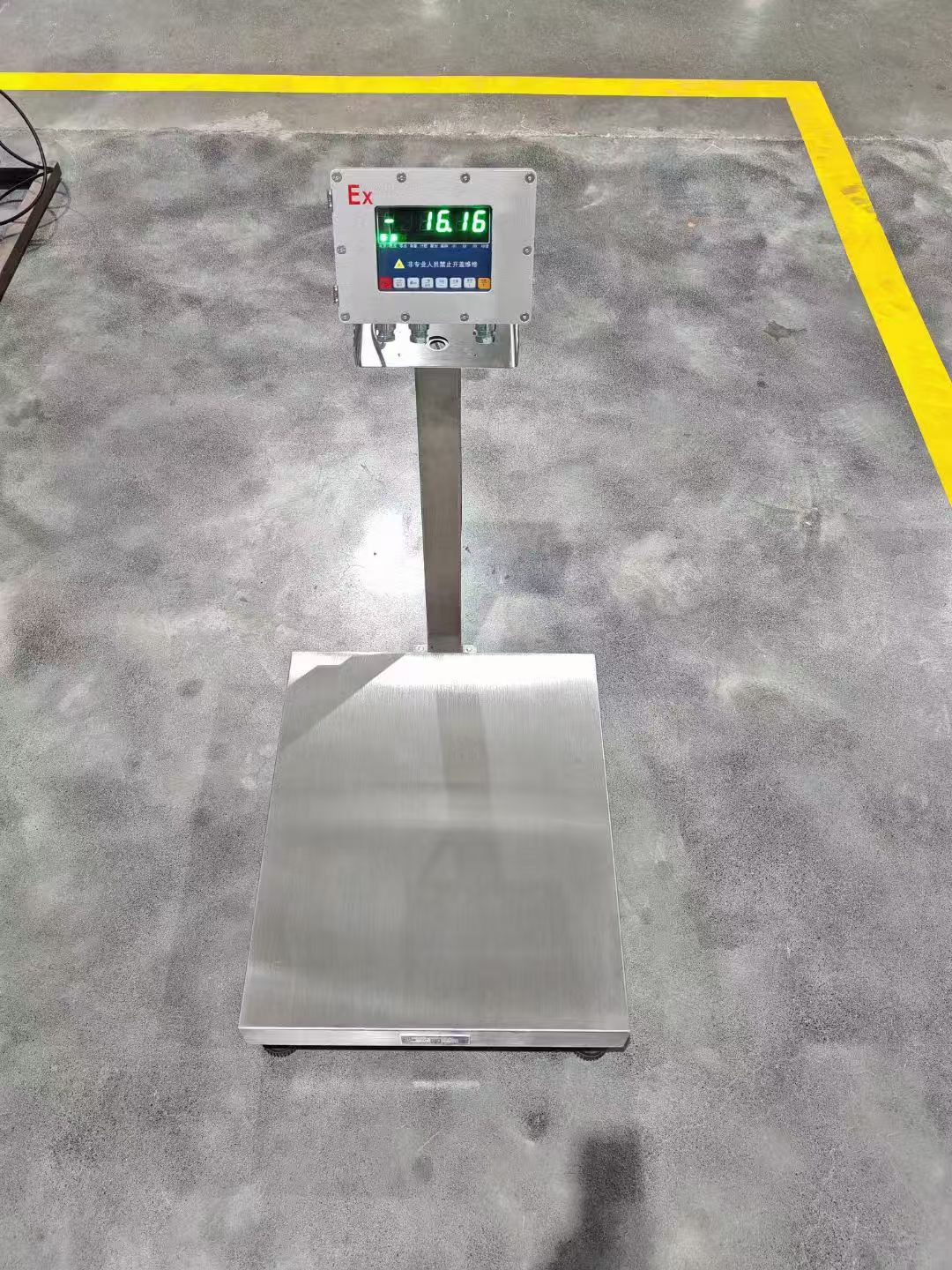

Industrial Platform Scale

Electronic platform scales are accurate in weighing, with high precision and fast response speed. They are easy to use, and the weighing data display is intuitive and eye-catching, avoiding various errors caused by perceived visual errors. Rational utilization of weighing software can achieve microcomputer management of weighing data and scientific measurement.

 Equipped with high-precision instruments of various functions: XK3190-A12, XK3190-A23P, XK3190-A35E, and multiple explosion-proof instruments. High technology, high stability, reliability, and high measurement accuracy; unique anti-drift and creep compensation proprietary technology; RS232 communication interface, with customizable special functions. Can achieve bus communication with PC, PLC, and DCS; standard configuration includes RS232, RS485, and supports MODBUS RTU communication.

Features

  •  Developed and manufactured for weighing small goods ranging from tens of kilograms to hundreds of kilograms;
  •  There is a wide variety of platform scales according to different usage scenarios, consumption levels, appearance structures, etc;
  •  Scale frame structures include: welded square tube structure, welded round tube structure, stamped structure, and aluminum die-casting structure;
  •  Scale platform (cover): 304 stainless steel, 201 stainless iron, carbon steel with plastic spraying, carbon steel with paint spraying, etc;
  •  According to user’s personalized needs: mobile platform scales, pole-free platform scales, waterproof platform scales, explosion-proof platform scales, anti-corrosion platform scales, etc;

Technical Specifications

 (Non-standard, customizable, full series, explosion-proof Ex type available)

Countertop dimensionsMaximum weighing capacity * Division value
300mm×400mm30kg～200kg*1g～10g
400mm×500mm60kg～300kg*2g～10g
450mm×600mm100kg～500kg*5g～20g
500mm×700mm100kg～750kg*1g～50g
600mm×800mm150kg～1000kg*20g～100g

Accuracy:

  • OIML Level III accuracy: 1/5000, 1/6000, 1/7500, 1/10000;
  • OIML Level II accuracy: 1/12000, 1/15000

Classification

1. Ordinary weight-based platform scale

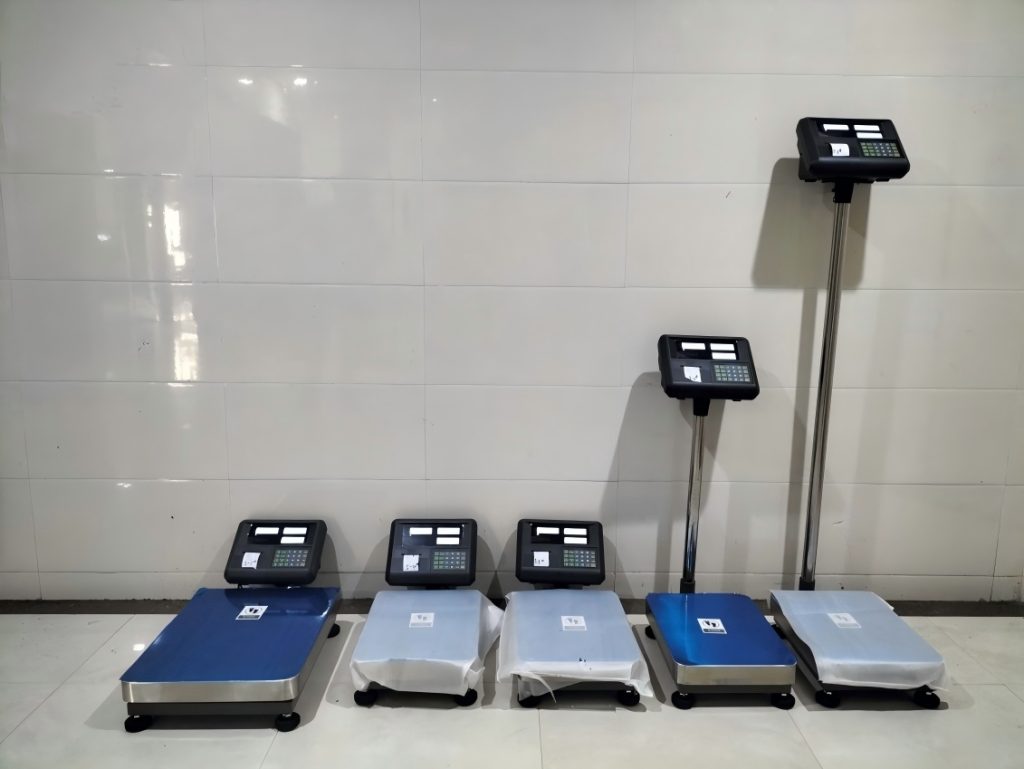

Ordinary weight-based platform scale 1

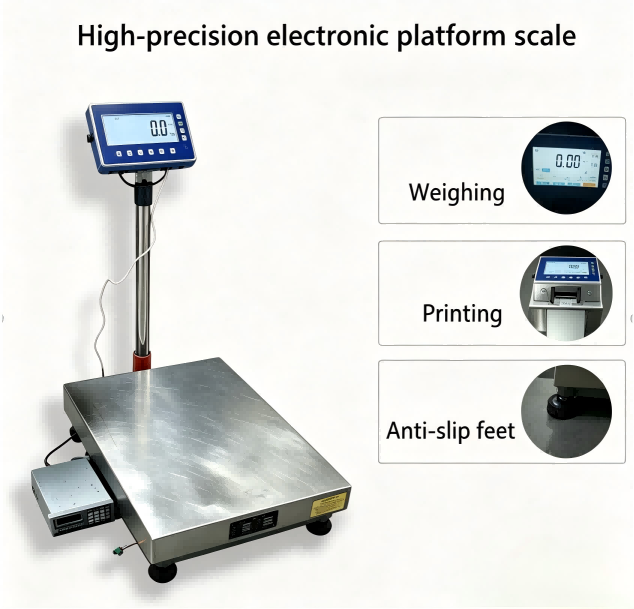

Ordinary weight-based platform scale 2

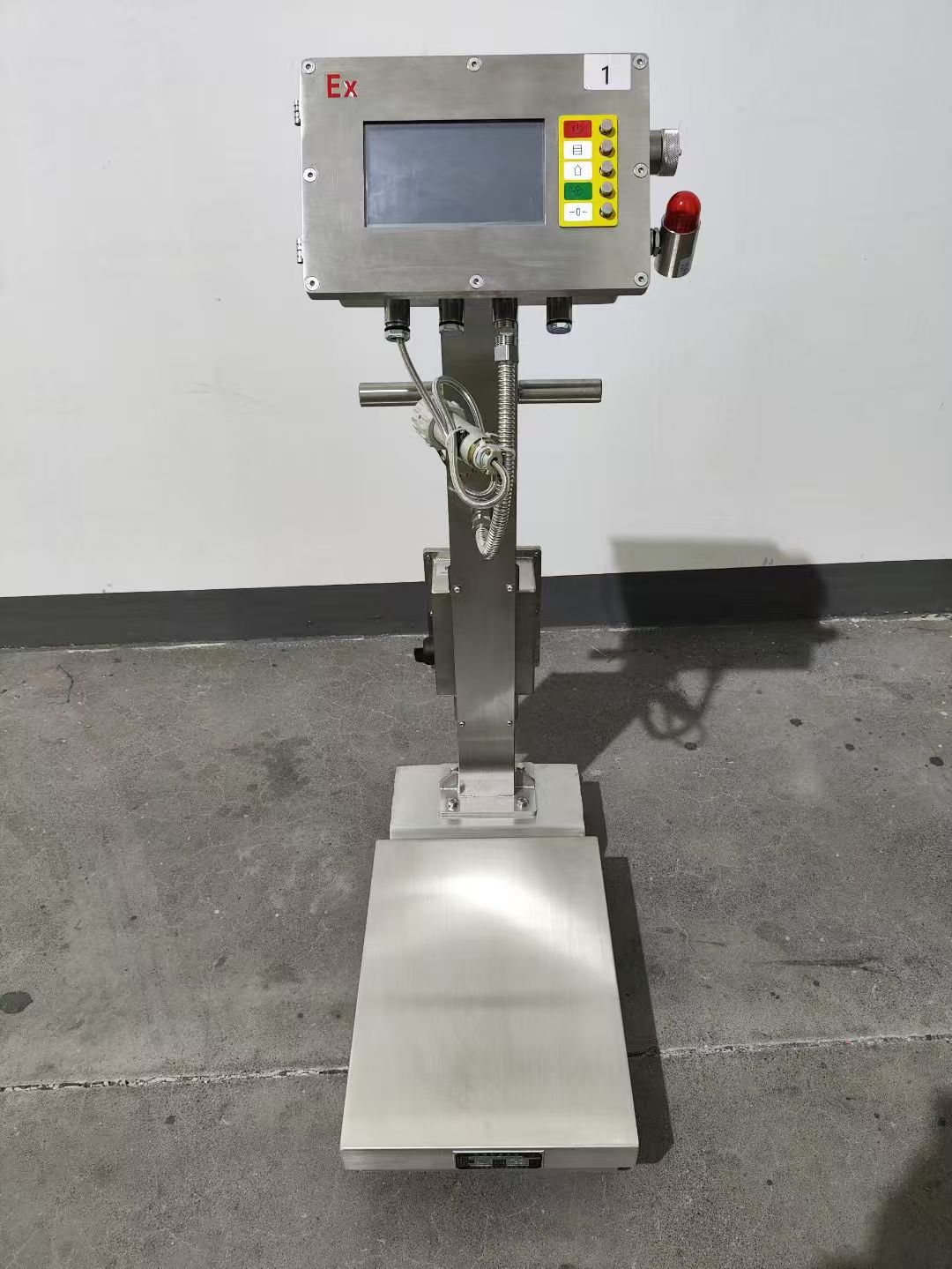

2. Explosion-proof platform scale

  • Dust-proof and explosion-proof electronic platform scale
    Dust-proof and explosion-proof electronic platform scale
  • Explosion-proof electronic platform scale with printing function

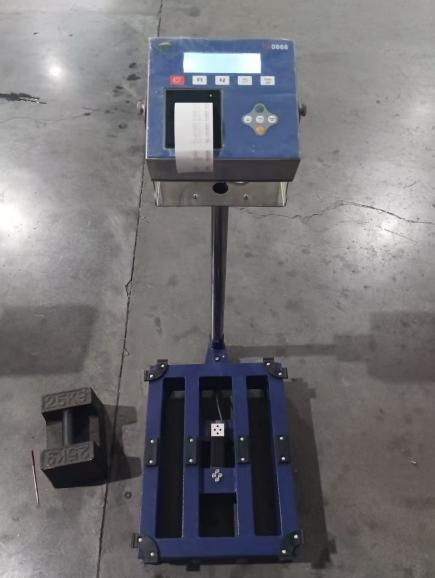

    Explosion-proof electronic platform scale with printing function
  • Gas and dust dual explosion-proof electronic platform scale

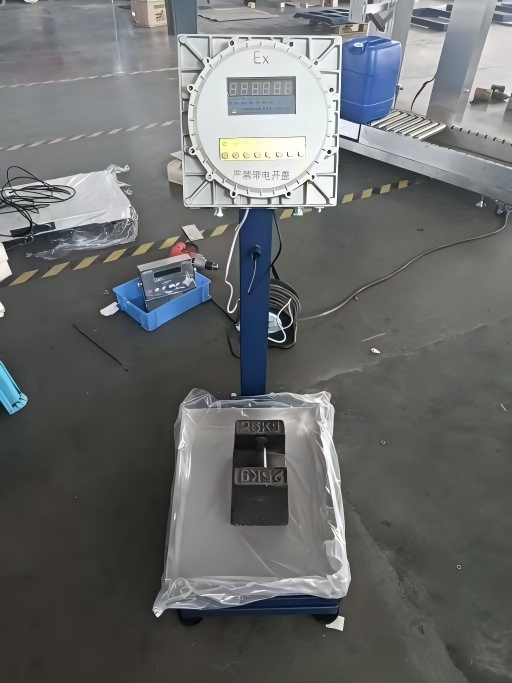

    Gas and dust dual explosion-proof electronic platform scale
  • Mobile platform scale

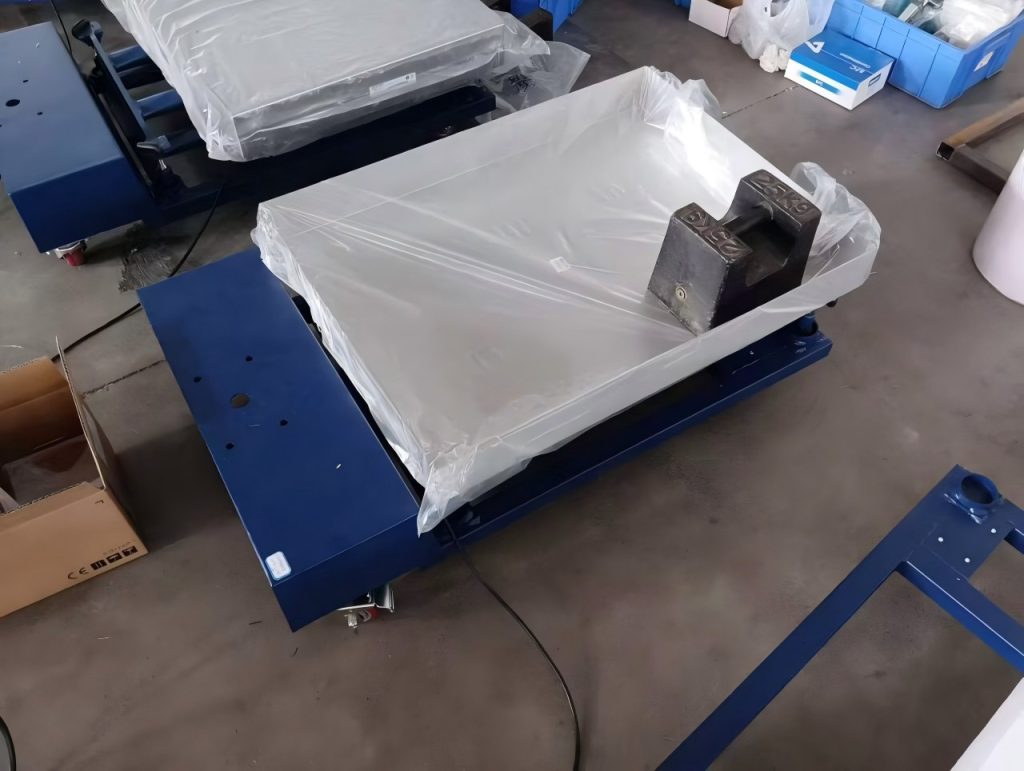

    Mobile platform scale
  • Intrinsically safe explosion proof electronic platform scale

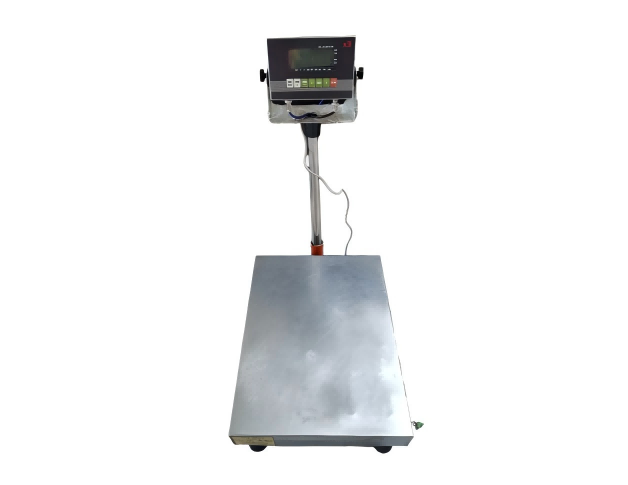

    Intrinsically safe explosion-proof electronic platform scale
