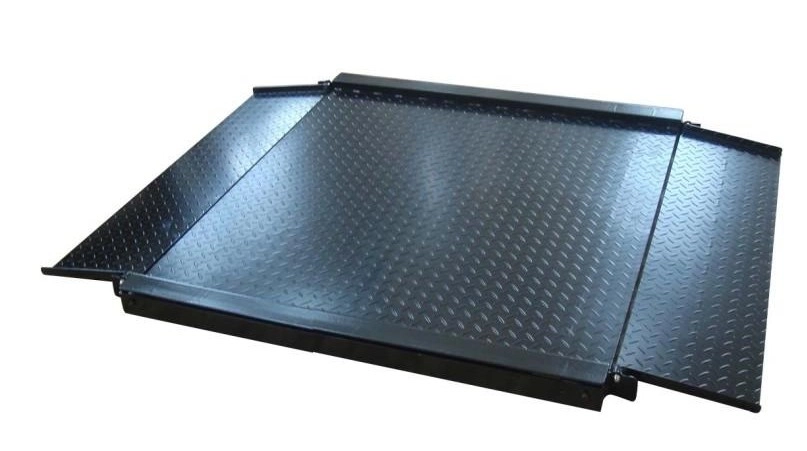

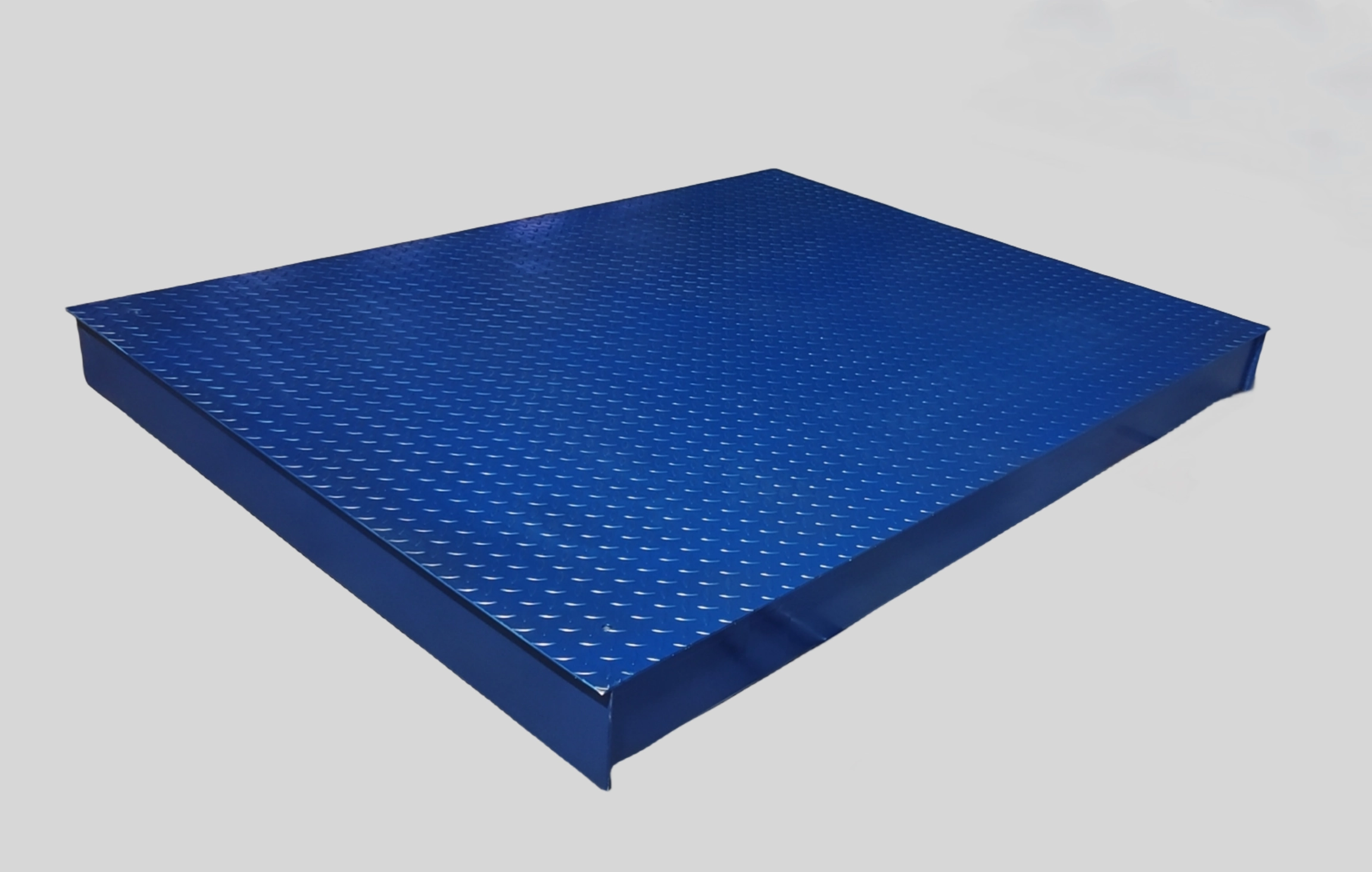

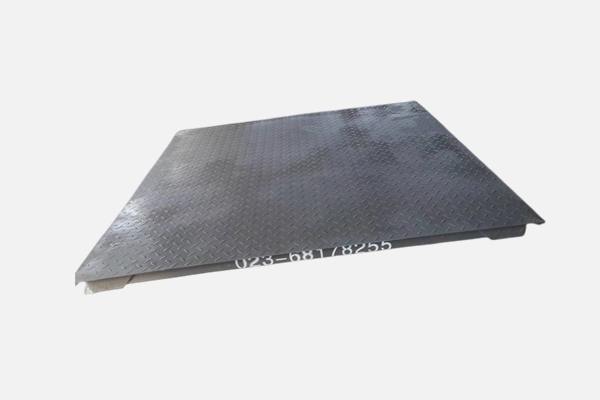

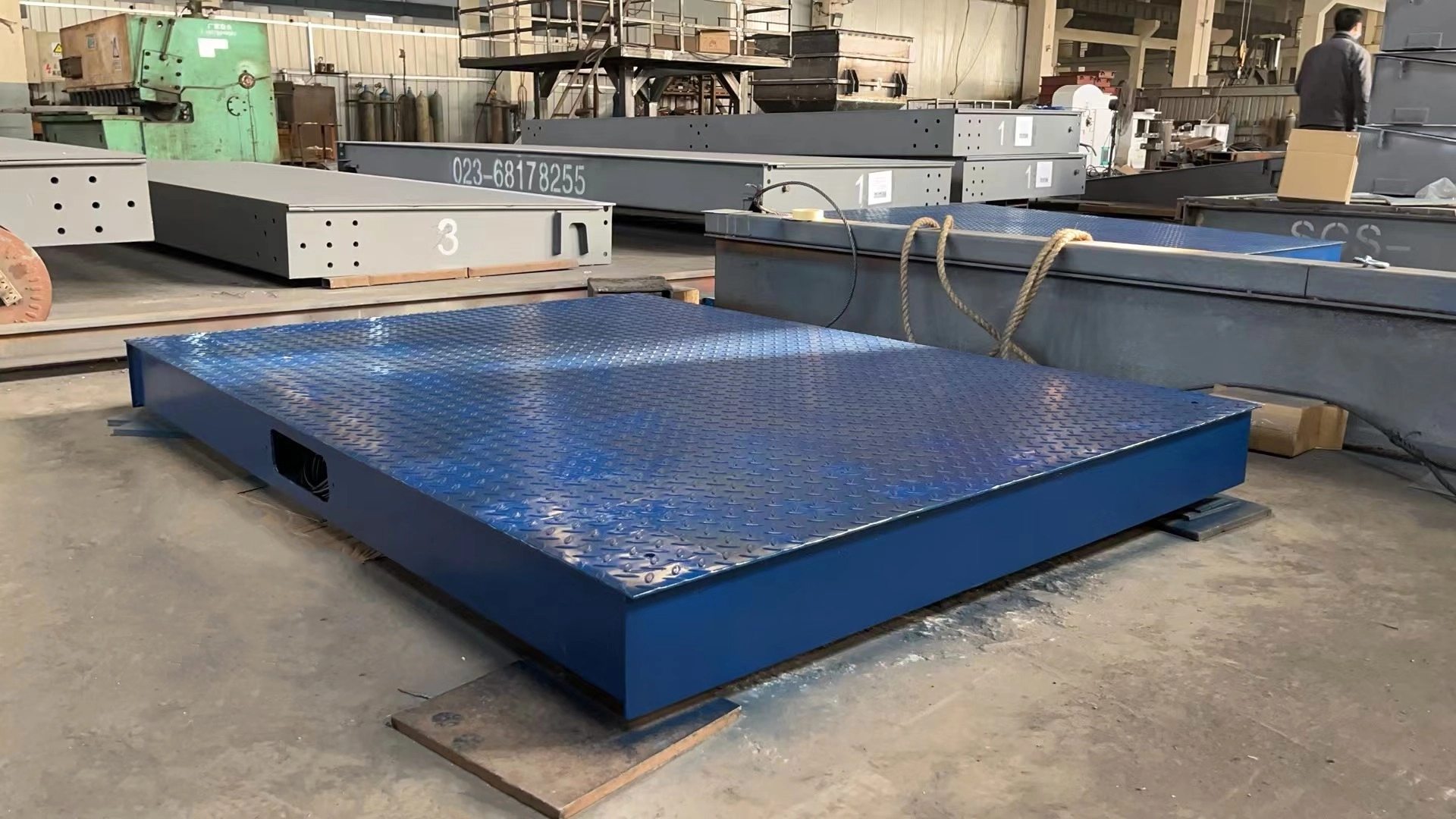

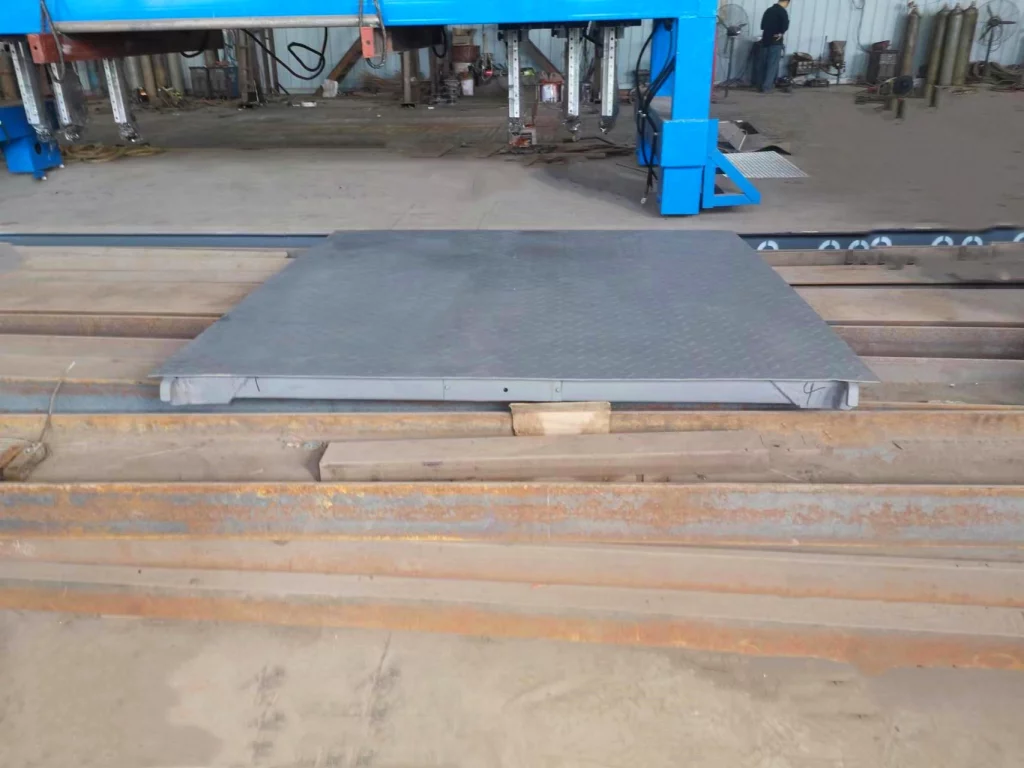

Small Weighbridge Platform Scale
- Weighing range：500KG~3t.
- Precision: OIML Ⅲ.
- Surface: Smooth and anti-skid.
- Material: High-quality steel Q235.
- Interface: RS232 interface for connection to other devices.

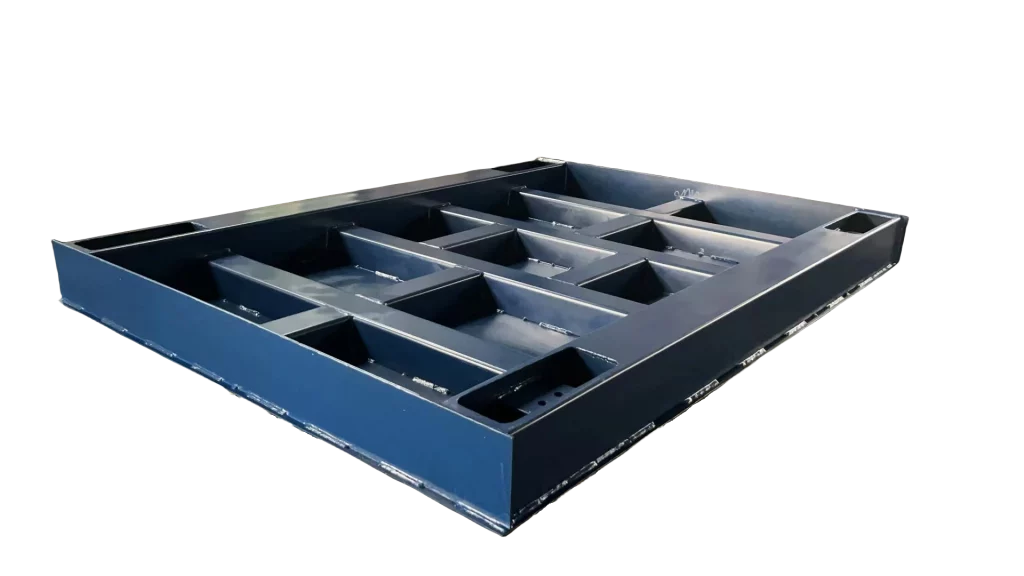

- Structure: Single layer weighing platform with 4 sensors.
- Installation: Requires high-strength cement ground or foundation pit.
A Bincen small Weighbridge Platform Scale is specifically designed to be used for measuring industrial goods and is extensively used in various industries, including logistics chemical, agricultural fertilizers. The scale is able to be customized to meet the requirements of the customer and requirements, such as health, chemical and explosion-proofing standards.
Made of high-quality Q235 steel The sturdy structure of the platform ensures precise weighing. It has an assortment of 500KG up to 3 tons, and an accuracy level that is comparable to OIML III. The platform is smooth and non-slip with an RS232 interface that allows for quick and easy connectivity with other equipment. The single-layer weighing platform has four sensors that require installation on a strong cement ground or foundation pit. This provides an efficient solution to your weighing requirements.
Specification
| Weighing range | 500KG~3t |
| Precision | OIML Ⅲ |
| Resolving power | 3.000e, 6.000e, 10.000e, < 15.000d, <30.000d, <60.000d, > 60.000d, > 10.000e |
| Scale body material | Carbon steel and stainless steel materials are optional; Flat and checkered plate panels are optional |
Features
- Surface: Smooth and anti-skid.
- Structure: Solid.
- Material: High-quality steel Q235.
- Finish: High-quality alkyd environmental protection paint for rust and corrosion resistance.
Function
- Basic functions: Zero setting, peeling, and accumulation.
- Interface: RS232 interface for connection to other devices.
- Structure: Single layer weighing platform with 4 sensors.
- Installation: Requires high-strength cement ground or foundation pit.

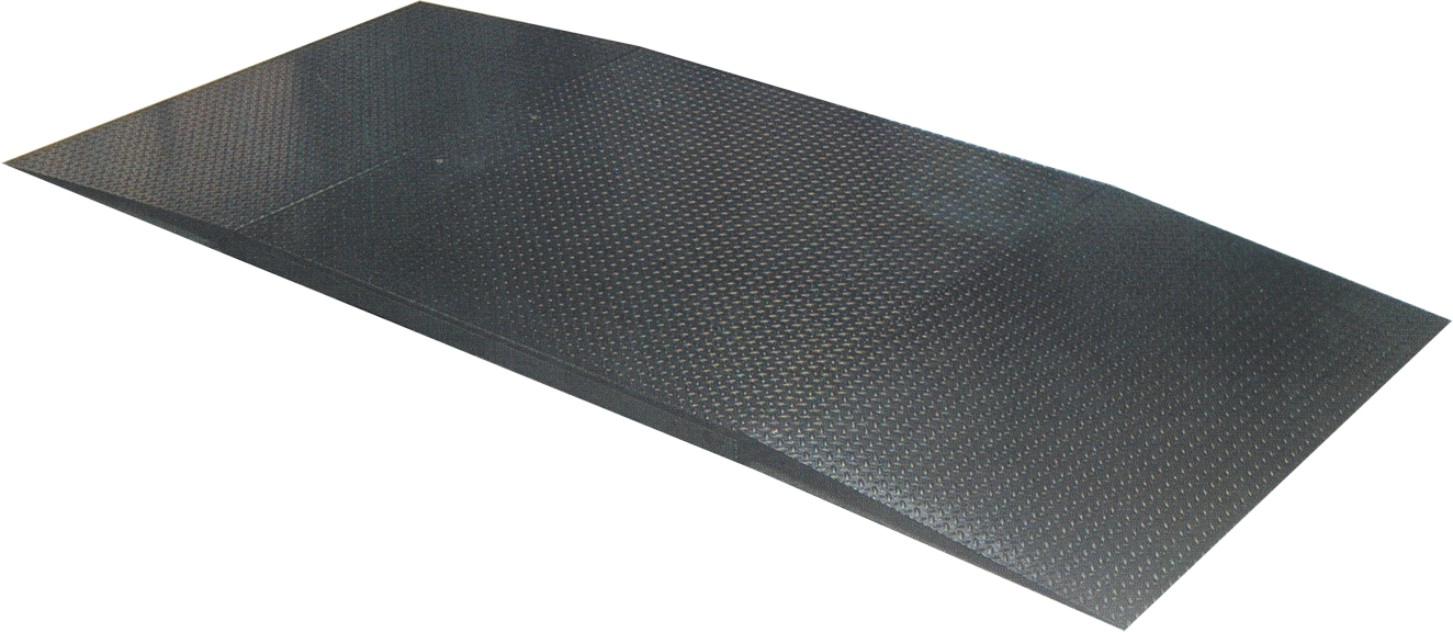

- Optional features: Steel slope approach, printer, large screen, computer.
- Accuracy: With a high-precision sensor and weighing instrument, accuracy can be 1/5000~1/15000.
- Applications: Factory review, measurement of valuable materials, accurate process weighing, and standard weighing scales.
Components of a Small Floor Scale

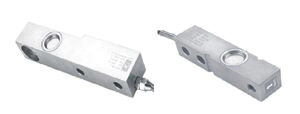

(1) Load Cell
- Protection grade: IP67, IP68, IP69K
- Brand: Select a Chinese brand or world-famous brand
(2) Weighing Display Controller
FS3198-A23P is a three-window LCD pricing instrument with a built-in micro printer, which applies to the static weighing system with 1~4 sensors.

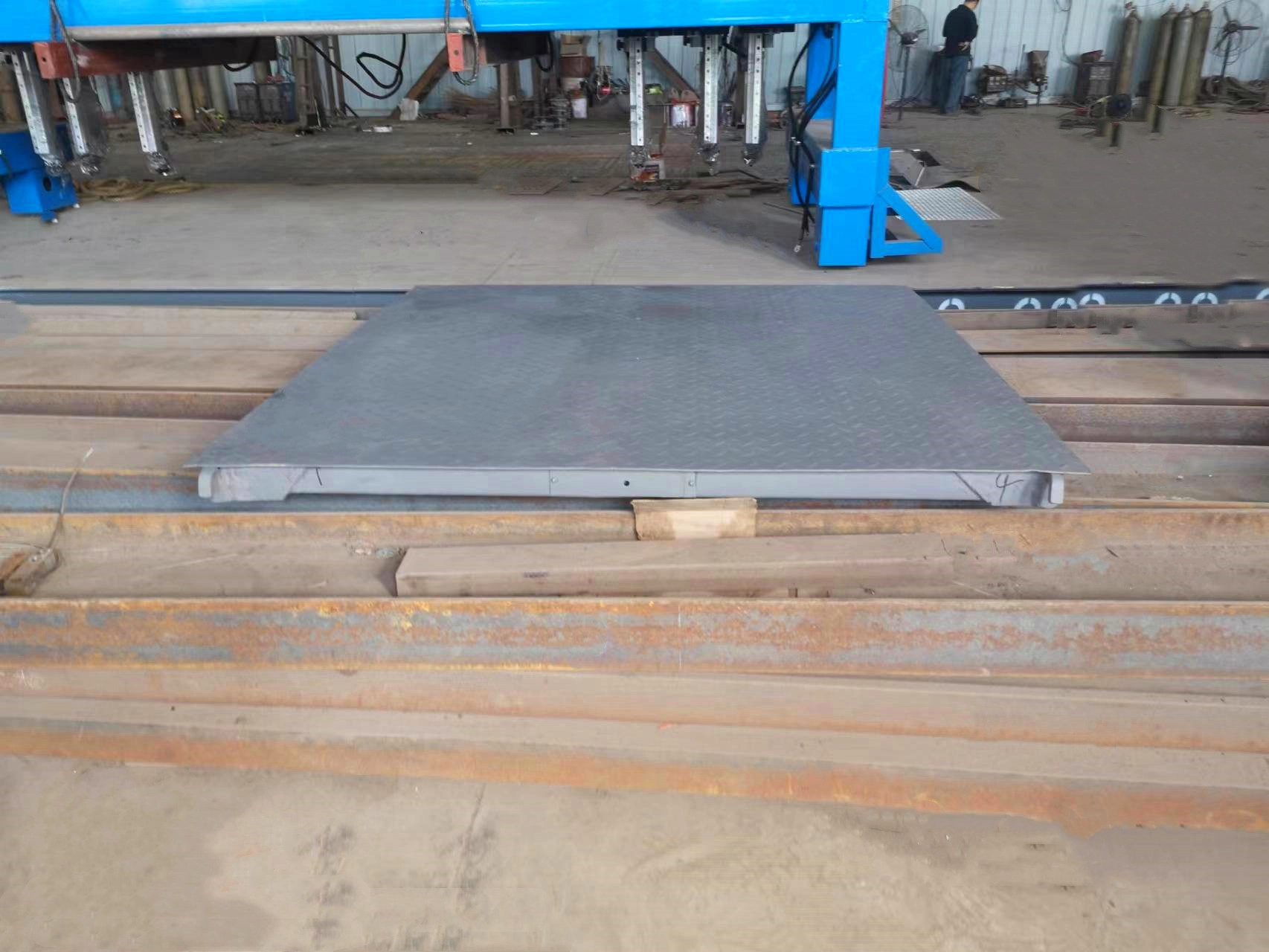

How to Install the Small Weighbridge Platform Scale
- The tiny weighbridge platform scale maker Bincen utilizes a modular design to allow for integration of the system. This method reduces the need for cranes with large capacities during installation which results in a economical and efficient installation for the client.
- Bincen offers a full technical support system that ensures the satisfaction of customers. The service includes technical advice along with installation advice and after-sales service. It is important to remember that the on-site support isn’t offered at your place of residence. However, the product’s installation videos are accessible for remote assistance.
Why Choose Us?
- Bincen specializes in manufacturing electronic scales, ingredient controllers, instruments, and complete automation equipment. Its range of products finds extensive application in supporting construction machinery manufacturers.
- Our company offers a variety of international industrial automation control and testing equipment, industrial weighing systems, as well as sensor equipment and instruments. These are supplied to numerous renowned large and medium-sized industrial enterprises, as well as aerospace industry entities across China. Our technology and product offerings are renowned for their reliability and credibility.
- We have more than 20 years of experience in the production, R&D, and sales of weighing instruments, and we are still developing and innovating. Our team of seasoned engineers is committed to providing comprehensive sales service assistance. This includes proficient pre-sales solution design, expert product selection guidance, meticulous in-sales installation and debugging support, and proactive after-sales maintenance service guidance.
Related Services
- Elevant Certification: CE
- Services: Customized, ODM, and OEM
- Warranty: Free replacement of damaged accessories within the warranty period.
