Three Speed Feeding Weighing Display Controller

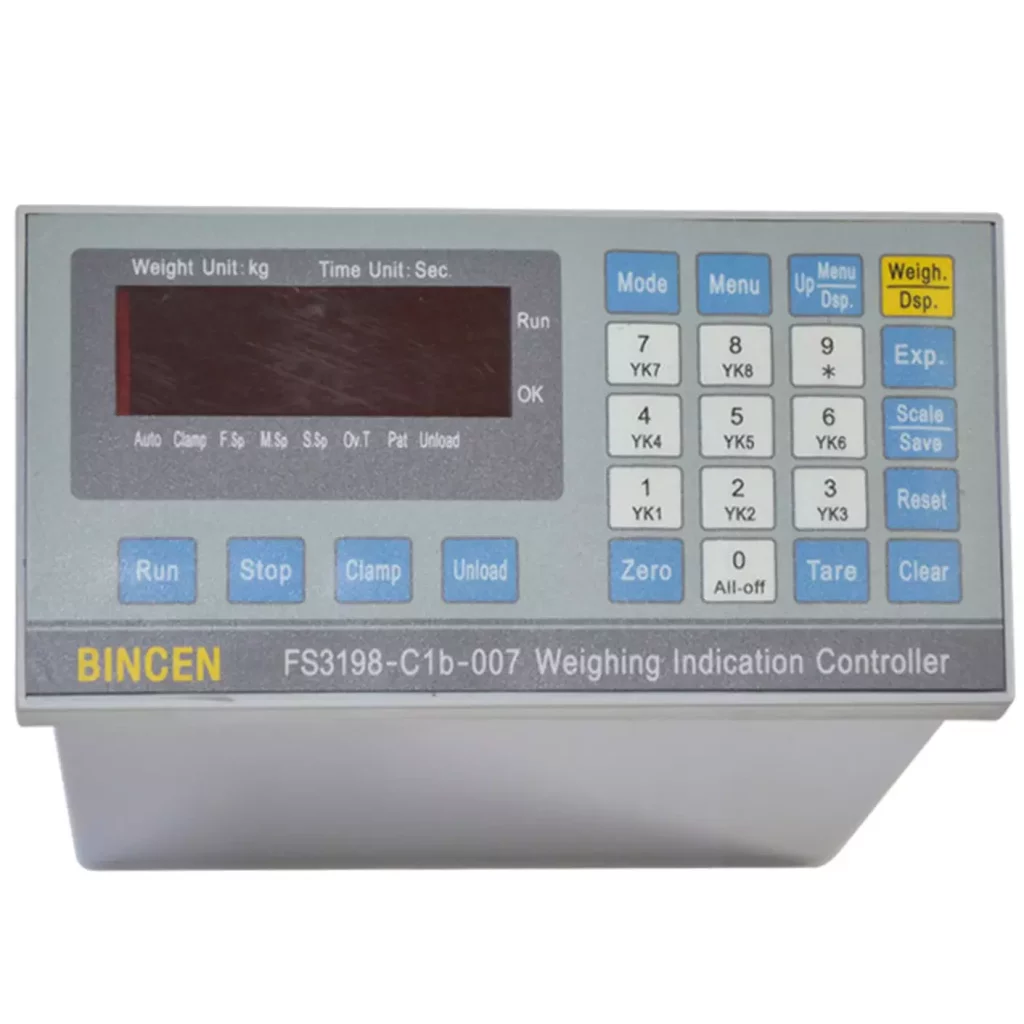

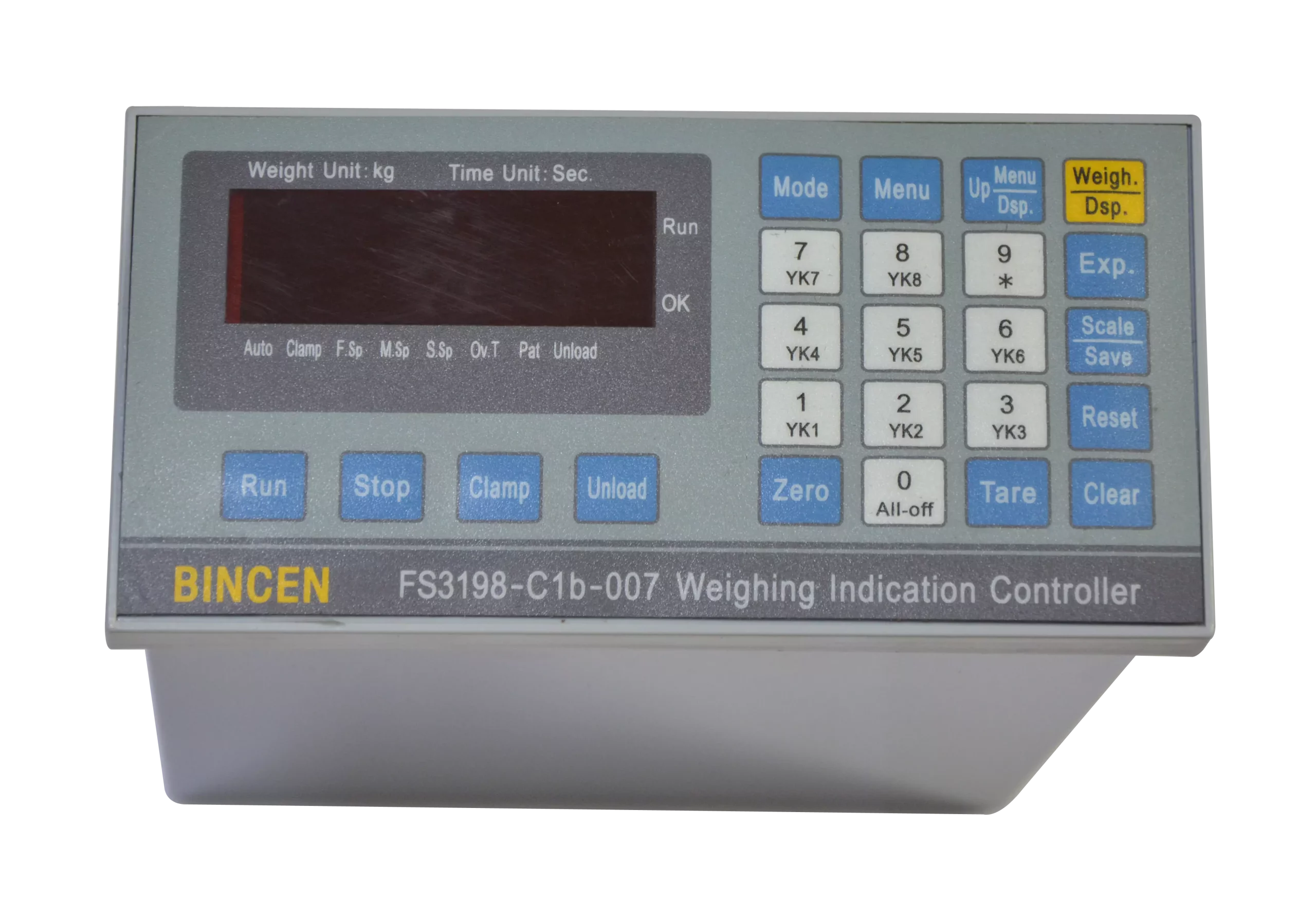

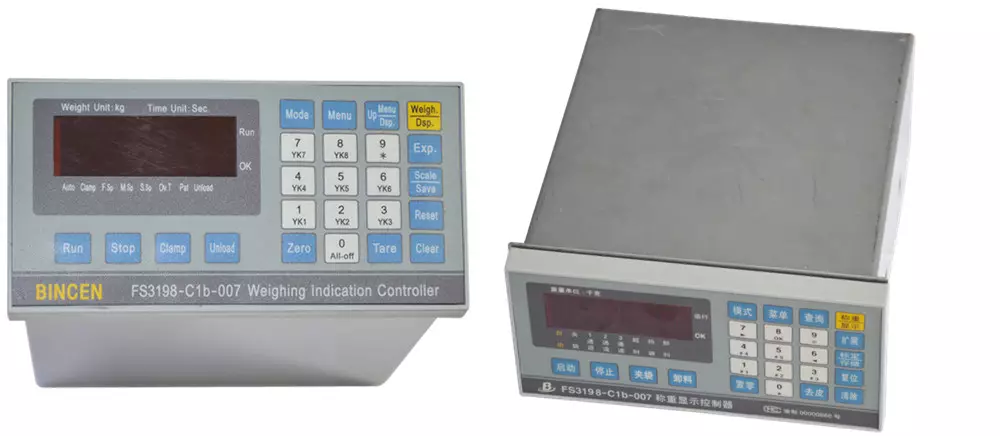

Bincen’s three-speed feed weighing display controller features a discharge timeout alarm and can be used for material discharge blockage control and automatic vibration discharge control. The FS3198-C1b-007 weighing display controller is primarily used for single-material multi-speed quantitative feed control, and can operate continuously or in single runs. It also features empty scale detection and automatic pre-feeding stripping functions, thereby improving your project efficiency.

Features

• High-precision analog output: Customizable 4-20mA, 0-10mA and 0-20mA signals with an accuracy of up to 0.01% F.S accuracy are provided as analog output signals.
• Multi-Speed Feeding: Accurate control over two or three feeding speeds, such as fast, slow, and replenishment modes.
• Automatic functions: Empty scale identification, automatic peeling and vibration unloading are all provided in one process.
• Unloading Control: Both manual and automated unloading with residual material control and timeout alarm is possible.
• Continuous or single operation: Our versatile operation modes meet various application needs.
• Even material distribution: To prevent silo material accumulation, automatic switching of slow-feeding doors prevents silo material accumulation.

Feeding Control System of Three Speed Feeding Weighing Display Controller

This system employs a two-speed or three-speed feeding mechanism. The primary goal is to ensure precise material feeding while optimizing efficiency.

Process:

1. Fast Feeding: Initially, two doors open to rapidly feed material. This phase continues until a predetermined fast-feeding threshold is reached.
2. Slow Feeding: Subsequently, one door opens for slower, more precise feeding. This phase is regulated by a slow feeding threshold.
3. Replenishment: If the material level falls below an acceptable lower limit, a single door automatically jogs to replenish the material.
4. Door Alternation: To prevent material segregation within the silo, the system alternates the slow-feeding door for each subsequent feeding cycle.

Post-Feeding Operations:

• Unloading: The system can be unloaded either automatically or manually by pressing the unloading key.
• Residual Material Control: A discharging threshold ensures that minimal material remains in the feeding mechanism.
• Timeout Alarm: A feeding timeout alarm triggers automatic vibration feeding to address potential blockages.
