Worn Belt Scale Rollers Causing Vibrations? Troubleshooting Steps to Follow
If your belt scale is vibrating, it is more than just an annoying noise—it may be a sign that the belt scale rollers are wearing out. Vibrations from worn belt scale rollers throw off measurement accuracy, shorten equipment life, and even create safety hazards for your team. The longer you ignore it, the more downtime and repair costs you will face. This guide breaks down simple, step-by-step troubleshooting methods to fix vibrations from worn belt scale rollers. No fancy expertise needed—just practical tips to get your belt scale back to precise, smooth operation fast.

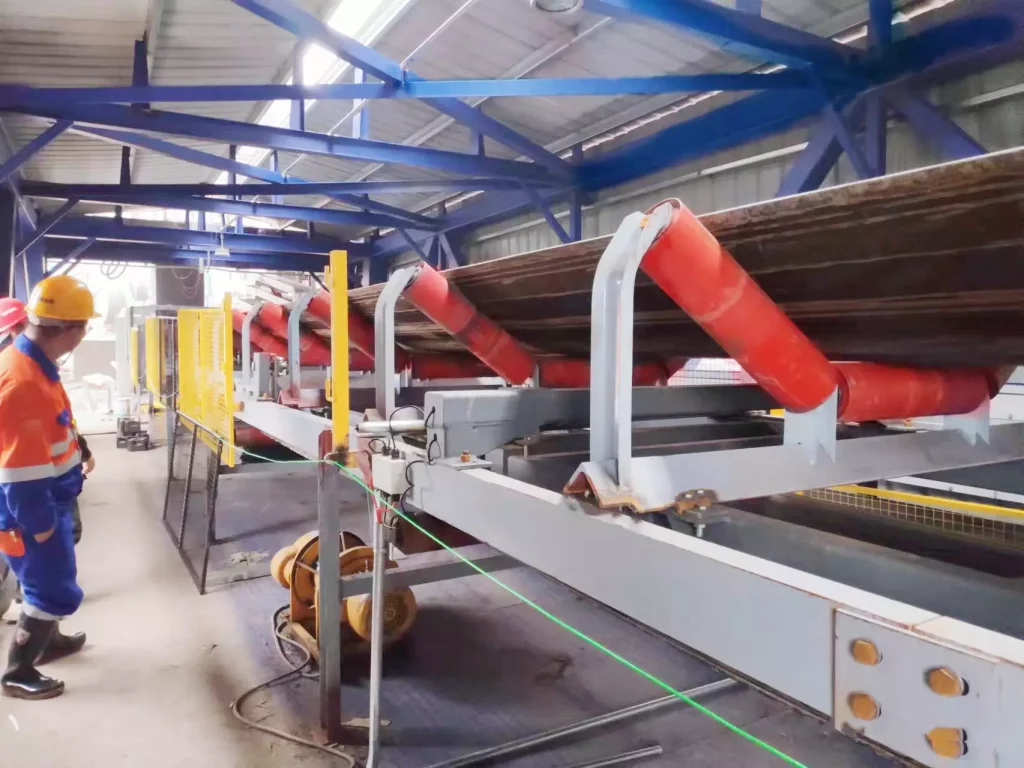

Why Worn Belt Scale Rollers Matter for Your Operation
Belt scales rely on steady, even movement to measure bulk materials accurately. When rollers wear out, vibrations ripple through the entire system—and the impact adds up:
Inaccurate readings: Vibrations make it hard for the scale to track material weight, leading to over/undercharging or waste.
Faster equipment wear: Vibrations stress other parts (like sensors and belts), forcing you to replace more components sooner.
Downtime risks: A severely worn roller can seize up, stopping your conveyor entirely—costing you time and money in lost production.
The good news? You can spot and fix worn belt scale rollers before they cause major problems. Let’s start with how to tell if vibrations are really from roller wear.
How to Identify
Not all belt scale vibrations are caused by worn-out rollers, so first you need to determine the cause. Here’s what to expect, what to listen for and feel, plus simple tests to try.
Common Symptoms of Worn Rollers Causing Vibrations
Worn belt scale rollers are known to cause specific symptoms that set them apart from other issues (like loose sensors or misaligned belts). Look for these:
- Irregular shaking, periodic shaking, or intermittent shaking: The belt might jiggle on and off, not just vibrate continuously.
- Weight readings that fluctuate: When it takes a regular, steady flow of material, your scale reflects it up or down; your load on its display changes as well.
- Metal sounds: A jitteriness that starts with ragged roller grinds, grinds down, and clanks in and out of your belt that just won’t stop banging over the belt or frame.
- Belt issues: The belt starts to drift (off-center), slip, or show uneven wear (like frayed edges).
Simple On-Site Tests to Confirm Worn Rollers
You don’t need any expensive tools to check, so start with these simple checks:
1. Visual Check: Disconnect the belt scale and examine the rollers. Worn ones may have dents, grooves, scratches, or uneven surfaces (compared to new rollers if you have them).
2. Manual Spin Test: Turn the roller by hand. It should roll smoothly—if it feels rough, sticky, or wobbly, the roller or its bearings are worn.
3. Vibration Check: Turn the scale back on (safely!) and lightly place your hand on the roller frame. A worn roller will produce a jarring, bumpy vibration (not a soft steady buzz).
4. Heat Check: Use an infrared thermometer to scan the roller bearings. Hot spots (above 150°F/65°C) indicate bearings are well worn and causing friction.
If you can see or feel any of these, worn rollers are 100% responsible for your belt scale’s vibrations.
Top 5 Reasons Worn Belt Scale Rollers Cause Vibrations
Understanding why rollers wear out helps you fix the root problem—not just the symptom. Here are the most common causes:
| Cause of Wear | How It Creates Vibrations |
| Normal mechanical fatigue | Years of use make roller surfaces uneven or “out of round”—so they bounce as they spin. |
| Bad bearings | Worn or dry bearings make the roller spin roughly, creating jolts and noise. |
| Poor installation/alignment | Rollers not lined up straight or loose in their brackets wobble as the belt moves. |
| Low-quality roller material | Cheap metal or thin rubber coatings wear fast, leaving rough spots that vibrate the belt. |
| Foreign damage | Rocks, debris, or impacts dent the roller—uneven surfaces cause vibrations when spinning. |
Step-by-Step Troubleshooting for Worn Belt Scale Rollers
Before you start, safety first! Always follow Lockout-Tagout (LOTO) rules: Turn off power to the belt scale, lock the switch, and tag it so no one turns it on while you work. Wear gloves, safety glasses, and steel-toe boots to protect against falling parts.
Step 1: Do a Quick Visual & Physical Check
Start with the basics to confirm worn rollers are the issue:
- Walk along the belt scale and look for rollers with visible damage (dents, scratches, or uneven rubber).
- Check roller brackets—if they’re loose, tighten them (loose brackets can mimic worn roller vibrations).
- Spin each roller by hand. If any feel rough or won’t spin freely, mark them for closer inspection.
Step 2: Use Simple Tools to Measure the Problem
You don’t need industrial equipment—basic tools will help you pinpoint wear:
- Vibration app/tool: Use a phone app (like VibSensor) or a handheld vibration meter. Hold it against the roller frame—readings over 0.15 in/s (3.8 mm/s) mean significant wear.
- Feeler gauge/straightedge: Place a straightedge across the roller’s surface. If there’s a gap over 1/16 inch (1.6 mm), the roller is out of round.
- Infrared thermometer: Check bearing temperatures. If a bearing is 20°F (11°C) hotter than nearby ones, it’s worn and causing friction.
Step 3: Narrow Down the Exact Issue
Once you’ve found worn rollers, figure outwhat’sworn (the roller itself or its bearings):
- If the roller surface is damaged (dents, grooves), replace the entire roller.
- If the roller surface looks good but spins roughly, the bearings are bad—you can replace just the bearings (cheaper than a new roller).
How to Fix Worn Belt Scale Rollers & Stop Vibrations
Once you’ve diagnosed the problem, here’s how to repair it — if you need a temporary fix or a full replacement.
Temporary fixes (for emergency use only)
If you can’t halt production immediately, consider using these temporary fixes (don’t make use of them longer than 1–2 days):
Slow down the conveyor: By slowing the conveyor down 10–15%, vibration is decreased (don’t stress this as it will affect the weight readings for a while — adjust afterward).
Adjust roller orientation: Gently loosen the bracket bolts and tap the roller into a straighter position (use a level to check).
Clean roller: Wipe all built-up material off with a damp cloth (turn off the scale first!) — fixing vibrations due to uneven material buildup.
Warning: They’re not fixing worn rollers for good — they just buy time. If necessary, replace worn parts as quickly as you can.
Replacement of Full Roller: A Step-By-Step Approach
It’s easy to replace a worn belt scale roller — do the following:
1. Get pieces/tools:You should have a new roller (size and material matching and bearing type similar to the same as your old one), a wrench set, socket set and new bolts if the old ones are rusted.
2. Remove the old roller:
- Loosen the bolts on the roller’s end brackets (support your roller using one hand, so it doesn’t fall).
- Slide the old roller out of the brackets — be careful, heavy (ask them for help if you need it).
3. If they’re bent, straighten them (or if damaged, replace them).
4. Install the new roller:
o Slide the new roller into the brackets; make sure it’s lined up straight (use a level to confirm).
o Tighten bracket bolts to manufacturer’s torque levels (typically 25 to 35 ft-lbs — see the manual of your scale).
5. Test it: Spin (by hand) the new roller, and check it is turning nice and smooth. Switch on the scale (safely!) and inspect for vibrations — they should be absent.
Replacement of the bearings (if the Roller Surface is OK)
If all of the roller surface is intact and the bearings are bad, you will only replace the bearings:
1. Take out the roller (proceed to Step 2).
2. Remove the old bearings from both ends of the roller using a bearing puller.
3. To eliminate rust, clean the roller’s bearing seats with a wire brush.
4. Press fresh bearings into location (use a bearing press or tap lightly with a rubber mallet).
5. Add small amount of lithium grease to the bearings (don’t over-grease — overheating comes with it).
6. Reinstall the roller and test.
How to Calibrate Your Belt Scale After Fixing Rollers
Changing out rollers or bearings can throw off your belt scale’s accuracy—so calibrate the machines before full production:
1. Check belt tension: Make sure the belt is tight enough (not too loose, not too tight)—loose belts cause inaccurate readings.
2. Run a test load: Use a known weight (like a 500-lb bag of material) and run it through the scale. Compare the display to the actual weight.
3. Adjust the scale: Use the scale’s calibration button (or follow the manual) to match the display to the test weight.
4. Test again: Run 2–3 more test loads to confirm readings are consistent.
If you’re not sure how to calibrate, contact the belt scale manufacturer—many offer remote support.
Prevent Worn Rollers (and Vibrations) with Regular Maintenance
The best way to avoid vibrations from worn belt scale rollers is to catch wear early. Use this simple maintenance schedule:
| Frequency | Tasks to Do |
| Daily | Check for roller damage (visual scan) Listen for unusual noises Wipe off material buildup |
| Weekly | Spin rollers by hand (check for roughness) Tighten loose brackets Check bearing temperatures (infrared thermometer) |
| Monthly | Add grease to roller bearings (use manufacturer-recommended grease) Measure roller vibration (with a meter) Record findings in a log |
| Annually | Replace rollers that show even minor wear Inspect all brackets for rust/damage Full scale calibration |
Pro tip: Take photos of your rollers every month. Comparing photos makes it easy to spot wear you might miss with just a visual check.
Conclusion
Your belt scale should now run smoothly, with accurate readings and no more vibrations. If you still have issues—like vibrations even after replacing rollers—it could be a sensor or conveyor problem. In that case, reach out to a belt scale technician for a professional check.
Don’t let worn rollers slow you down—small, regular checks save big on downtime and repairs. Start with today’s visual inspection, and you’ll keep your belt scale working right for years.
