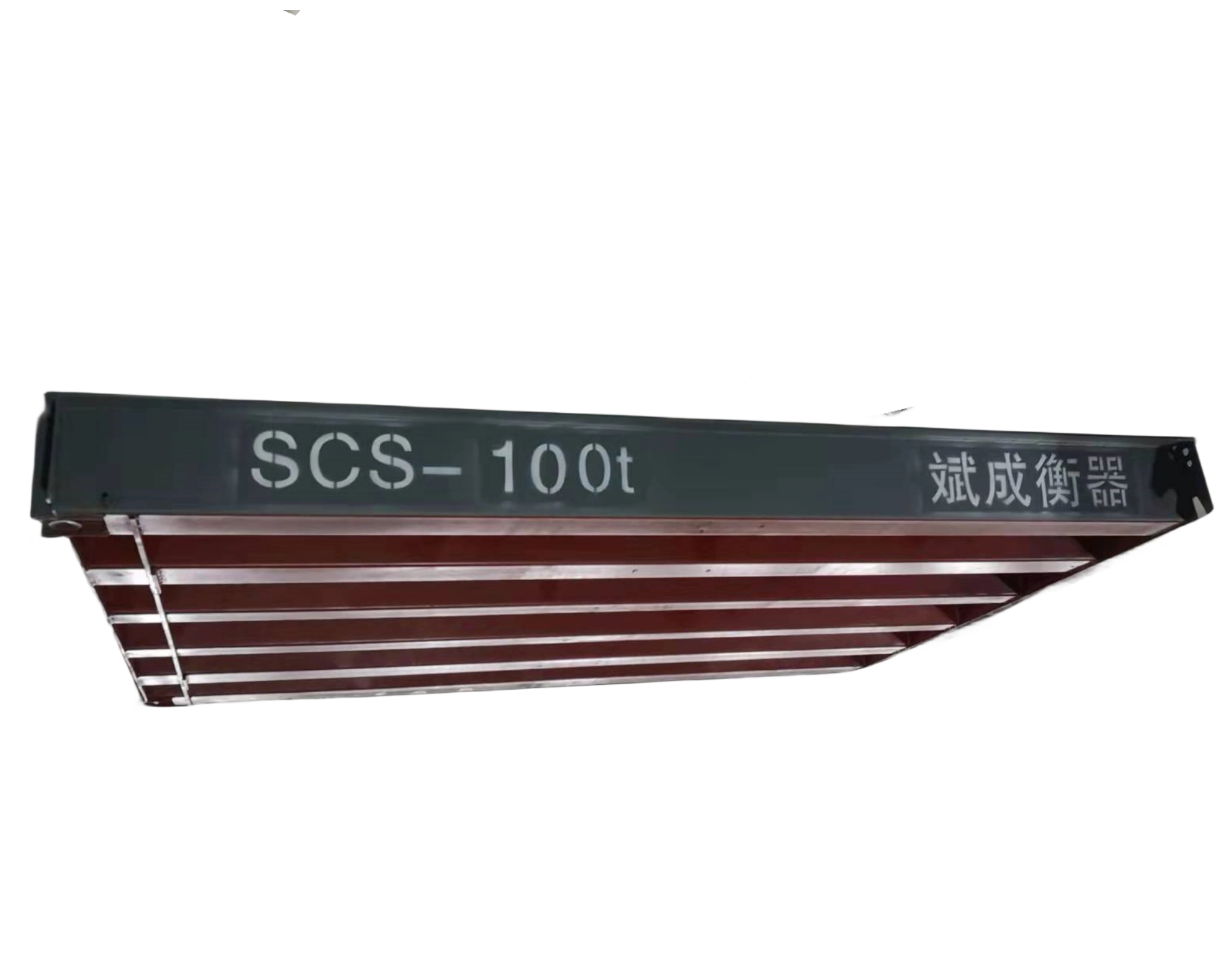

100 Ton Weighbridge

Max: 100t
Width: 3m,3.2m, 3.4m
Length: Can be customized

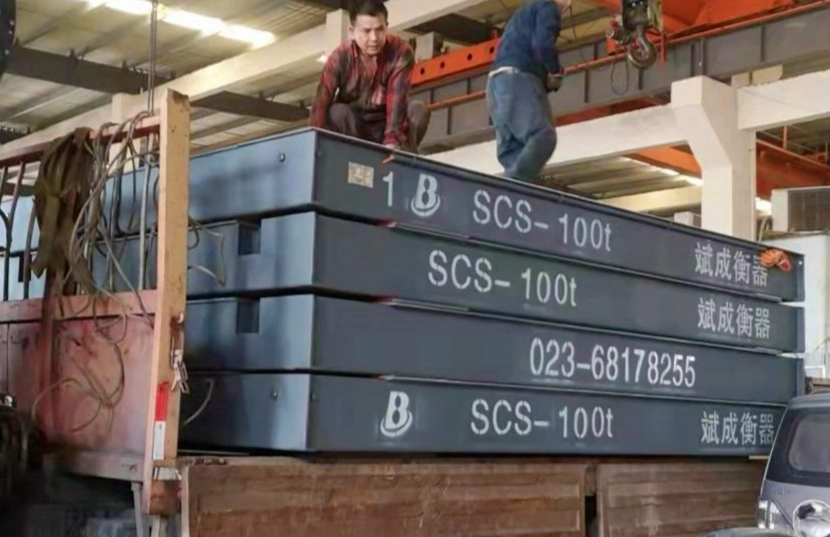

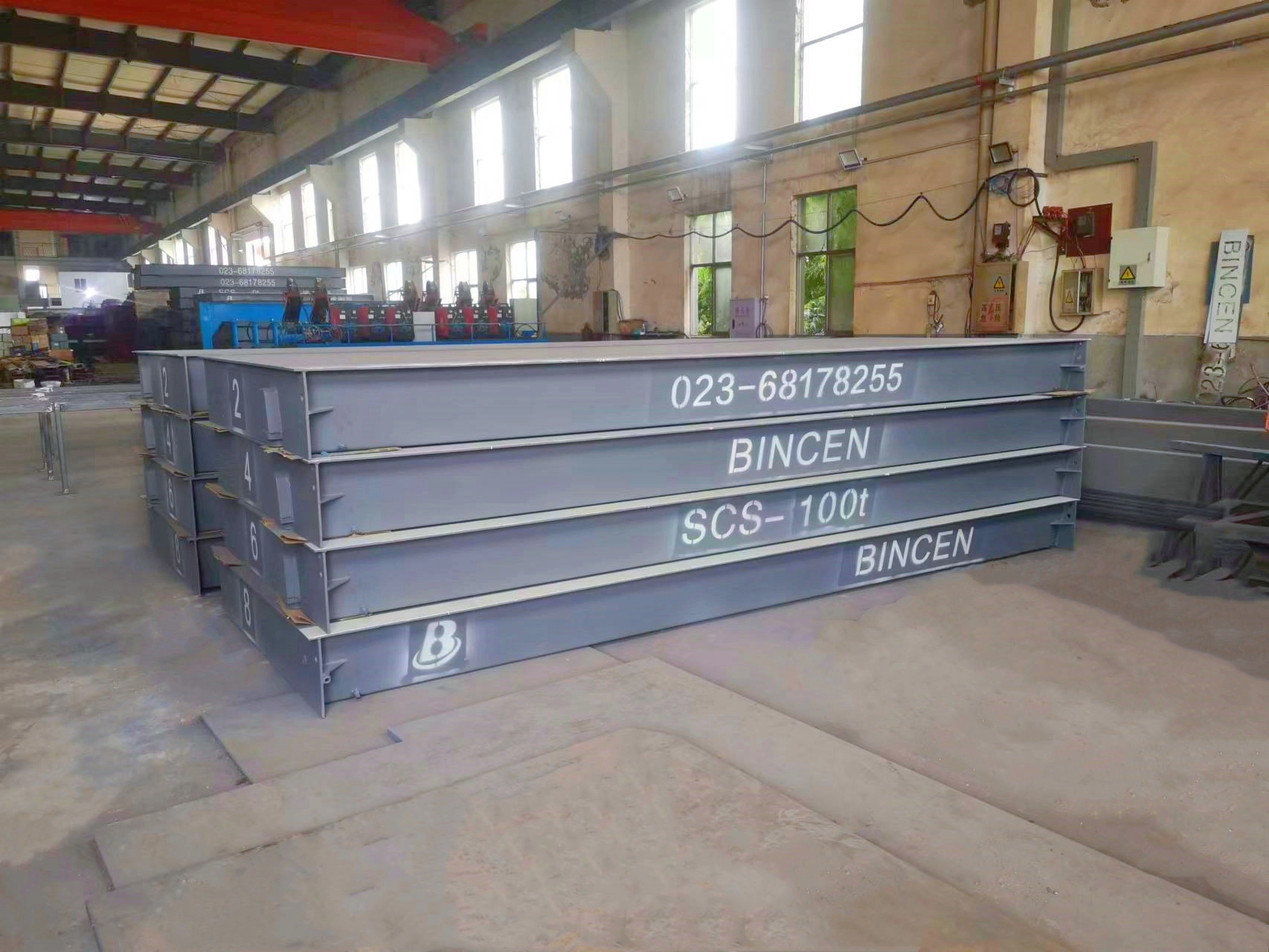

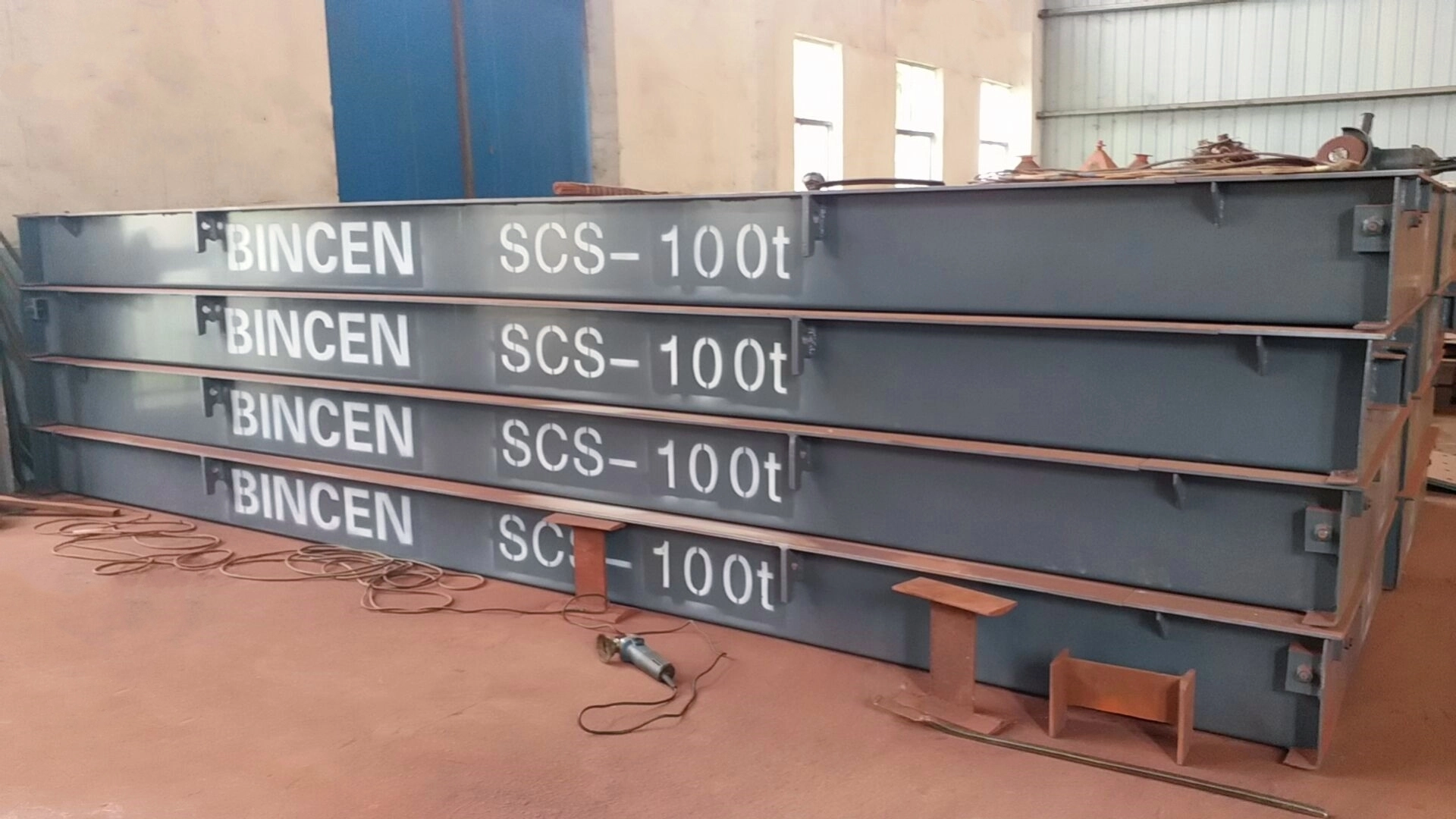

Modular structure: Easy installation
Accuracy: Precise weight measurement
Durability: Sturdy and long-lasting construction
Anti-cheating: Prevention of fraudulent weighing practices
Printer compatibility: Printing of weighing orders, reports, and other documents

Product Information
Company & FAQ

Bincen 100 Ton Weighbridges are high-performance weighing devices featuring a scale body, high precision sensors and display instrument to support basic weighing functions. In addition, these weighbridges may be equipped with optional printers, large screen displays or weight management software for advanced data management needs.

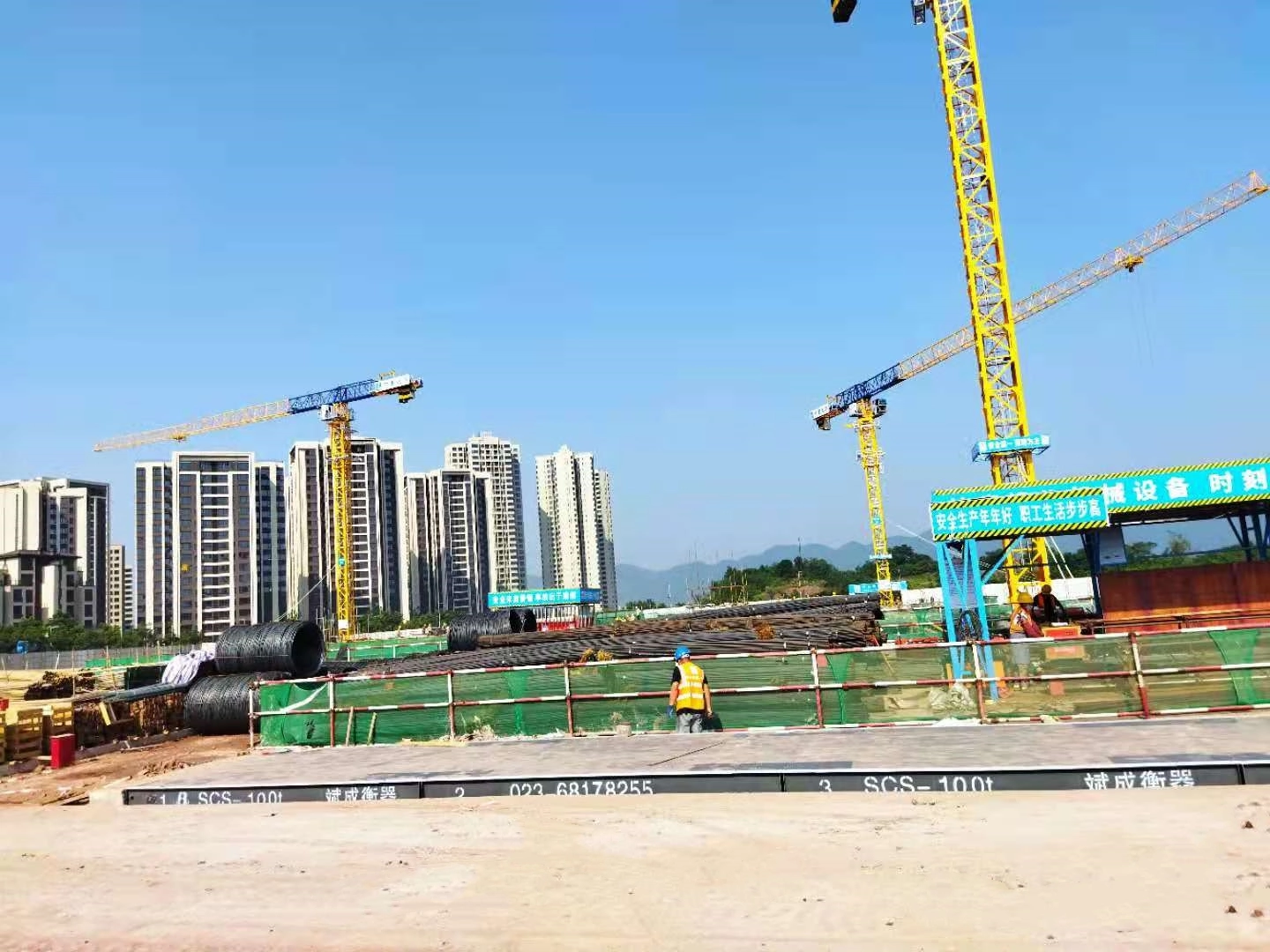

This weighbridge is ideal for vehicles such as rear eight-wheel vehicles, front four and rear eight (9.6 meters), semi-trailers, tunnel construction equipment, highway repair services, and mixing plants – making it highly practical in various fields such as tunnel building, highway repair services, and mixing plants.

Its modular design makes installation quick and simple, while precise measurements and long-term reliable use guarantee long-term use. Plus, with anti-cheating features to prevent fraudulent weighing practices in place, this scale makes an excellent weighing solution!

Function

Weighing function: Accurately weigh the weight of goods.
Data processing: Time and date recording, print reports.
Automatic calibration: Automatic zero point tracking, overload alarm.
System management: Support modern microcomputer weighing management system.

Features

Modular structure: Facilitates easy installation.
Connectivity: Uses serial interfaces to connect to computers, displays, and other devices.
Anti-cheating: Prevents fraudulent weighing practices.
Accurate weighing: Ensures precise weight measurement.
Durability: Sturdy and long-lasting construction.
Printer compatibility: Allows for printing weighing orders, reports, and other documents.

Basic Technical Parameters

Maximum weighing capacity	Max=100t
Size	Width: 3m,3.2m, 3.4m Length: 9m, 10m, 12m, 14m, 16m,18m, 20m, 22m, 24m (Various special specifications of weighing scales can be customized according to customer requirements)
Accuracy level	Accuracy level: OIML III; Graduation value: d=20kg, e=50kg
Verification standards	Digital scale JJG539-2016
Scale body structure	All steel structure, stiffness: 1/1000F S
Safety overload	125%F.S.

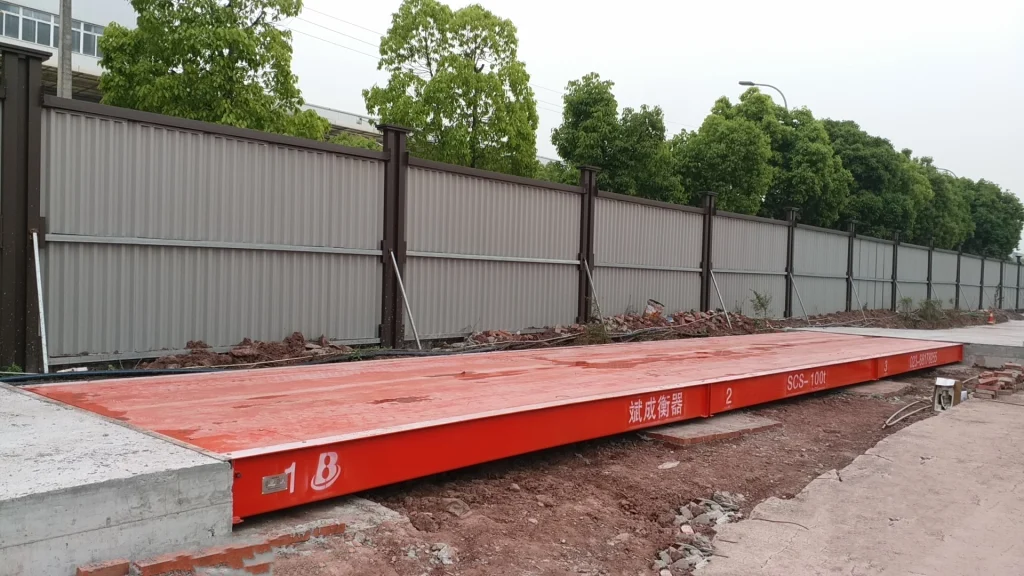

Installation method	Shallow foundation pit or no foundation pit, steel slope can be customized
Power supply	AC220V (-15～+10%)，50Hz±2%

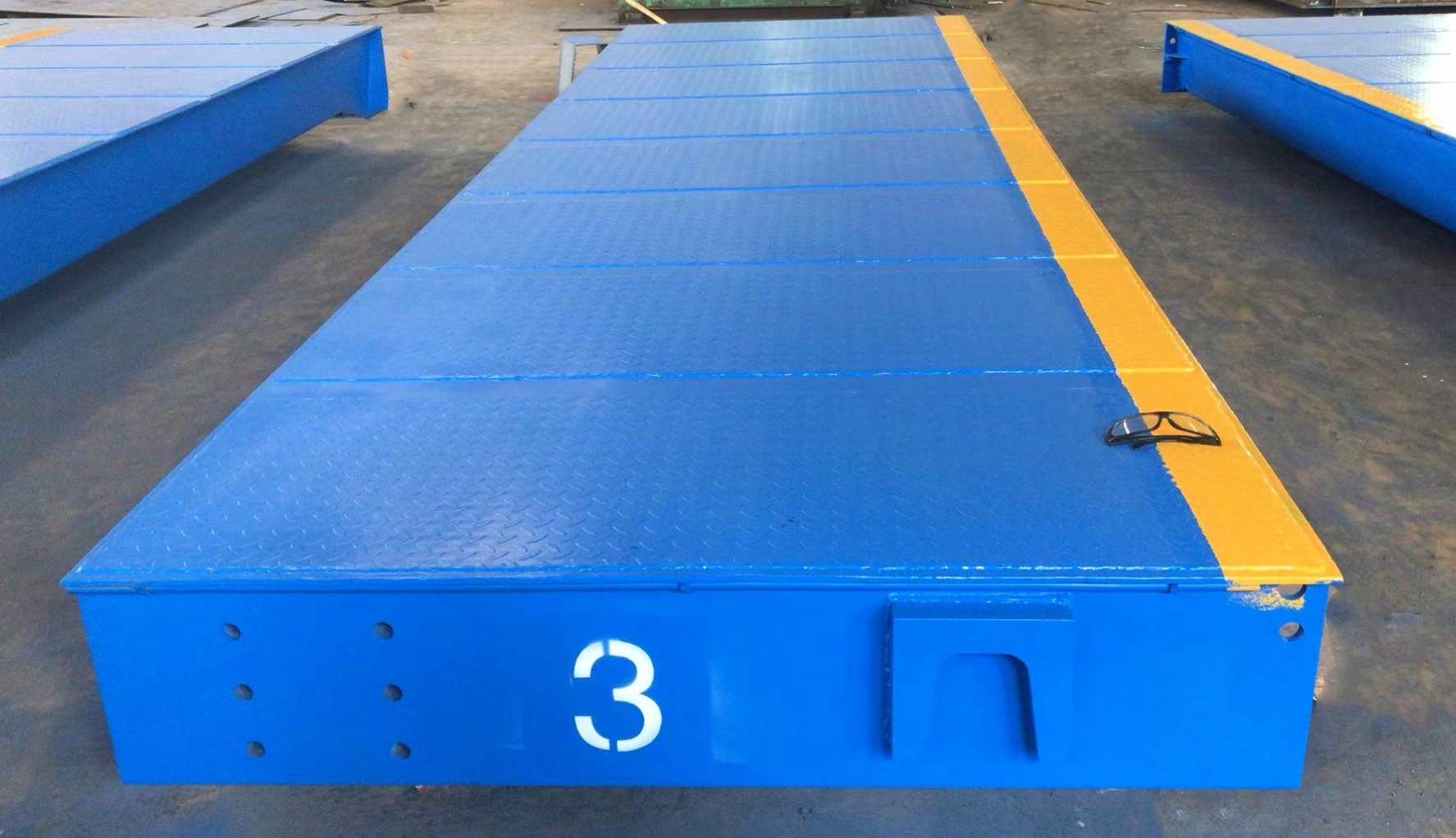

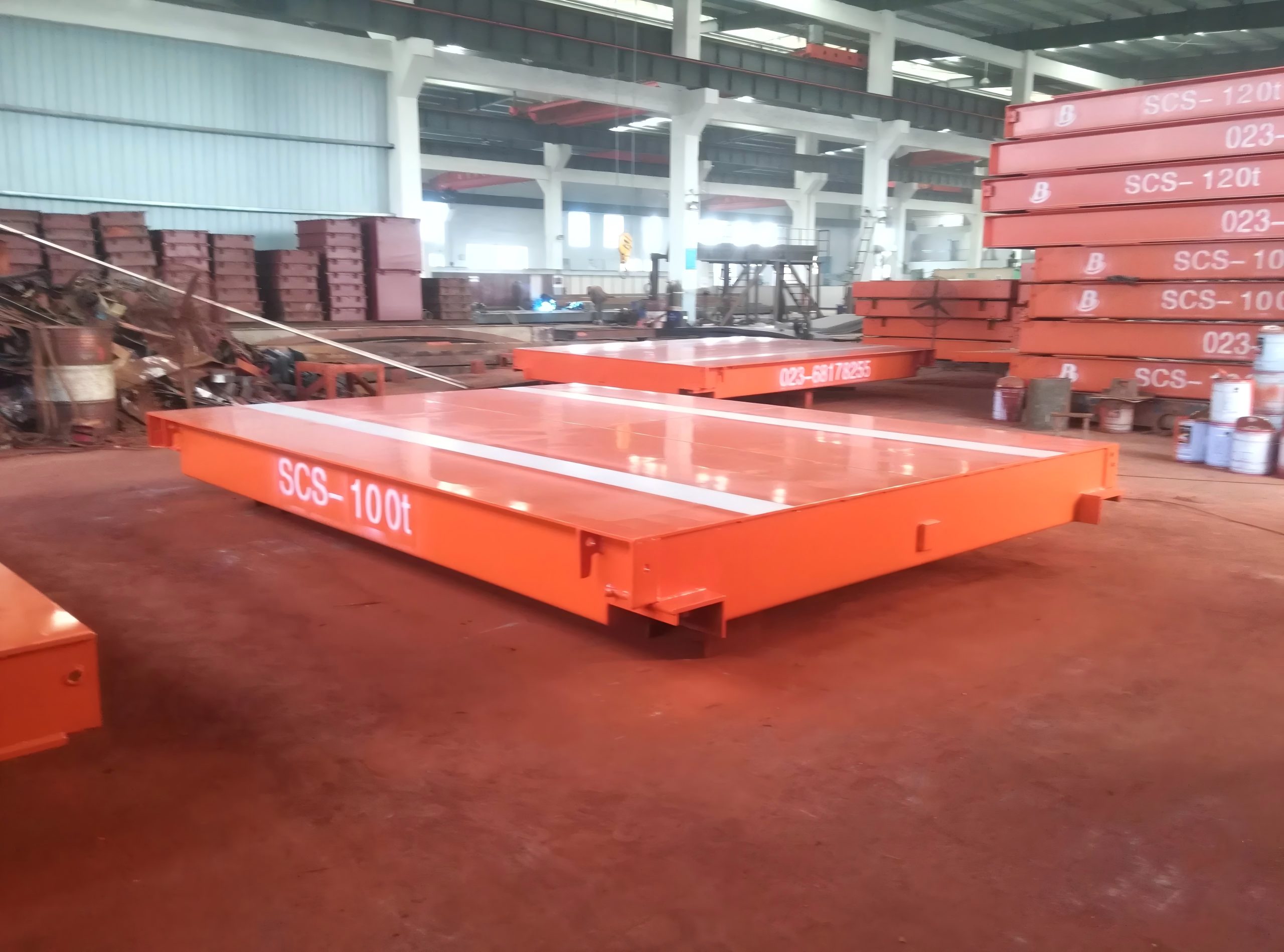

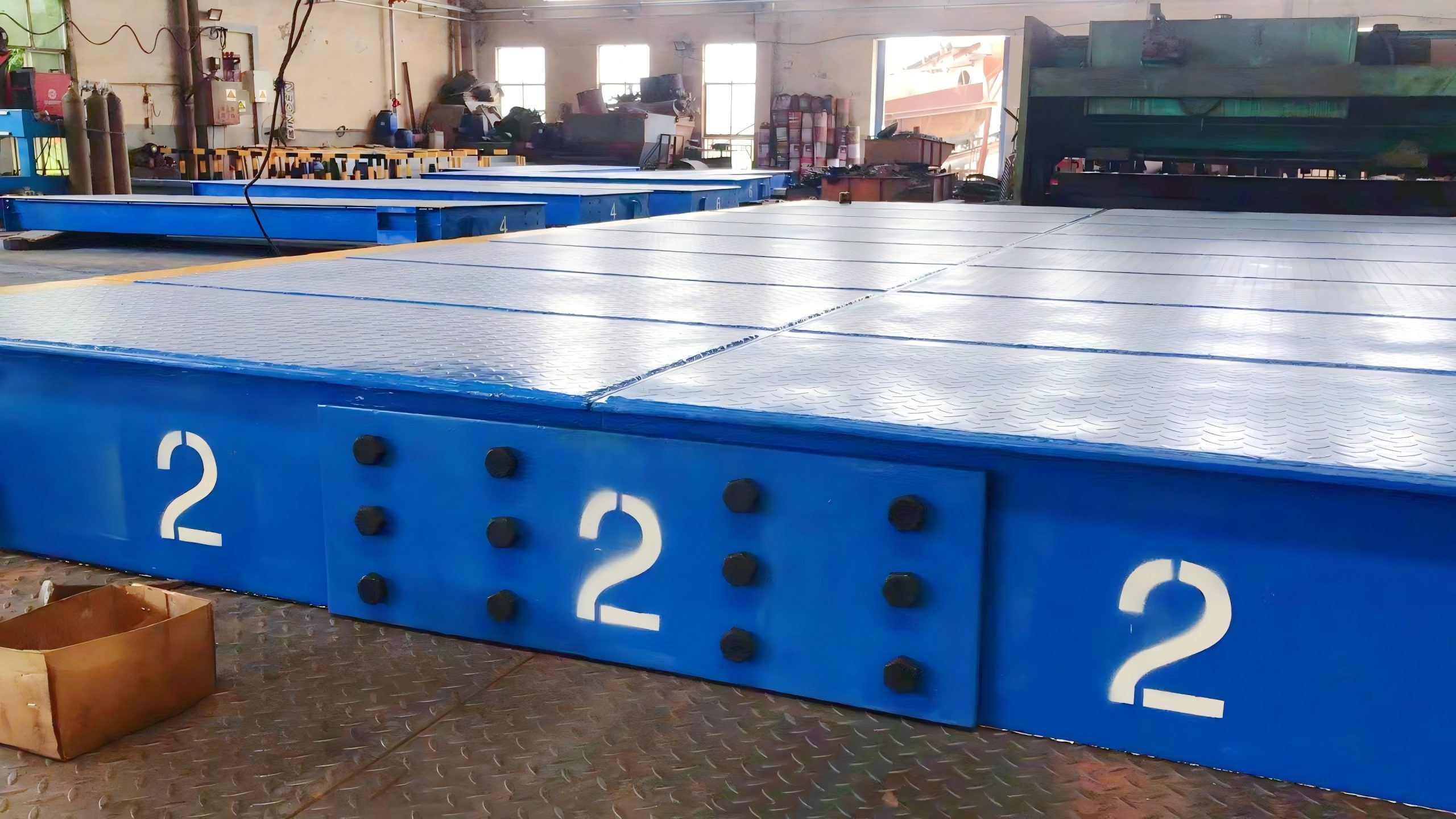

Scale platform	Composed of 2 or more weighing platforms

Accessory List

Weighing sensor	30tDigital or analog Protection level: IP68, IP69
	ZEMIC/KELL/Celtron/UTICLELL
Weighing instrument	Stainless steel casingAnti surge, with anti-induction lightning design
	YaoHua\KELL\Celtron\UTICLELL
Junction box	Stainless steel casingAnti surge, with anti-induction lighting design
	Remodeled by Bincen
Scale body limit	The four corner limits of each scale section
	Supporting facilities of Bincen
Lightning protection grounding flexible copper wire	Reduce damage to sensors caused by induced lightning strikes
	Supporting facilities of Bincen
Optional configuration	Computers, printers, weighing management software, unmanned weighing systems, weighing systems with license plate recognition
	Bincen

Why Choose Us?

Bincen’s 100 ton weighbridges offer a seamless installation process, thanks to their modular design and pre-integrated components. Coupled with comprehensive technical support, including expert advice, installation guidance, and after-sales service, customers can enjoy a hassle-free experience. Bincen also provides additional services like customization, warranty coverage, and remote assistance to ensure customer satisfaction.

FAQ

A1:

Spot products and goods will be delivered within 15 days after receiving the deposit or full payment.
Customized products shall be delivered within 30-45 days after receiving the deposit.
Payment before delivery.

A2: 15 days from quotation date.

A3: One-year warranty, discontinued online remote guidance service.

A4: Always a pre-production sample before mass production; Always final Inspection before shipment.

A5: Provide your email, phone number, Whats App, and other contact information to facilitate our sales personnel to communicate with you in the future; We also need to provide the specifications of the products you require, such as size, maximum weight, etc., so that we can provide you with a faster quotation.
