30 Ton Weighbridge
- Maximum weighing capacity: 30 ton
- Width: 2m, 2.5m, 3m
- Length: 5m, 6m, 7m, 8m, 9m, 10m
- All-steel structure scale body: Provides durability and strength.
- 4 weighing sensors: Ensures accurate measurements.
- 1 weighing instrument: Processes and displays weight data.
- Modular structure: Facilitates easy installation and lifting.
Bincen 30 Ton Weighbridge is a high-efficiency and durable weighing device made with an all-steel structure. It consists of four weighing sensors and one weighing instrument, equipped with a surge junction box and a printer.

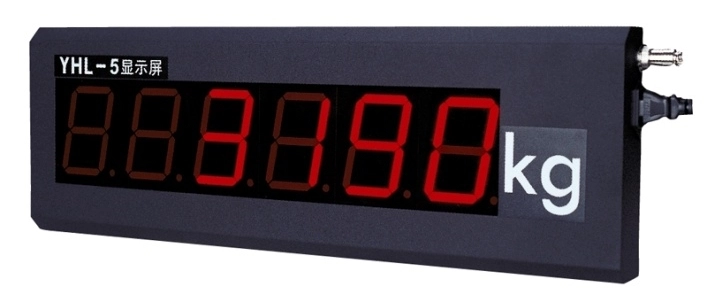

It supports optional large-screen displays and associated weighing systems, such as unattended weighing systems and automatic vehicle weighing systems. Its fully electronic modular design makes it easy to lift and install on-site, making it ideal for weighing tricycles, agricultural vehicles, and single-bridge vehicles.
Features
- Ultra-low weighing platform design: Reduces the height of the platform for easier access.
- Elastic aseismic and impact resistant: Absorbs shocks and vibrations for durability.
- Easy installation: Requires minimal foundation construction.
- Flat surface requirement: Only needs a solid cement floor or pavement.
- Cost-effective: Saves on basic construction costs compared to traditional scales.

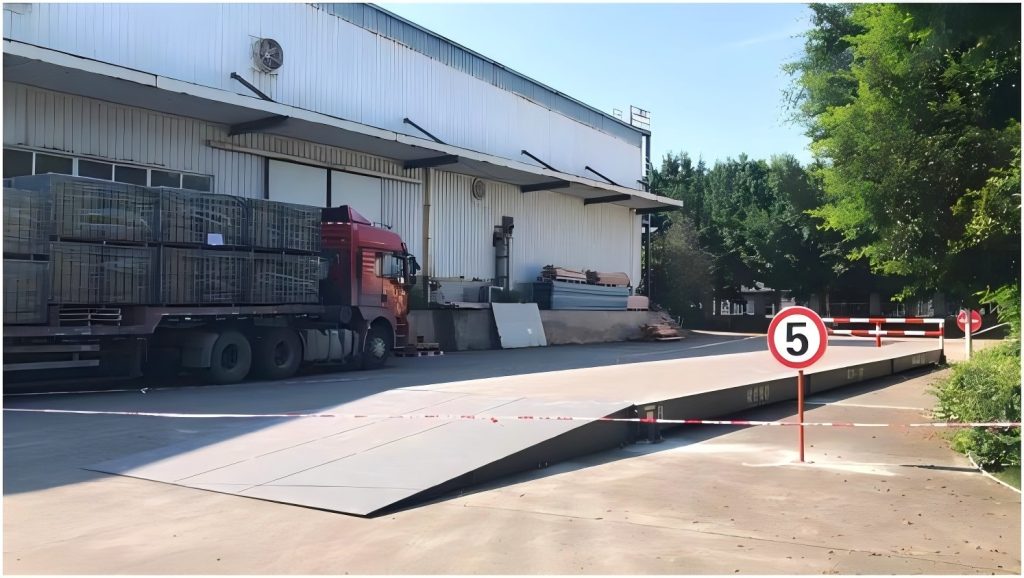

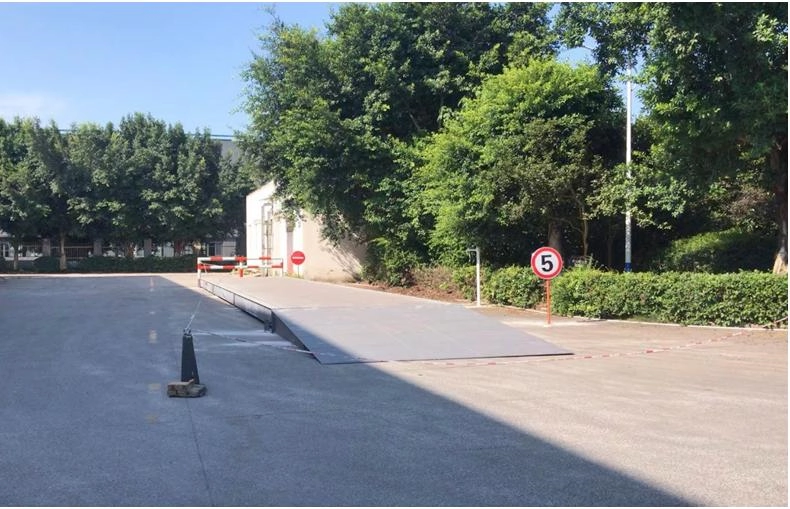

- Easy weighing: Integrated steel ramp and platform facilitate vehicle weighing.
Accessory List
| Item | Models and Specifications | Brand |

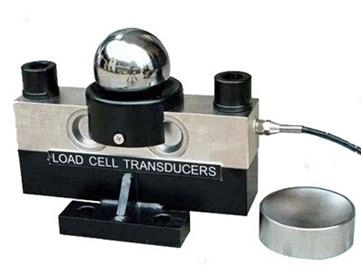

| Load Cell | Analog; Protection grade (IP grade): IP68IP69 | ZEMIC\ KELL\ Celtron\ UTICLELL |
| Load Cell Tonnage | 15t、20t | |

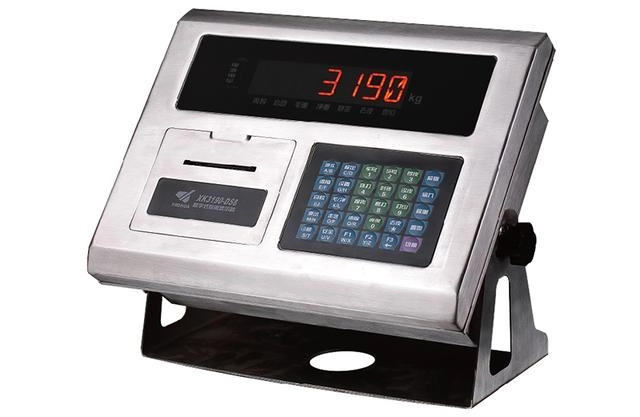

| Weighing instrument | Standard configuration: 1. RS232/RS485 self-adaptive 2. RS232 ◆Power supply： AC187～242V; 49～51HZ ◆DC power: external 12V batter | Yaohua\ KELL\Celtron\UTICLELL |
| Junction box | Analog; Protection grade (IP grade): IP68IP69 | Remodeled by Bincen |
| Scale body limit | The four corners and eight squares of a scale | Remodeled by Bincen |
| lighting-proof soft copper ground line | Reduce the damage of induction lighting on censors | Remodeled by Bincen |

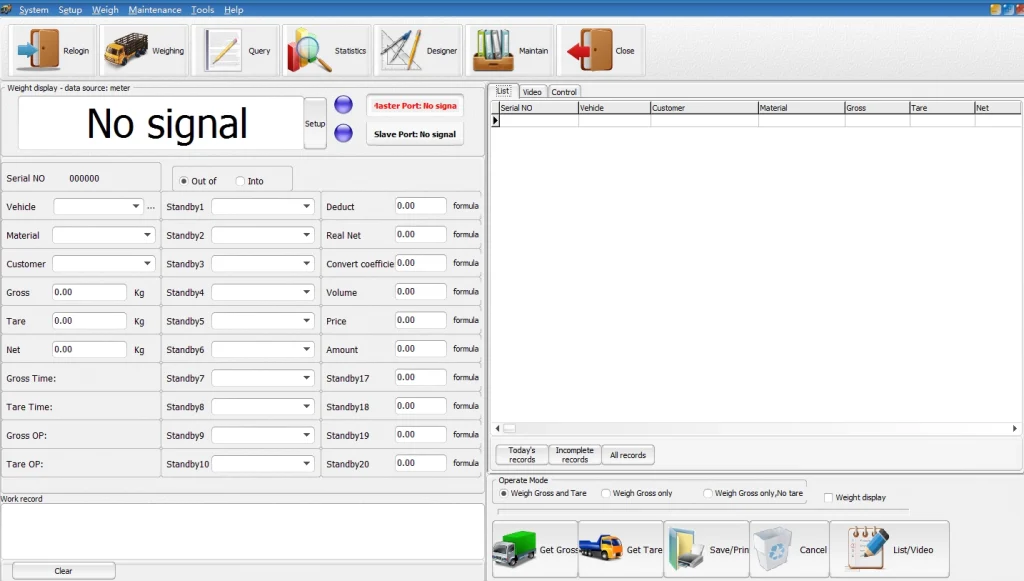

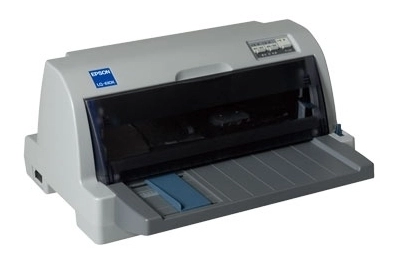

Customizable accessories: The scale system of the 30-ton weighbridge can be equipped with computers, printers, weighing management software, an unattended weighing system, and a weighing system with license plate recognition to fit the requirements of customers.
Specification
| Maximum weighing capacity | Max=30 ton |
| Width | 2m、2.5m、3m |
| Length | 5m、6m、7m、8m、9、10m |
| Accuracy level | OIML Ⅲ; Graduation value: d=5kg, e=10kg |
| Calibration standards | Digital indicating scale JJG539-2016 |

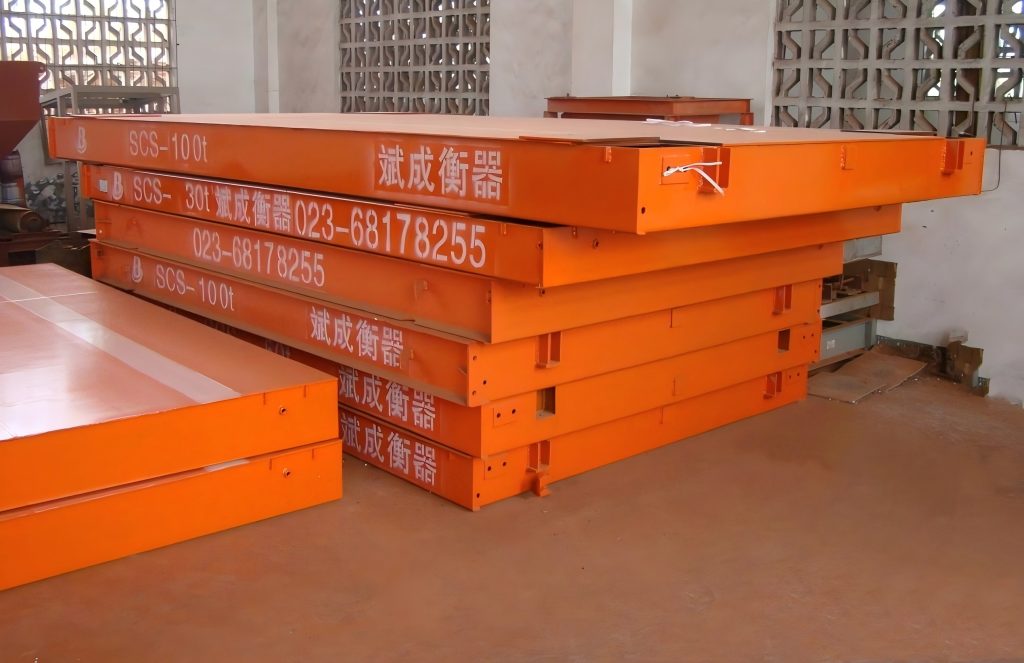

| Scale body structure | 1 section, all steel structure, stiffness: 1/1000f.s |
| Safe overload | 125%F.S. |
| Installation | Suitable for installation without foundation pit |
| Power supply | AC220V (-15～+10%)，50Hz±2% |
* Customisable according to the requirements of customers.

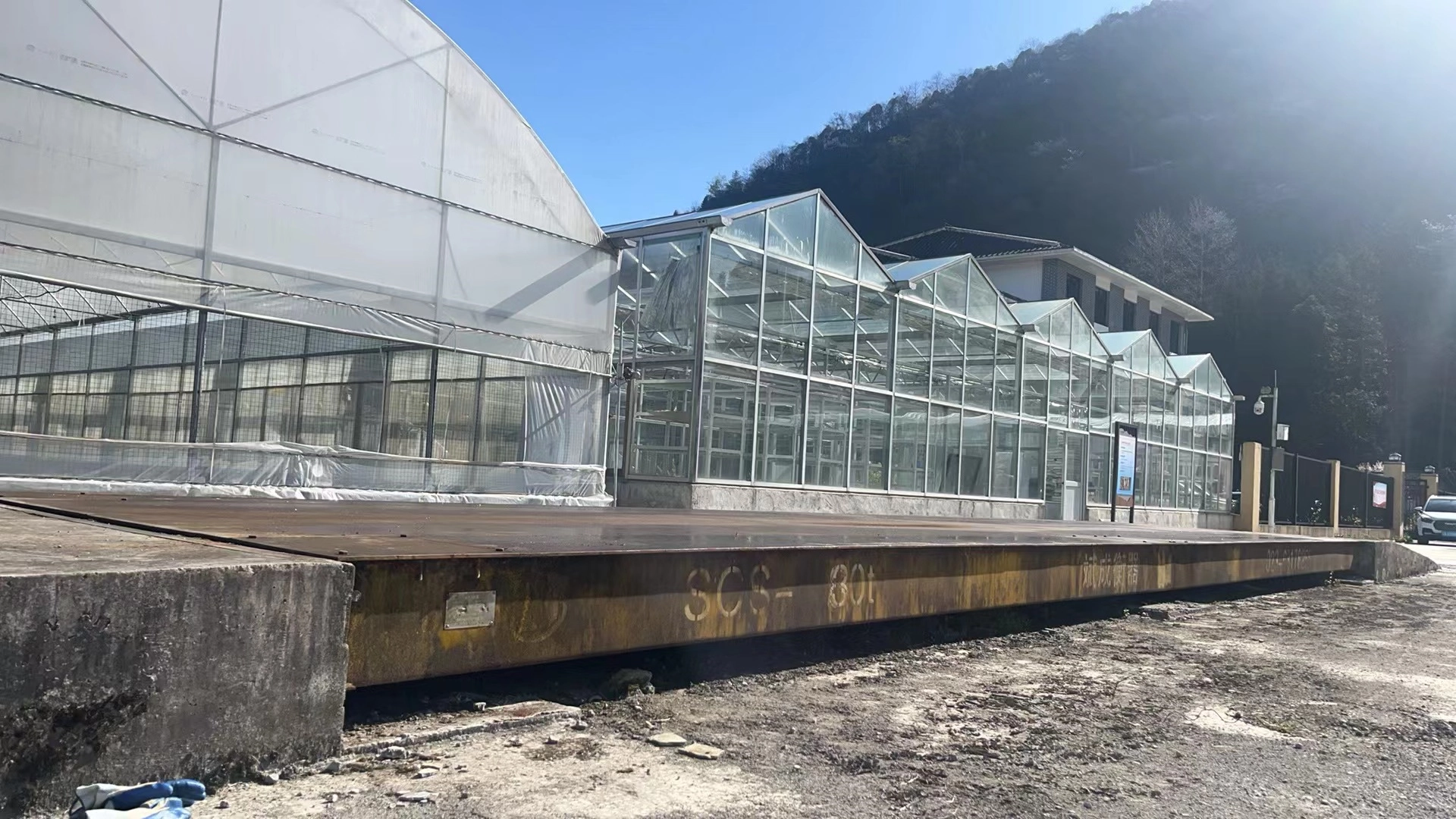

How to Install the 30 Ton Weighbridge
Bincen’s 30 Ton Weighbridge offers a modular design and pre-integrated systems for easy installation, eliminating the need for heavy machinery. Our comprehensive technical support includes expert advice, clear instructions, and ongoing after-sales support. While on-site service may not be available, we provide video tutorials and remote assistance for a successful installation.
Why Choose Bincen?
We have more than 20 years of experience in the production, R&D, and sales of weighing instruments, and we are still developing and innovating. Located in Chongqing, Southwest China, the company has a good industrial foundation and tradition. The company adheres to the good tradition of Seiko and meticulous work, strictly demands the quality of products, and wins customers with stable and reliable product quality.
Why Choose Us?
- Over 30 years of experience in the weighing field.
- Excellent technical skills and 24-hour online service for lifelong support.
- Remote free guidance for pre-sales, installation, and after-sales support.
- ISO9001 quality system for ensuring product quality and durability.
- Ultra-long service life of the scale body due to high-quality materials and manufacturing.
