150 Ton Weighbridge Scale

Maximum weighing capacity: Max=150t
Scale body structure: All steel structure, stiffness: 1/1000F S
Width options: 3m, 3.2m, 3.4m
Length options: 16m, 18m, 20m, 22m, 24m
Special specifications: Customized options to meet specific customer requirements.
Steel Structures: U-beam, I-beam, and L-beam options available.
Sensor Types: Digital weighing scales, analog weighing scale

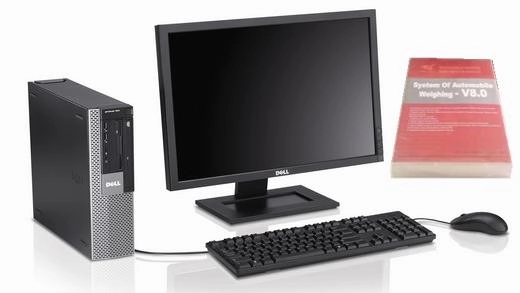

Optional Features: Computers and weighing management software.

Product Information
Company & FAQ

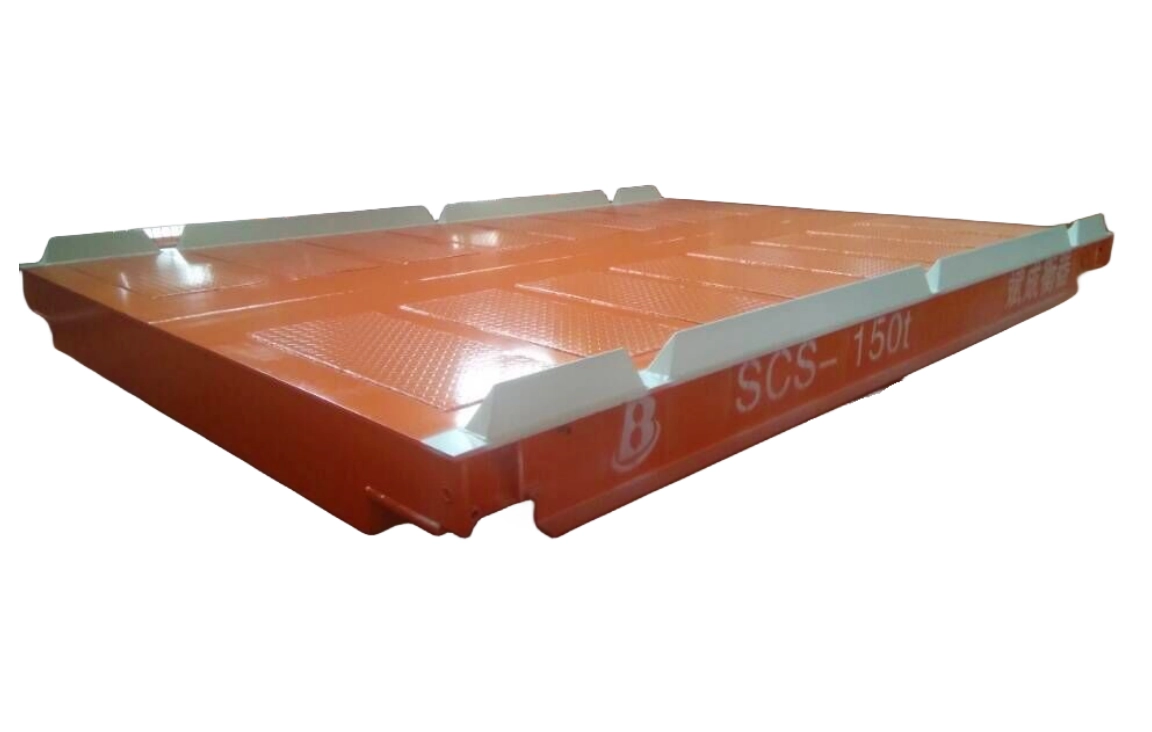

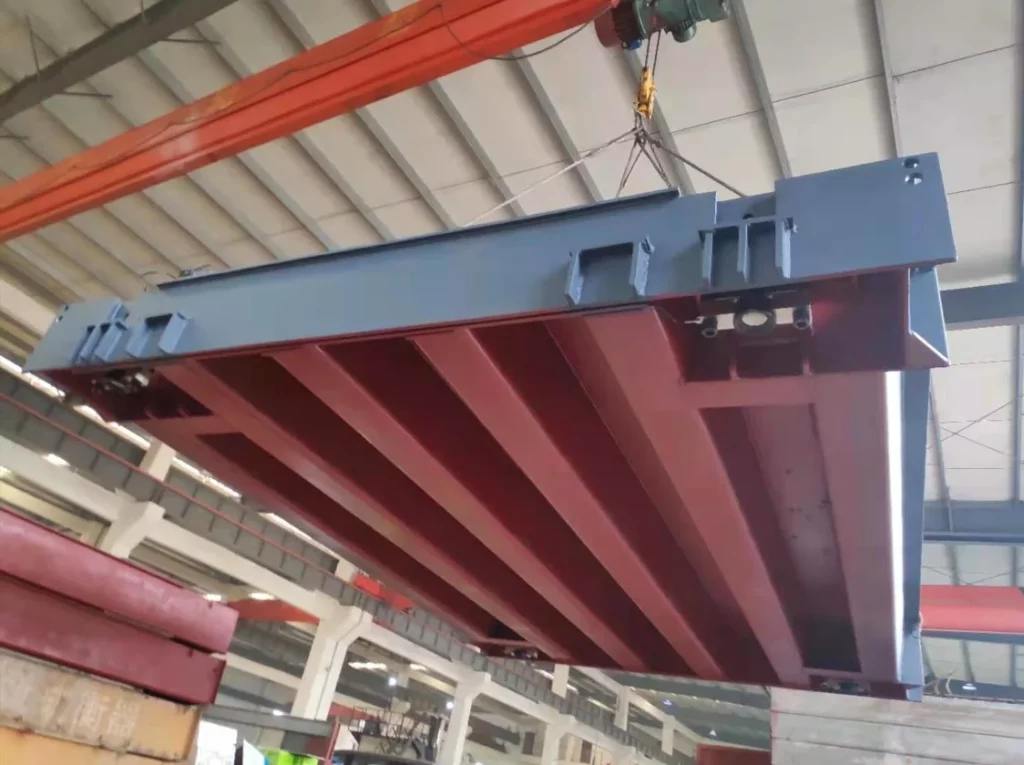

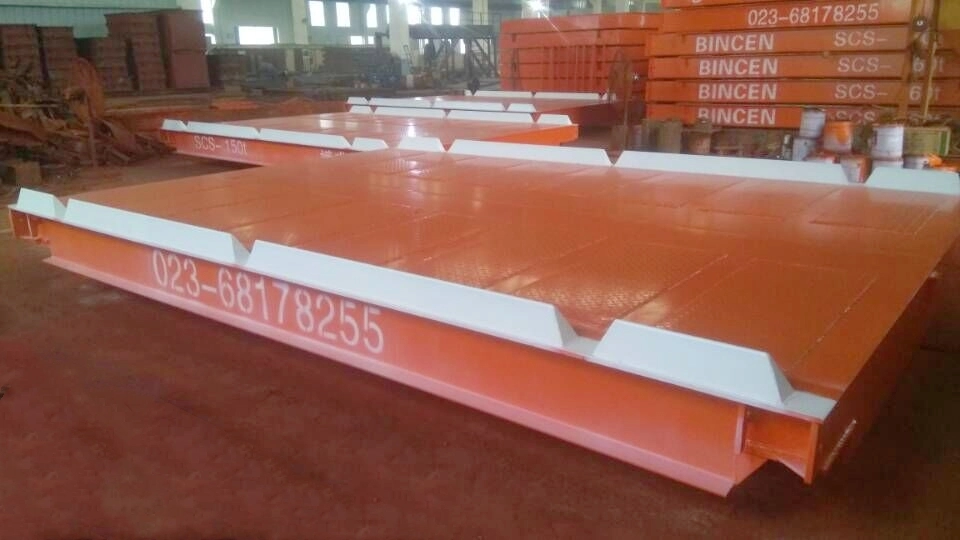

The Bincen 150-Ton Weighbridge Scale high-performance instrument specifically designed for external weighing and specific measurements. The steel structure is all-steel, which ensures outstanding durability and stability.

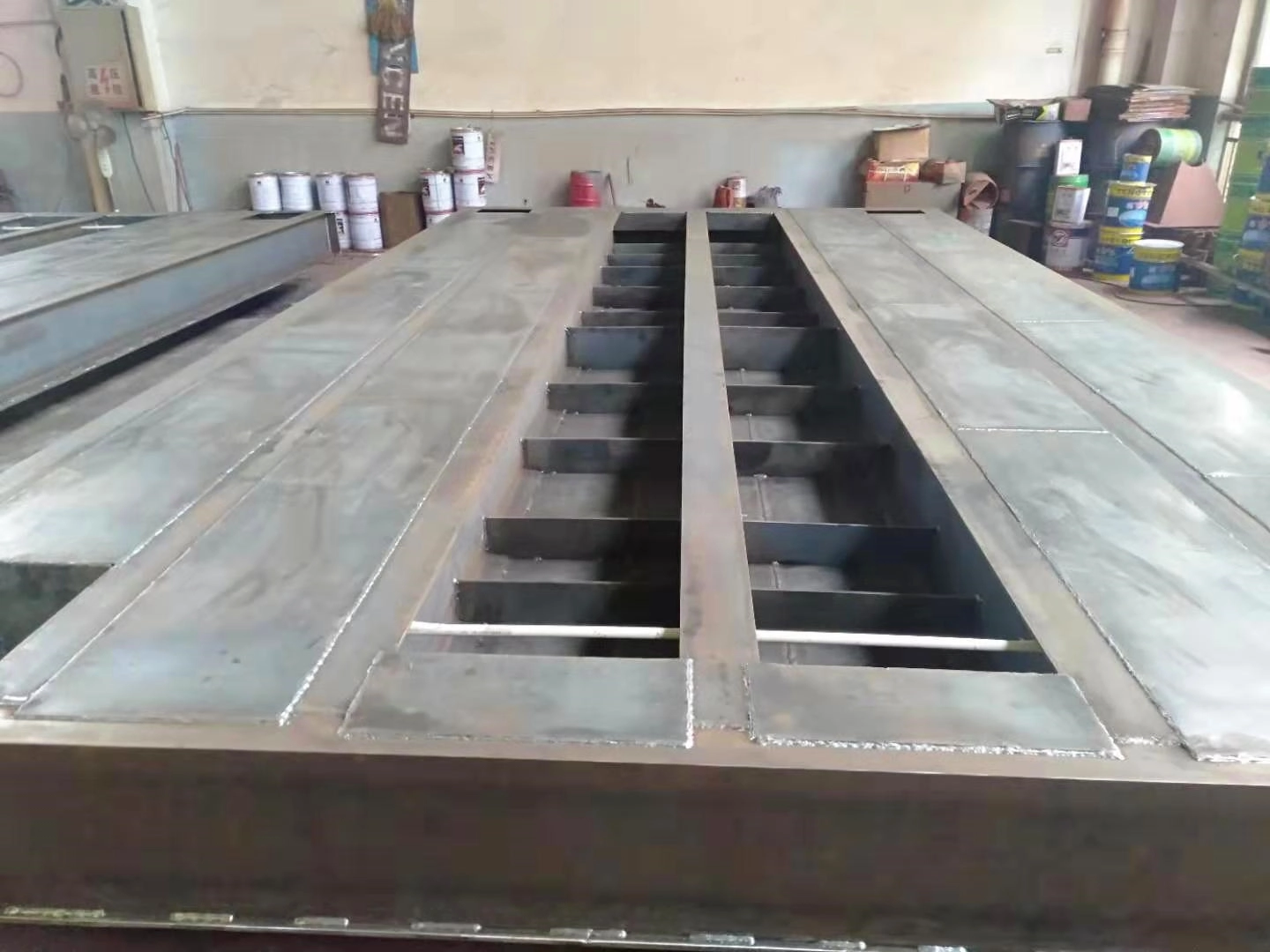

Users can select from I-beam, U-beam or L-beam scale body designs according to their individual requirements.

The base configuration comprises high-precision sensors and printers, junction boxes and weighing devices in analog and digital formats. The system can also be fitted with sophisticated computers and software for weighing management to ensure efficient data management.

Features

Sturdy constructionThick colored carbon steel and carbon frame.
Simple Installation: Limited device for an easier installation.
Display of Weight Control: Easily connected for reading weight data, as well as for other functions.
Wide-ranging Applications: Suitable for warehouses, workshops, freight yards and markets.
Display with clear displayHigh-definition huge screen to allow for ease of viewing in a variety of working environments.
Automated features: Zero-point tracking, full weight loss as well as weight accumulation.

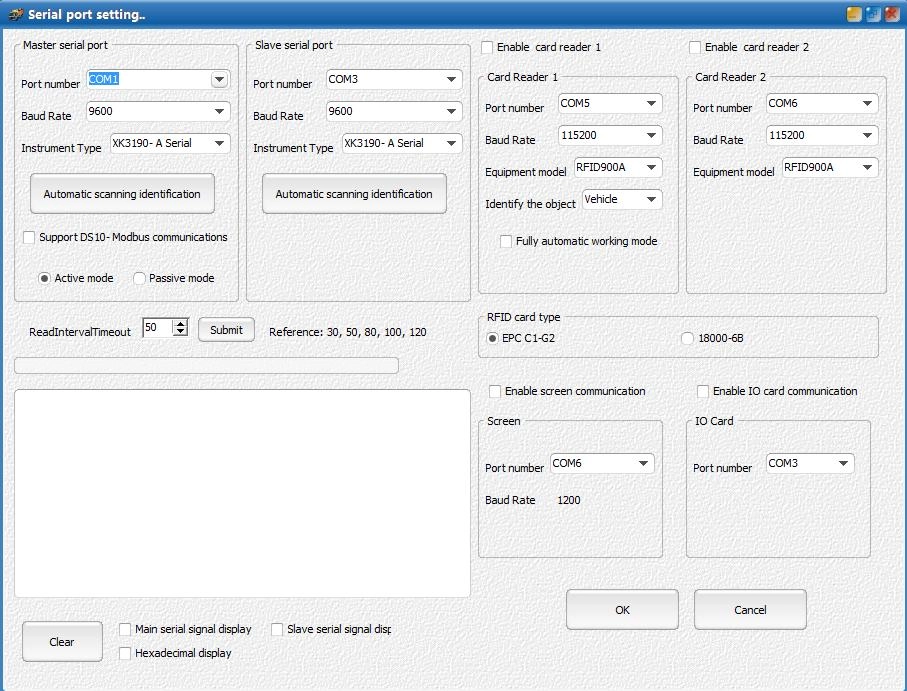

Interface compatibility: Connects directly to the RS232 connection or direct to the printer interface.
Resistance to corrosion: Chemical treatment for a stunning and durable surface.
Friendly for users: Easy calibration, dual AC/DC power, and a low power consumption.
Modifications: Can be equipped with printers, computers as well as weighing management software—unmanned weighing systems, as well as recognition of license plates.
Specifications specific: Customized options to meet particular customer needs.

Product Accessory List

Accessory Name	Specification	Brand
Weighing sensor	40t,50tDigital or analog Protection level: IP68,IP69	ZEMIC/KELL/Celtron/UTICLELL

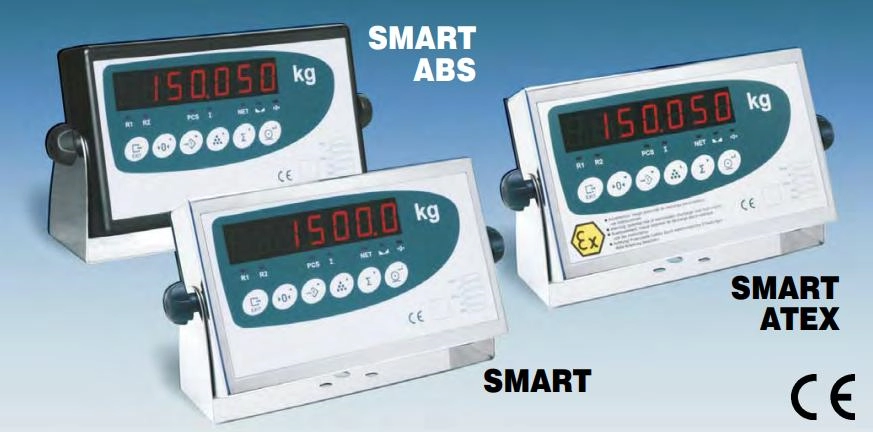

Weighing instrument	Standard configuration: 1. RS232/RS485 adaptive; 2. RS232 ◆ Power supply: AC187-242V; 49-51HZ ◆ DC power supply: powered by an external 12V battery	YaoHua\KELL\Celtron\UTICLELL

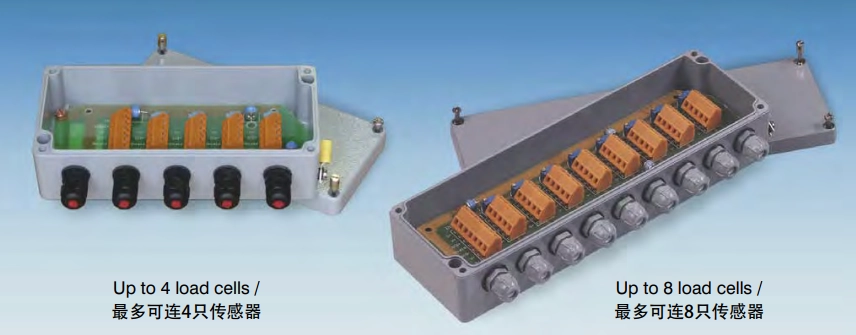

Junction box	Stainless steel casingAnti surge, with anti-induction lighting design	Stainless steel casingAnti surge, with anti induction lighting design
Scale body limit	The four corner limits of each scale section	Supporting facilities of Bincen
Lightning protection grounding flexible copper wire	Reduce damage to sensors caused by induced lightning strikes	Supporting facilities of Bincen

Specification

Feature	Details
Maximum weighing capacity	Max=150t
Accuracy level	OIML III; Graduation value: d=50kg, e=50kg
Safety overload	125%F.S.
Power supply	AC220V (-15%~+10%), 50Hz±2%
Verification standards	Digital scale JJG539-2016
Scale body structure	All steel structure, stiffness: 1/1000F S

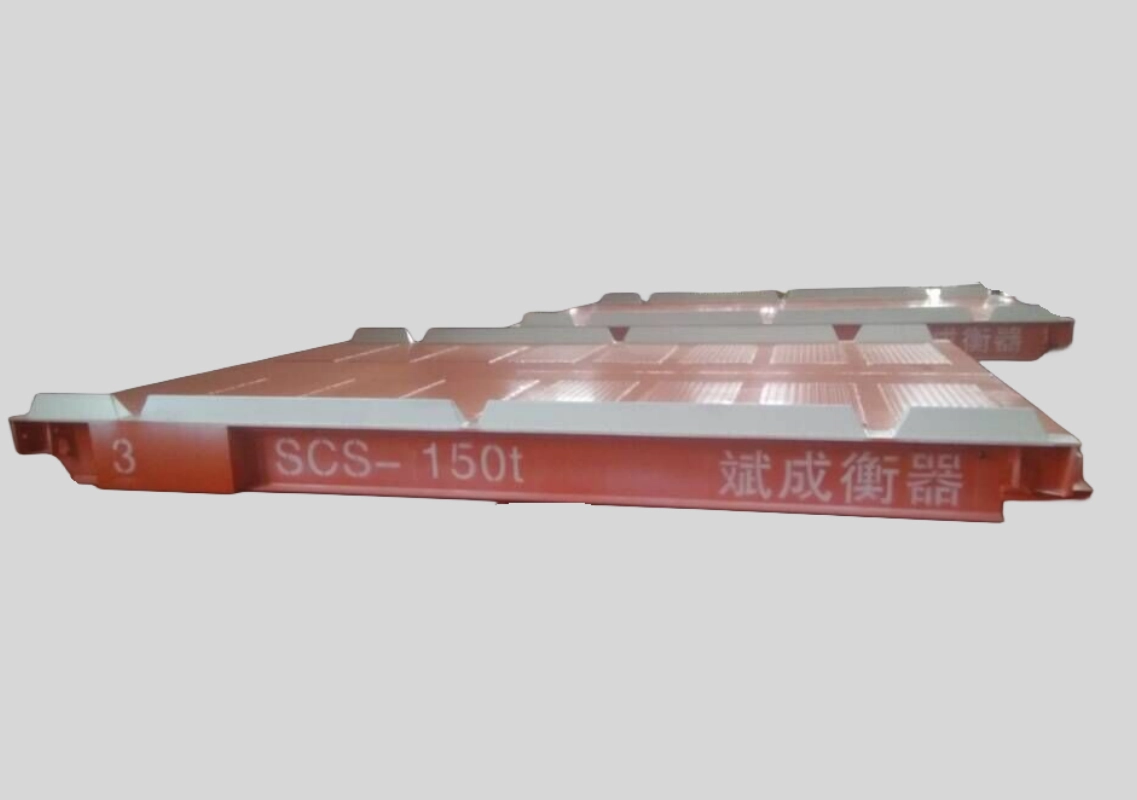

Scale platform	Composed of 3 or more weighing platforms
Width options	3m, 3.2m, 3.4m
Length options	16m, 18m, 20m, 22m, 24m

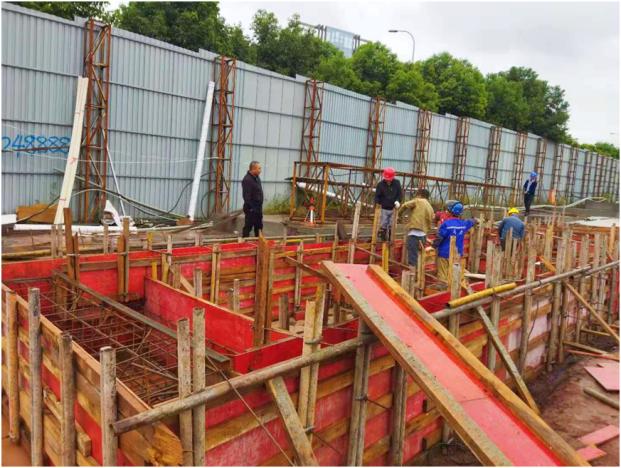

Installation method	Shallow foundation pit or no foundation pit, steel slope can be customized

Key Benefits of Installing Bincen’s Products

Modular Design: Easy installation with pre-integrated components.
Technical Support: Comprehensive assistance, including installation guidance and after-sales service.
Remote Support: Detailed video tutorials and remote assistance for areas without on-site service.

Reasons to Choose Bincen

Expertise: Over 30 years of experience in the weighing industry.
Quality Products: Reliable weighing and batching controllers.
Comprehensive Support: Expert sales service and after-sales maintenance.
Industry Recognition: Supplies to renowned industrial enterprises.
Commitment to Quality: Strict adherence to quality standards and customer satisfaction.
CE Certification: Adheres to European standards.
Customization: Customized, ODM, and OEM services are available.
Warranty: Free replacement of damaged accessories.

FAQ

A1: Yes, we can provide an operation video.

A2: It is 12 months.

A3: One-year warranty, discontinued online remote guidance service.

A4: At present, there are only repair points available in China. If you have repair needs, we will provide online remote guidance.

A5:

Reach purchase intention after communication;
Signing the contract;
Pay deposit;
Pay the balance after completion of production according to order;
Delivery arrangements.
