60 Ton Weighbridge
- Max: 60ton
- Accuracy level: OIML III
- Sealed and welded steel construction: Provides overall stiffness, torsional resistance, and durability.
- Anti-corrosion design: Enhances the scale platform’s resistance to corrosion and rust.
- Overlapping technology: Reduces gaps between scales, minimizing maintenance workload.
- High-precision bridge-type weighing sensors: Accurate weight measurement.
- Data upload and storage: Enables data management and analysis.
Bincen’s 60-ton Weighbridge is among our most popular products, made for dump trucks or single axle trucks double axle vehicles, as well as the rear axle of eight wheels. It can be used to weigh diverse materials, including coal, gangue, stone, sand, as well as grains.
The modular layout and robust structure, when combined with high-precision bridge-type weight sensors and weighing instruments with a variety of features, result in a reliable weight system.

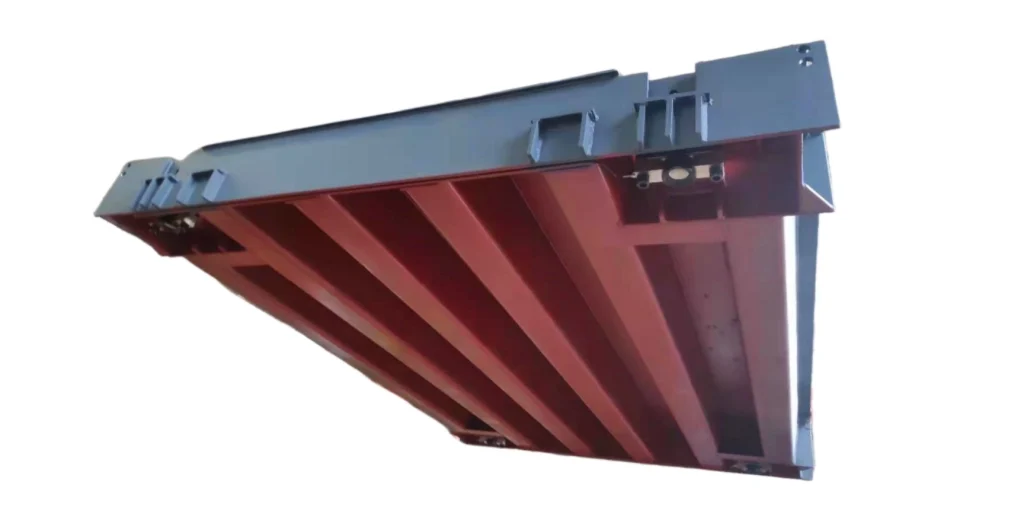

The welded and sealed steel construction offers excellent rigidity and torsional resistance. The anti-corrosion design increases the durability. Overlapping technology eliminates the gaps in between platforms, which reduces the cost of maintenance.
Features
- The scale body is sealed and welded with steel, ensuring overall stiffness, torsional resistance, strong quality, and long service life. The welding process utilizes intelligent multi-head automatic continuous welding equipment to guarantee welding quality and stable product quality.
- The anti-corrosion design of the scale body greatly enhances the anti-corrosion and rust prevention capabilities of the scale platform.
- Adopting a new overlapping technology, the gap between the scales is small, which can effectively reduce daily maintenance workload.
- Equipped with high-precision digital weighing sensors and powerful weighing displays, the entire weighing process is accurate and has good long-term stability.
- Before leaving the factory, each device is calibrated using standard weights to ensure product accuracy.
- Multiple transmission methods: Supports wireless and wired transmission;

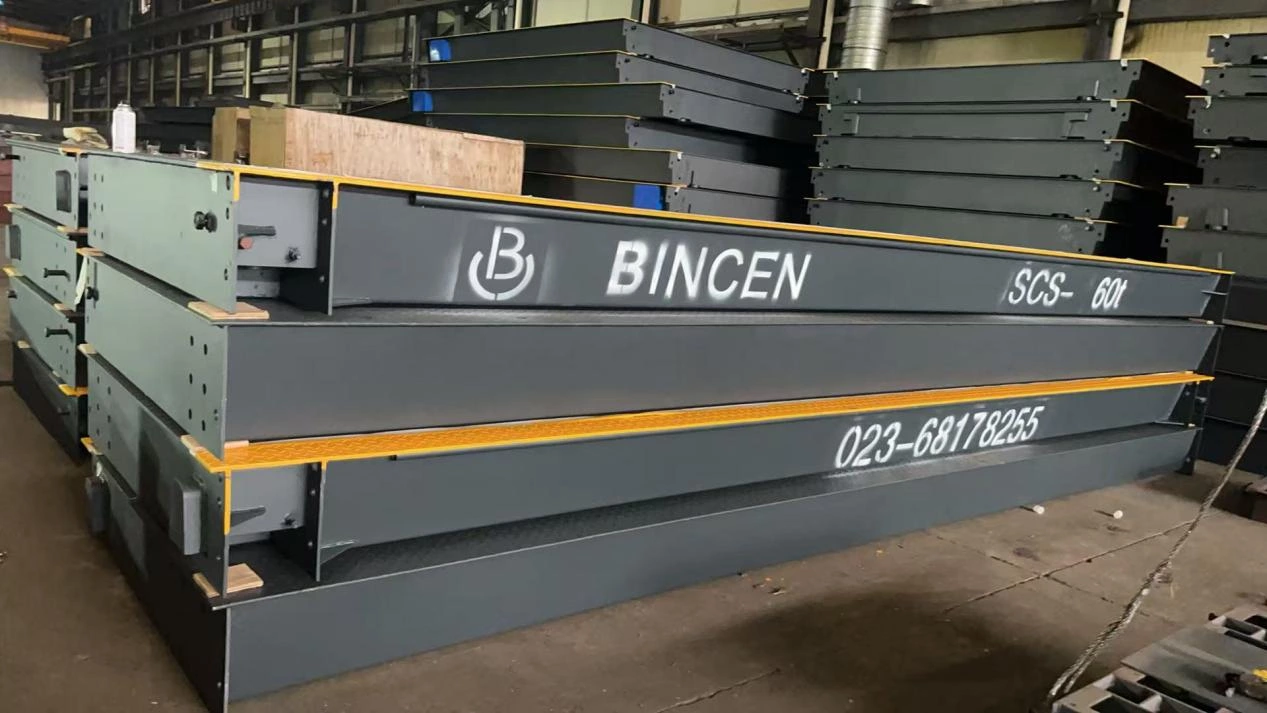

Basic technical parameters of SCS-60 ton weighbridge
| Maximum weighing capacity | Max=60t |
| Accuracy level | Accuracy level: OIML III; Graduation value: d=10kg, e= 20kg |
| Verification standards | Digital scale JJG539-2016 |
| Scale body structure | All steel structure, stiffness: 1/1000F S |
| Safety overload | 125%F.S. |

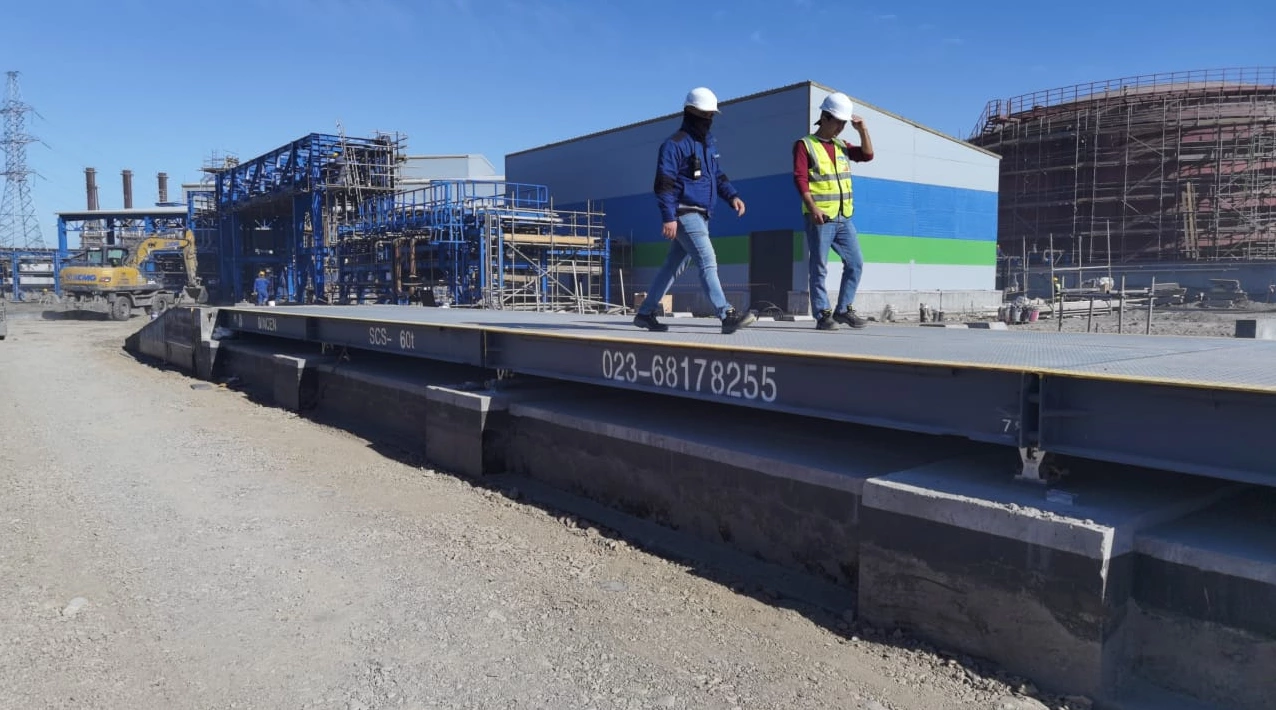

| Installation method | Shallow foundation pit or no foundation pit, steel slope can be customized |
| Power supply | AC220V (-15～+10%)，50Hz±2% |

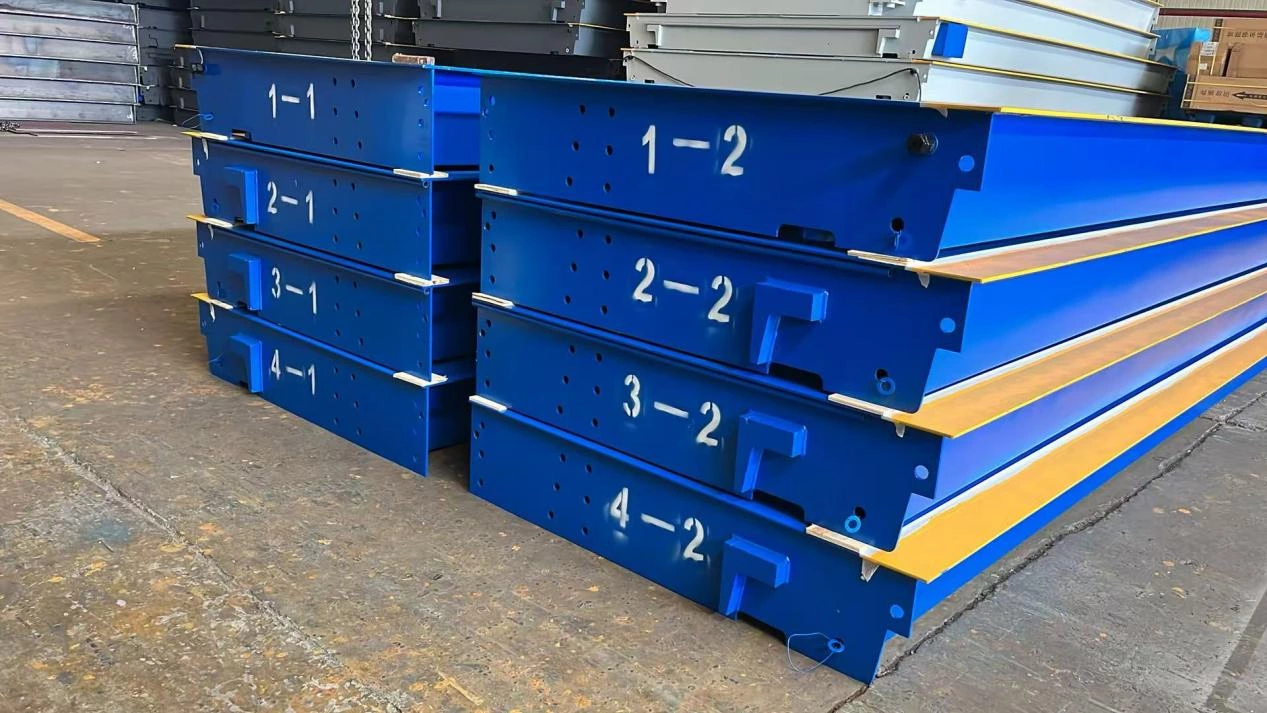

| Scale platform | Composed of one or more weighing platforms |
- Common width series: 2.5m、3m、3.2、3.4
- Common length series: 5m、6m、7m、8m、9、10m、12m、14m、16m、18m
- Various special specifications of weighing scales can be customized according to customer requirements.
Accessory Selection
| Accessory Name | Specification | Brand |
| Weighing sensor | Digital or analog protection level: IP68, IP69 | ZEMIC/KELL/Celtron/UTICLELL |
| Weighing sensor tonnage | 20t，30t | |
| Weighing instrument | Standard configuration: 1. RS232/RS485 adaptive; 2. RS232 ◆ Power supply: AC187-242V; 49-51HZ ◆ DC power supply: powered by an external 12V battery | YaoHua\KELL\Celtron\UTICLELL |
| Junction box | Stainless steel casingAnti surge, with anti induction lightning design | Remodeled by Bincen |
| Scale body limit | The four corner limits of each scale section | Supporting facilities of Bincen |
| Lightning protection grounding flexible copper wire | Reduce damage to sensors caused by induced lightning strikes | Supporting facilities of Bincen |

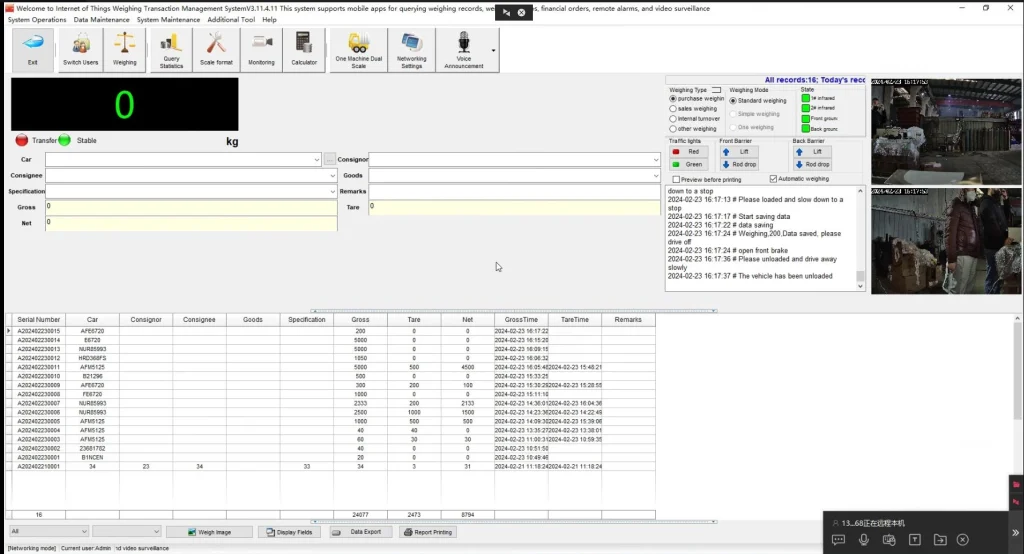

The system can be customized with peripherals such as printers, computers, and large screens, and integrated with weighing management software and automatic number plate recognition.
Benefits of Choosing Bincen
- Easy installation: Pre-integrated components and modular design.
- Comprehensive technical support: Expert advice, installation guidance, and after-sales service.
- Remote assistance: Video tutorials and remote support for areas without on-site service.
- Experienced team: Over 30 years of technical expertise in the weighing field.
- 24/7 support: Lifelong technical assistance through online service.
- Quality assurance: ISO9001 quality system, durable scale body, and high-quality materials.
- CE certification: Adheres to European standards.
- Customization options: Customized, ODM, and OEM services are available.
- Warranty: Free replacement of damaged accessories within the warranty period.
FAQ
Why Choose Us?
We have more than 20 years of experience in the production, R&D, and sales of weighing instruments, and we are still developing and innovating. Located in Chongqing, Southwest China, the company has a good industrial foundation and tradition. The company adheres to the good tradition of Seiko and meticulous work, strictly demands the quality of products, and wins customers with stable and reliable product quality.
