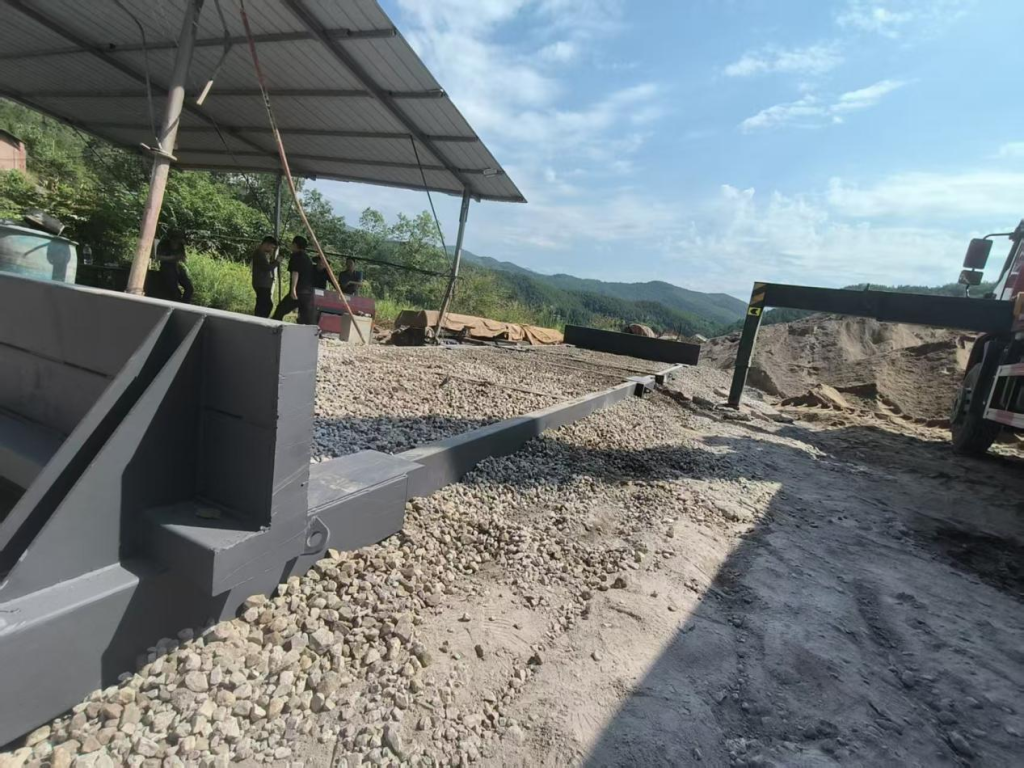

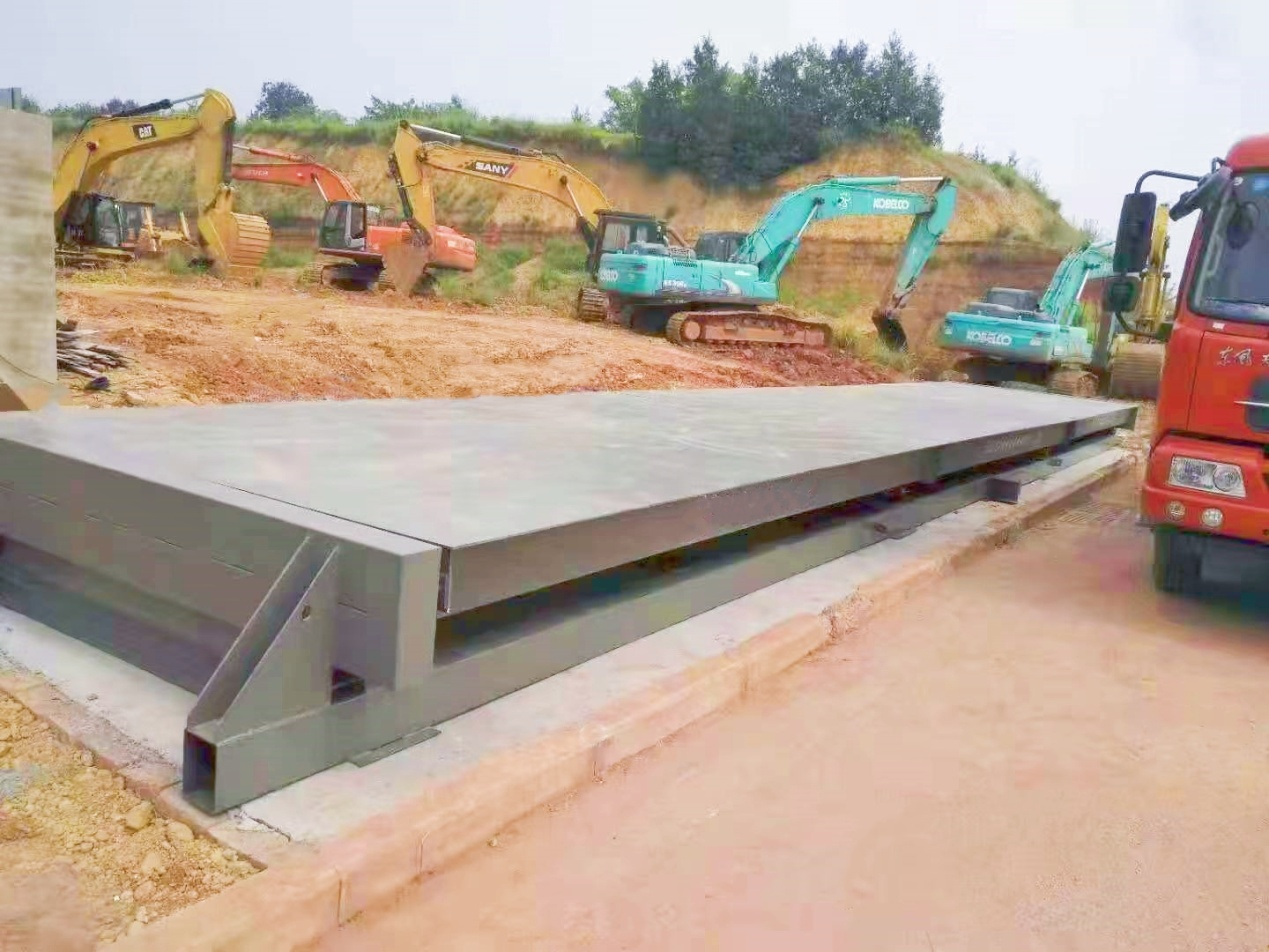

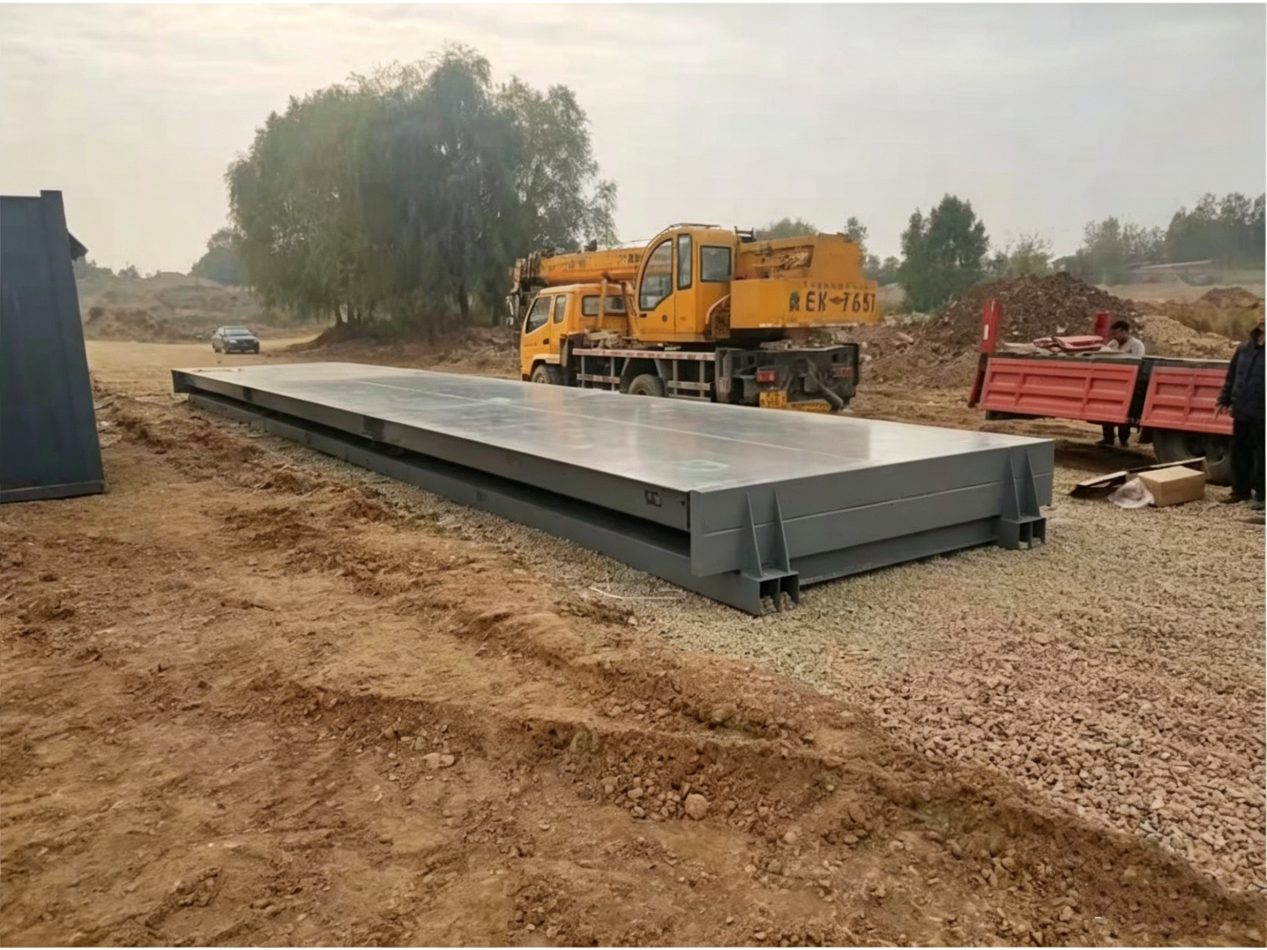

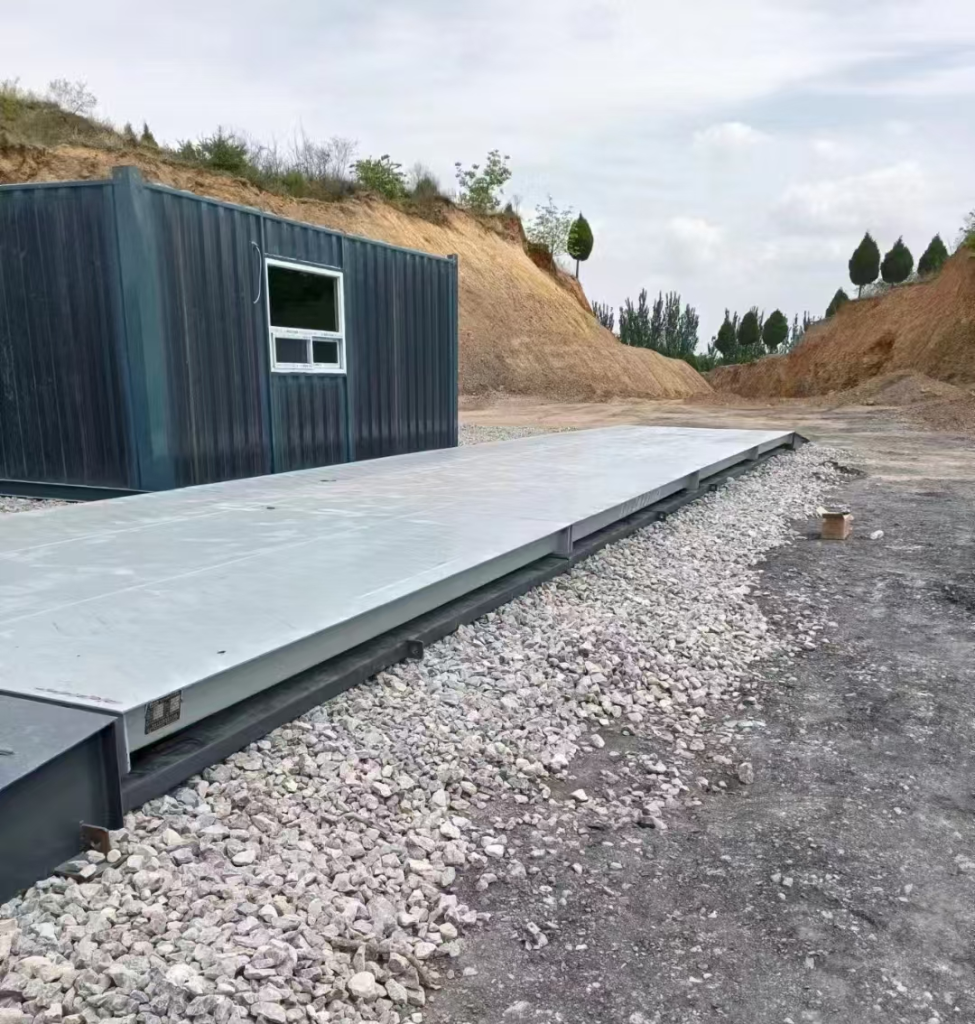

Mobile Truck Scale with Steel Base

No Foundation Required • Ready for Immediate Use • All-Terrain Weather-Resistant Solution

This product is an innovative truck scale specially designed for temporary construction sites, mines, logistics transfer stations, and strict overload control scenarios. It completely breaks the traditional weighbridge’s dependence on concrete foundations. By integrating a high-strength steel base and modular scale body, it enables ultra-fast deployment of “arrive today, weigh tomorrow”, making it an ideal weighing solution for resource extraction, cross-border logistics, and temporary projects.

This mobile truck scale with a steel base is not just a weighing tool, but also a solution to improve project efficiency, reduce the difficulty and risks of overseas construction, and enhance customer benefits.

Customers in need are welcome to contact our company, and we can provide customized solutions for you.

Key Advantages: Why Choose a Truck Scale with a Steel Base?

Special Value for the African Market:

Resistance to Foundation Deformation: In regions like Zambia with long rainy seasons, soil is prone to loosening. The integrated steel base distributes load evenly, effectively preventing scale body deformation caused by uneven foundation.
Savings on Hidden Costs: Eliminates the need for complex concrete construction for overseas projects, drastically reducing labor and time costs.

Service & Support

As a local enterprise based in Chongqing, we provide:

Customized Steel Base Design: Provide reinforced or standard steel base drawings based on the customer’s on-site foundation conditions.
Remote Guidance: Offer detailed installation videos (with English subtitles) to solve technical communication difficulties in overseas on-site operations. On-site service is available upon request.
Spare Parts Supply: Long-term supply of wearing parts such as load cells and indicators, with direct logistics delivery to major African ports.

Detailed Product Features

1. Structural Design: Robust & Portable

Overall Structure: Welded from Q235B carbon steel, with main beams in U-beam/I-beam configuration. The platform thickness is customizable based on the customer’s weighing capacity and frequency, ensuring high compressive strength.
Modular Design: The weighing platform and steel base are connected via bolts or pin-type docking, supporting split transportation and fast on-site assembly.
Integrated Approach Ramps: Equipped with detachable steel ramps with anti-slip grooves as standard, eliminating the need for additional concrete ramps.

2. Weighing System: Accurate & Anti-Cheating

Core Components: Equipped with digital load cells (IP68 protection), featuring stable signal transmission and anti-RF interference (anti-remote control cheating), ideal for mine trade settlement.
Intelligent Indicator: High-definition LCD with automatic zero tracking, dynamic detection and fault self-diagnosis functions. Chinese/English interface is optional, suitable for operators from multiple countries.
Data Management: Supports RS232/RS485 output, connectable to computers, printers and unattended weighing systems (optional).

3. Corrosion Resistance & Weatherability (Advantage of Chongqing Manufacturing)

Surface Treatment: For enhanced corrosion protection, optional shot blasting rust removal followed by epoxy zinc-rich primer + polyurethane topcoat process, effectively resisting salt spray corrosion in coastal African areas and dust abrasion in mining areas.
Protection Rating: Load cells with IP68 protection, indicator with IP65 protection, ensuring stable operation in high-temperature and high-humidity environments.

Reference Technical Parameters

Parameter Item	Specification Description
Rated Capacity	30t / 60t / 80t / 100t / 120t / 150t (Customizable)
Platform Size	3m × 6m / 3m × 9m / 3m × 12m / 3m × 18m (Modular Combination)
Accuracy Class	OIML Class III / National Standard Class III
Installation Method	Above Ground (No Foundation Pit), Platform Height Approx. 300-450mm
Operating Temperature	-30℃ ~ +65℃ (Load Cells)
Power Supply	220V AC / Optional Solar Panel (For Areas Without Power)

Why Choose Us?

Benefits of Bincen’s Installation Process:

Modular Design: Simplifies installation and reduces the need for heavy machinery.
Pre-integrated Systems: Streamlines the installation process.
Expert Support: Professional advice and continuous assistance throughout the installation.
Video Tutorials: Detailed guides for step-by-step guidance.
Remote Assistance: Real-time support to address any installation challenges.

Additional Services:

CE Certification: Adheres to international quality standards.
Customization: Tailored solutions to meet specific needs.
Warranty Coverage: Repairs or replaces damaged accessories during the warranty period.

Why Choose Bincen:

Expertise: Specializes in electronic scales, ingredient controllers, measuring devices, and automation solutions.
Quality: Offers reliable and credible products with precise algorithms and consistent performance.
Customer Support: Provides comprehensive sales support from pre-purchase to post-purchase.
