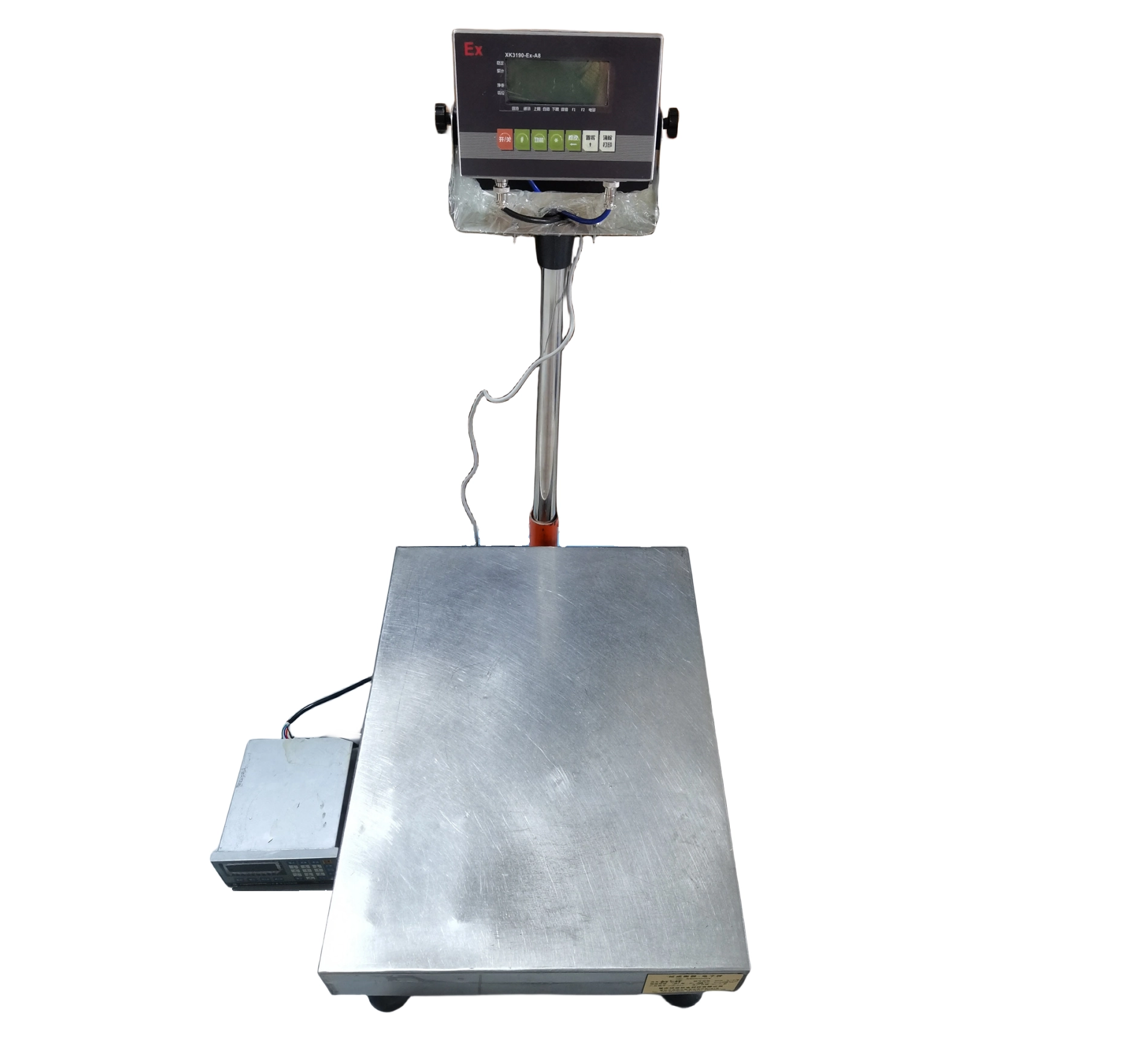

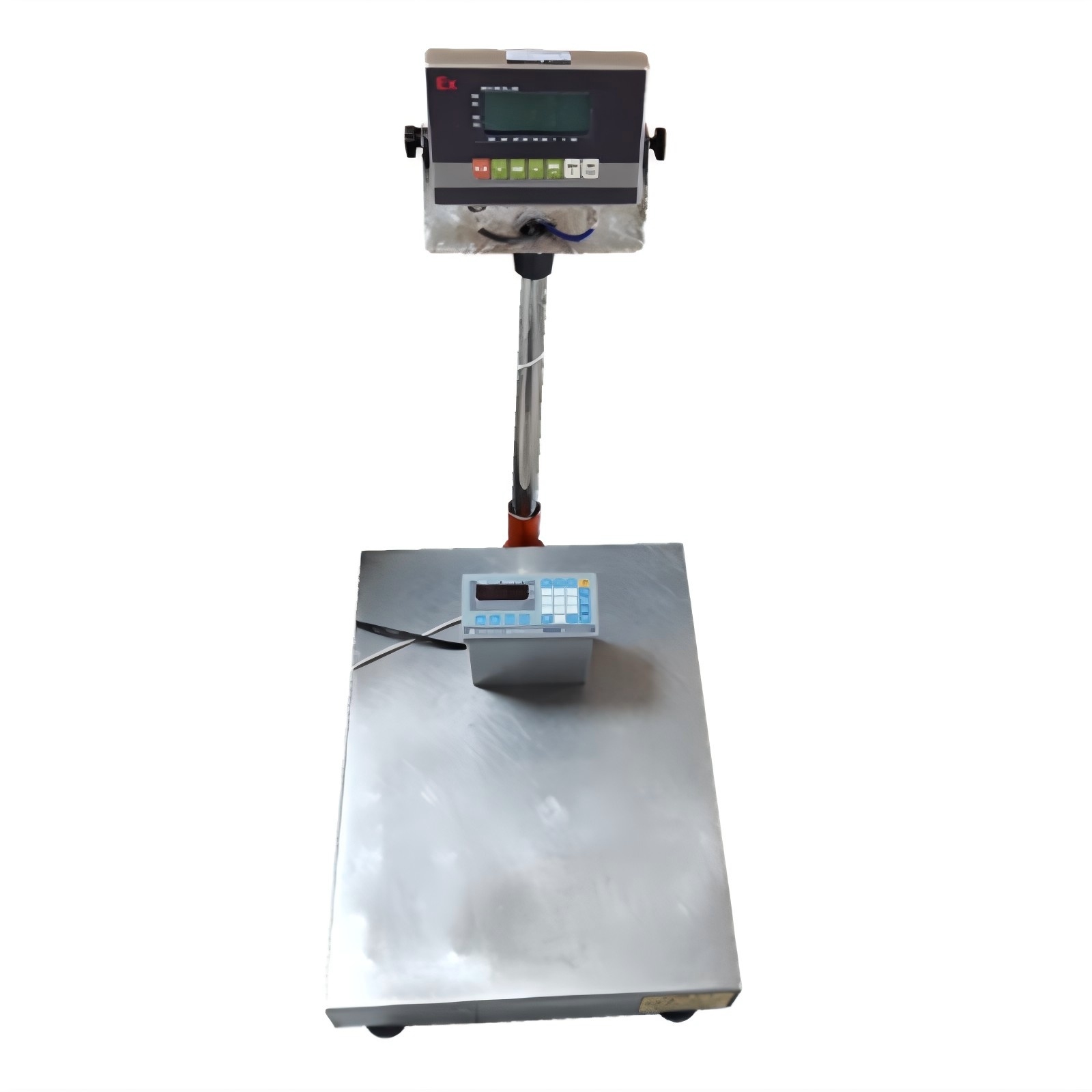

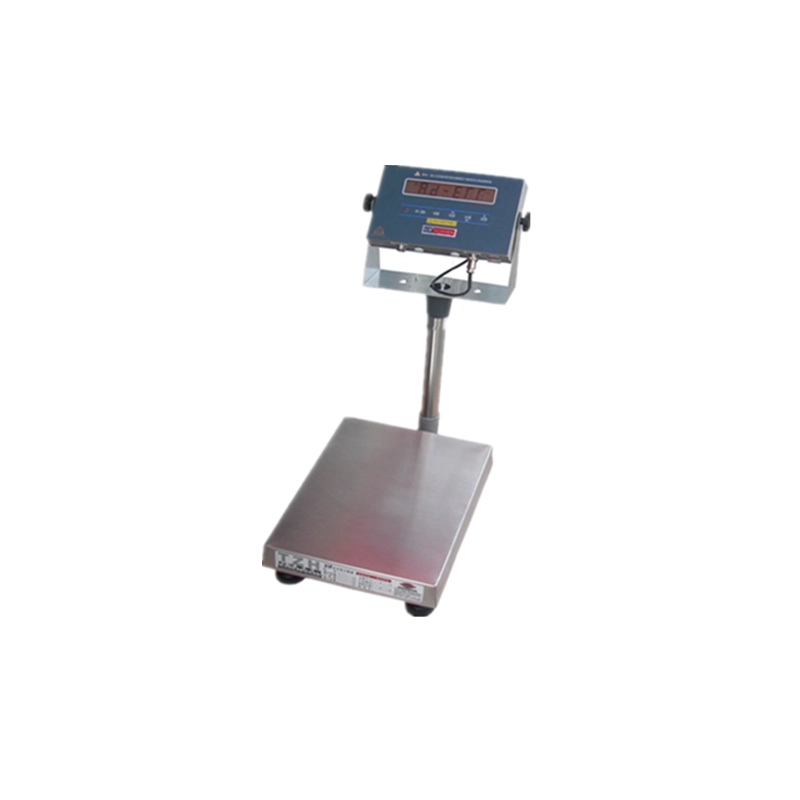

Explosion Proof Electronic Platform Scale
- Display Type: LED
- Accuracy level: OIML Ⅲ
- Intrinsically Safe: Uses an intrinsically safe instrument and explosion-proof sensor.

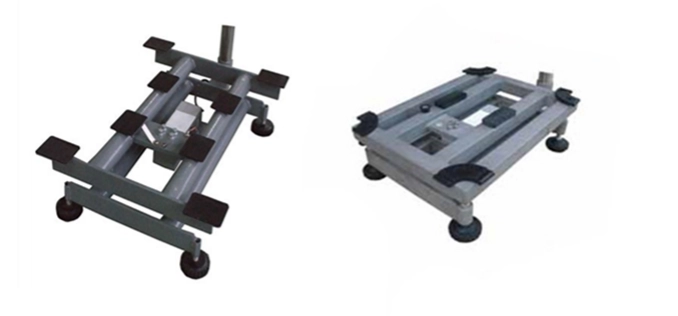

- High-Strength Scale Body: Constructed with a robust scale body for durability.
- Explosion-Proof Design: Designed to meet explosion-proof requirements in hazardous environments.
- High Precision and Anti-Interference: Offers accurate weighing results and is resistant to interference.
- Material Options: Available in carbon steel or stainless steel.
The Bincen Explosion Proof Electronic Platform Scale is a sturdy and reliable weigh solution that is designed to stand up to dangerous environments and is one of our most popular electronic scales that are explosion proof. The scale has a multi-functional LCD display that has higher and lower alarms to provide clear and precise readings. The weighing functions include the ability to hold a peak as well as levels IV power indicator and automated shutdown to ensure safety and effectiveness. The system for managing power will extend the life of batteries by using features such as lower power usage, auto sleep, and multiple-level power-saving modes. Data management is easy by using multi-unit switching and storage capacity for up to 99 data sets of weighing with manual or automated accumulation capabilities, and a manual/automatic accumulation feature. Additionally, the circuit board has been encased by an encasement that ensures the durability of the circuit even in harsh conditions.
Specification
| Adopt 32-bit low-power ARM processor, with main frequency of 5OMHz | |
| Accuracy level: | OIML Ⅲ |
| Maximum calibration divisions: | 3000 |
| Adopt 32-bit low-power ARM processor, with a main frequency of 5OMHz | |
| Input signal range: | – 19mV~19mV |
Function
1. LCD Display
- Multi-function LCD display window
- Upper and lower limit alarm function
- HIGH-OK-LOW status indication
2. Weighing Functions
- Peak holding function
- Level IV power indication
- Under voltage alarm
- Automatic shutdown
- External serial port printing function
3. Power Management
- Low power consumption design
- Automatic sleep
- Multi-level power-saving mode
- Real-time clock function
- Built-in self-contained power protection
- Multi-level backlight brightness adjustment
4. Data Management
- Multi-unit switching function
- Storage and query of up to 99 groups of weighing data and time
- Manual/automatic accumulation function
5. Construction
- Circuit board encapsulation protection process

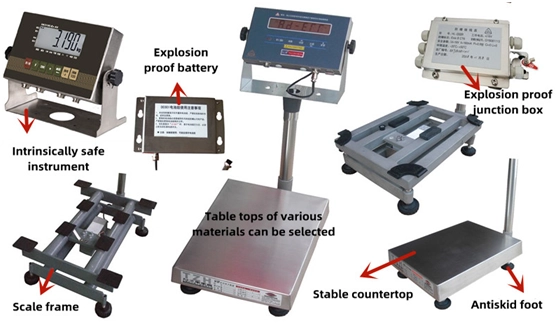

Accessories Introduction

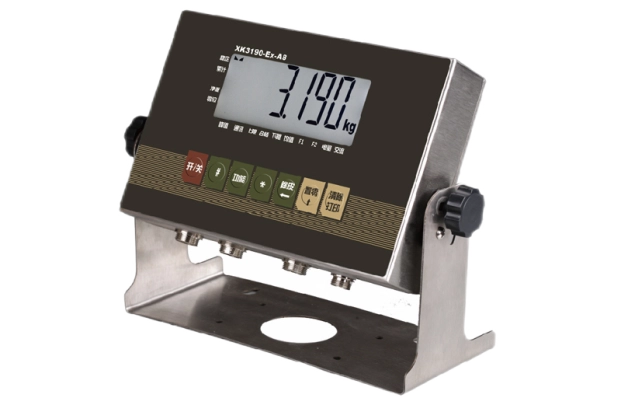

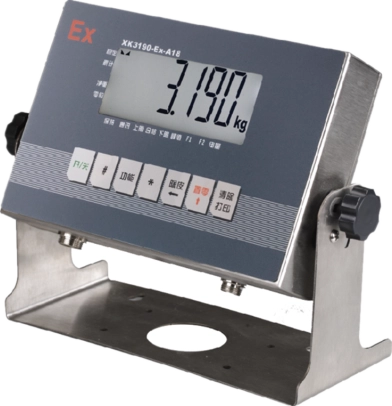

（1）Intrinsically safe explosion-proof instrument
Explosion-proof grade is Ex ib IIC T3/T4 Gb.
All stainless steel intrinsically safe explosion-proof instrument
Uses a static weighing system with up to four 3502 sensors,
Can be used in most explosive gas occasions.
（2）Intrinsically safe load cell
5kg~30kg, Exia IIC T6

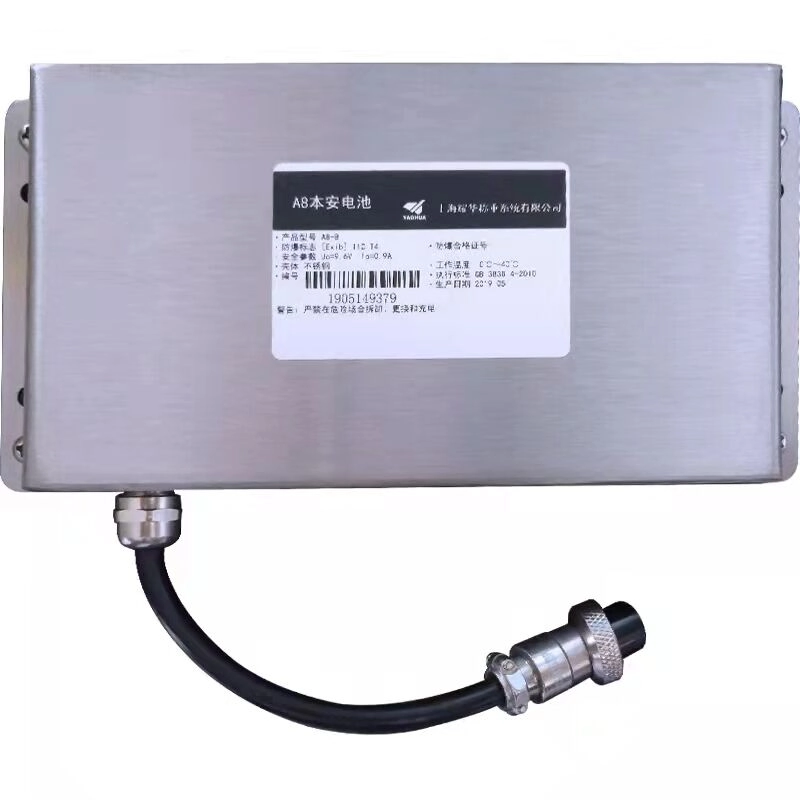

(3)Explosion-proof battery
