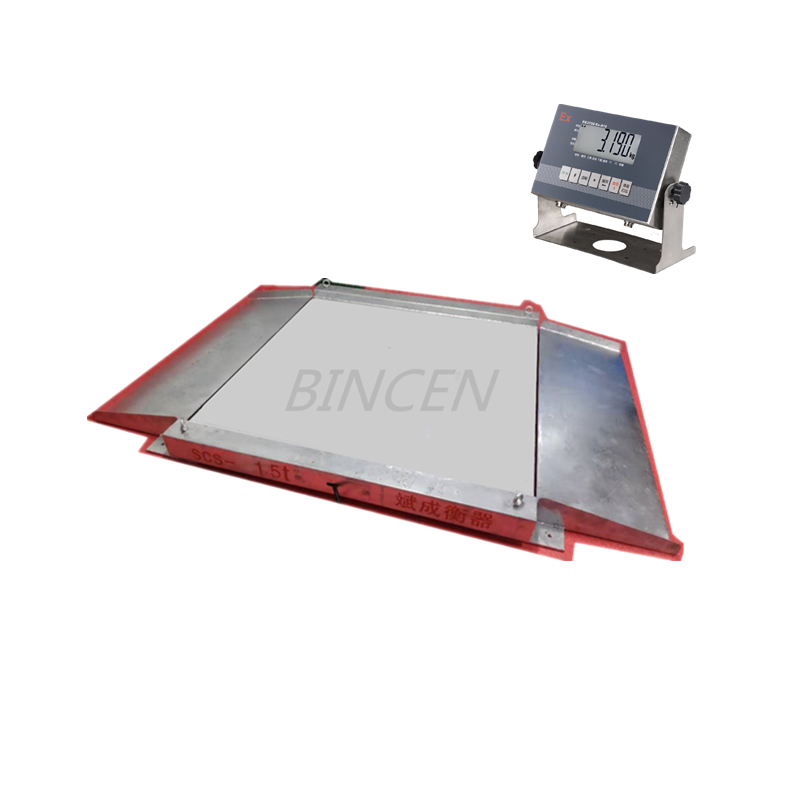

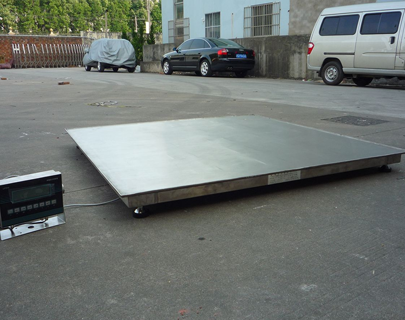

Explosion-Proof Small Weighbridge
- Display: LCD HD display
- Sensitivity temperature drift: ≤12ppm/°C
- Customized Available: ODM, ODM
- Types: intrinsically safe explosion-proof and flameproof explosion-proof.
- Application: Suitable for weighing in explosive places such as chemicals, pharmaceuticals, food, natural gas, petroleum, and dust.
Bincen’s small, explosion-proof weighbridge offers the most robust and reliable weighbridge that is specifically designed for use in hazardous areas. Built with a range of materials and specifications that can be used for various requirements this weighbridge has a wide range of vital functions, including zero setting as well as taring, accumulation and printing. Other features like weight counting and checking, holding and sorting expand its capabilities. Large screen interface for display and an the option of serial RS232 output, makes it easy to perform data transfer and reading. To provide advanced connection, this weighbridge can support the RS232/RS485 (Modbus RTU) backhaul communications and an analog output (0-20mA/4-20mA).
Specification of Explosion-Proof Small Weighbridge
Below are the detailed specifications of our explosion-proof small weighbridge, designed to meet OIML III accuracy and C3-grade load cell standards.
| Display | LCD HD display | Accuracy level | OIML III |
| Counting resolution | One in 300000 | Power AC | AC110V/220V 50Hz |
| AD conversion resolution | One in a million | Power DC | DC 6V/4.5Ah |
| Nonlinearity | ≤0.01 %F.S | Sensitivity temperature drift | ≤12ppm/°C |
| Working temperature | 0~40°C | Sensor | Resistance strain type C3 grade 30000 graduation |
Functions of Explosion-Proof Small Weighbridge
- Zero setting, peeling, accumulation, and printing.
- Weight counting, counting, weight checking, holding, and sorting.
- Large screen display interface: serial RS232 output (optional).
- Back to communication interface RS232 /RS5485 (Modbus RTU) (optional).
- Analog output:0-20mA/4-20mA (optional).

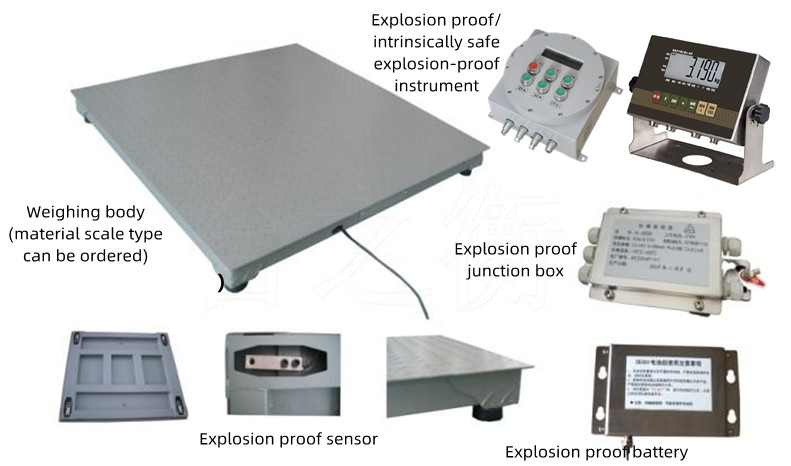

Configuration of Explosion-Proof Small Weighbridge

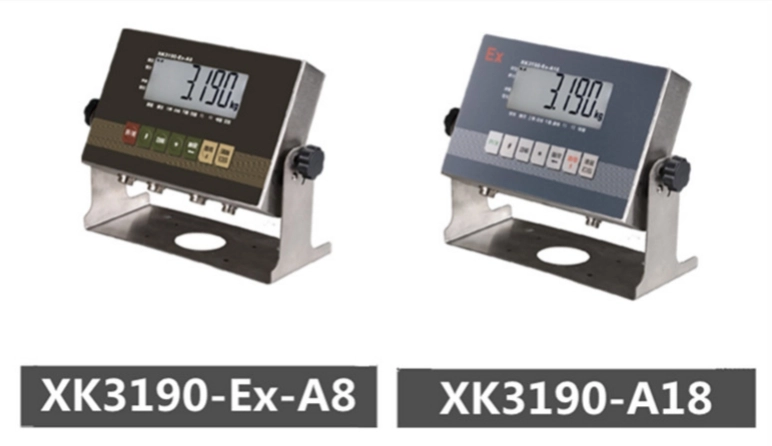

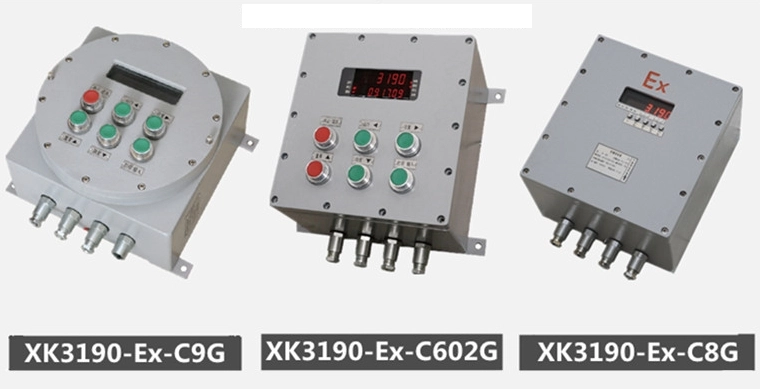

A. Instrument

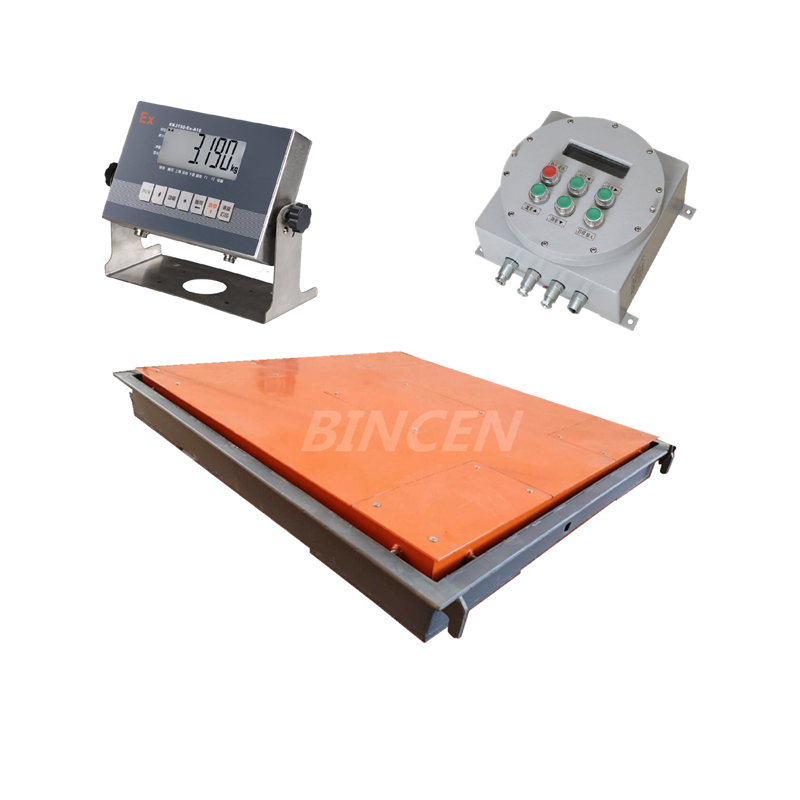

The explosion-proof small weighbridge consists of intrinsically safe instruments, flameproof indicators, and precision load cells. Each component is designed to ensure system stability and accurate performance in environments where electrical sparks could be hazardous.
- Intrinsically safe instrument
2. Flameproof
B. Intrinsically safe series load cell (5kg-30t) ExiaⅡCT6
C. Equipped with a safety barrier, explosion-proof junction box, and explosion-proof battery
To maintain safety during operation, the system is equipped with an explosion-proof junction box and battery module. The battery and connection parts are treated to reduce the risk of electrical sparks and can be used together with intrinsically safe instruments
- Explosion-proof batteries are treated with electrical explosion-proof technology and can be used in hazardous areas together with intrinsically safe instruments.
- Install the explosion-proof battery behind the instrument through four screws.
- Before charging, screw out the four screws of the battery shell, take out the battery, and place it in a safe area for charging.
- During use, when the instrument displays “lobatt” indicating that the battery is low voltage, please charge the battery in time.

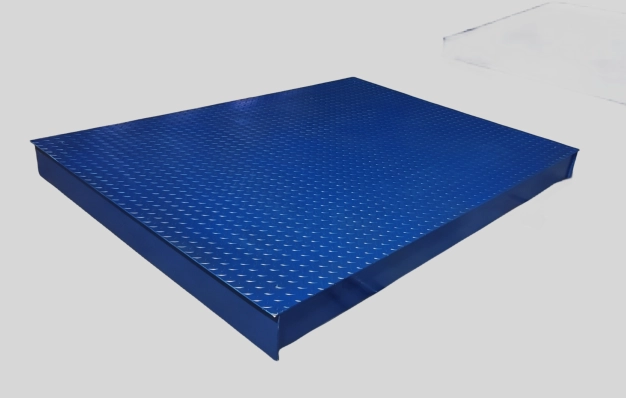

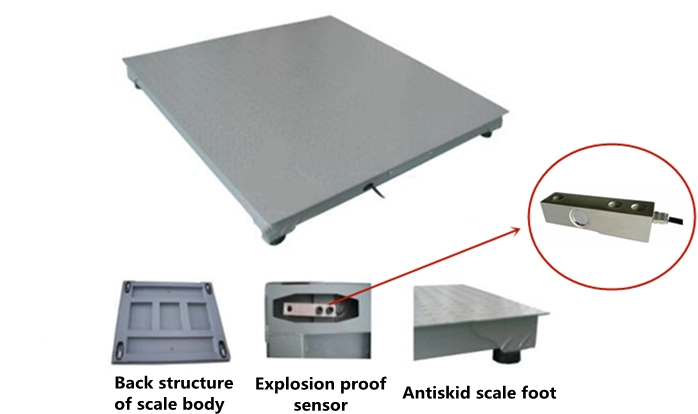

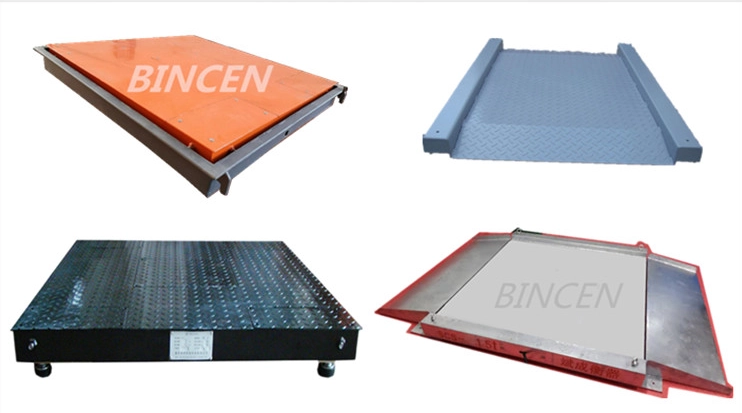

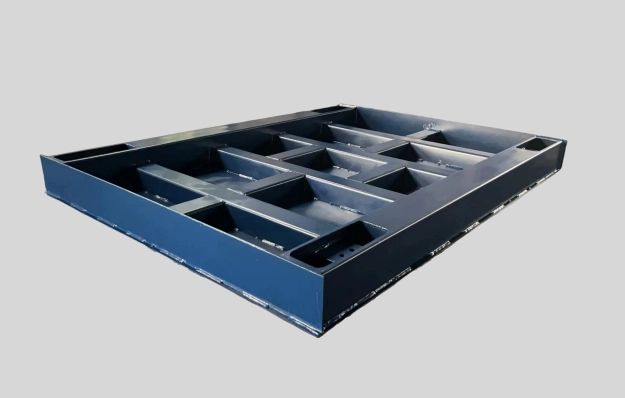

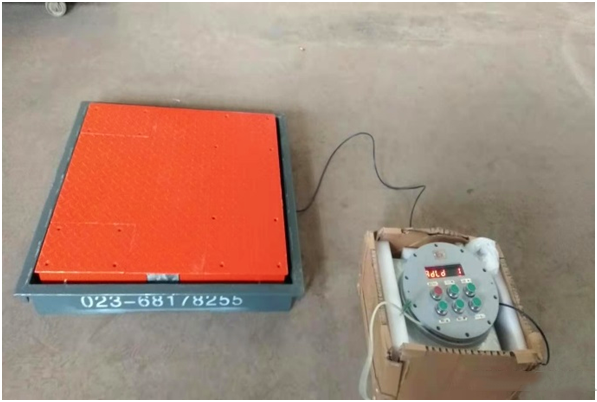

Scale Detail Display
How to Install the Explosion Proof Small Weighbridge
- Bincen‘s modular design for our explosion-proof small weighbridge streamlines system integration. This modular approach eliminates the need for large cranes during installation, reducing costs and labor requirements.
- To ensure customer satisfaction, we offer comprehensive technical support. Our services include technical consultation, installation guidance, and after-sales support. While on-site service may not be available in your area, we provide detailed product installation videos for remote assistance.
