Flat Panel Dynamic Weighing System
- Power supply voltage: 10V (DC/AV)
- Maximum single axis or axle group load: Max=40t
- Minimum single axis or axle group load: Min=1000kg
- Accuracy level of total vehicle weight: Level 5
- Components: Load cells, weighing instrument
- Function: Measures tire forces, vehicle passing time
- Calculation: Calculates wheel/axle/vehicle weight, speed, wheelbase
Its Bincen flat panel dynamic weigh system is a cutting-edge system created to provide precise vehicle weights at the speed of. Made up of an dynamic weight sensor and weighing instrument detector for vehicles, and a field cabinets, the solution offers an efficient and compact approach to dynamically weighting. Flexible weighing sensor lengths for weighing sensors can allow for different road widths and the system’s design is effective in compensating for lateral forces created by the irregular movement of vehicles. Installation is easy and requires no extra structures which makes it suitable for a variety of roads and bridge decks. With high accuracy, a short lag and a fast reaction capable of measuring vehicles with speeds of as high as 100 km/h, this system provides exceptional accuracy even at slow speeds. The system is reliable and stable and can be run continuously all day long.
System Composition
- Dynamic weighing sensor (configure a suitable length of weighing sensor according to the width of the road surface)

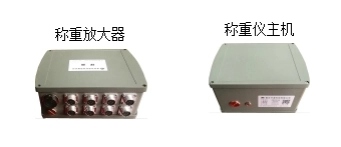

- Dynamic weighing instrument (including weighing software)
- Vehicle detector (coil)
- Field cabinet (power distribution, temperature control)
Specification
| Maximum single axis or axle group load | Max=40t |
| Minimum single axis or axle group load | Min=1000kg |
| Graduation value | d=50kg |
| Operating speed | V=0-120km/h |
| Accuracy level of total vehicle weight | Level 5 |
| Accuracy level of single axis load or axis group load | E level |
| Implementing national standard | GB/T21296 Dynamic Highway Vehicle Automatic Scale |
| Sensitivity (mV/V) | 1-2 |
| Nonlinearity | ± 0.2% FS |
| Repeatability | ± 0.2% FS |
| Input resistance (Ω) | 30-40 |
| Output resistance (Ω) | 30-40 |
| Insulation resistance | ≥ 5000M Ω |
| Power supply voltage | 10V (DC/AV) |
| Operating temperature range | -40C -+70C |
| Connecting cables | φ 10 * 6m |

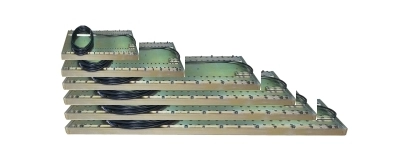

| Length | 650mm, 1000mm, 1600mm, 1750mm, 1850mm, 2000mm |
| Width | 400mm-450mm |
| Thickness | 55mm |

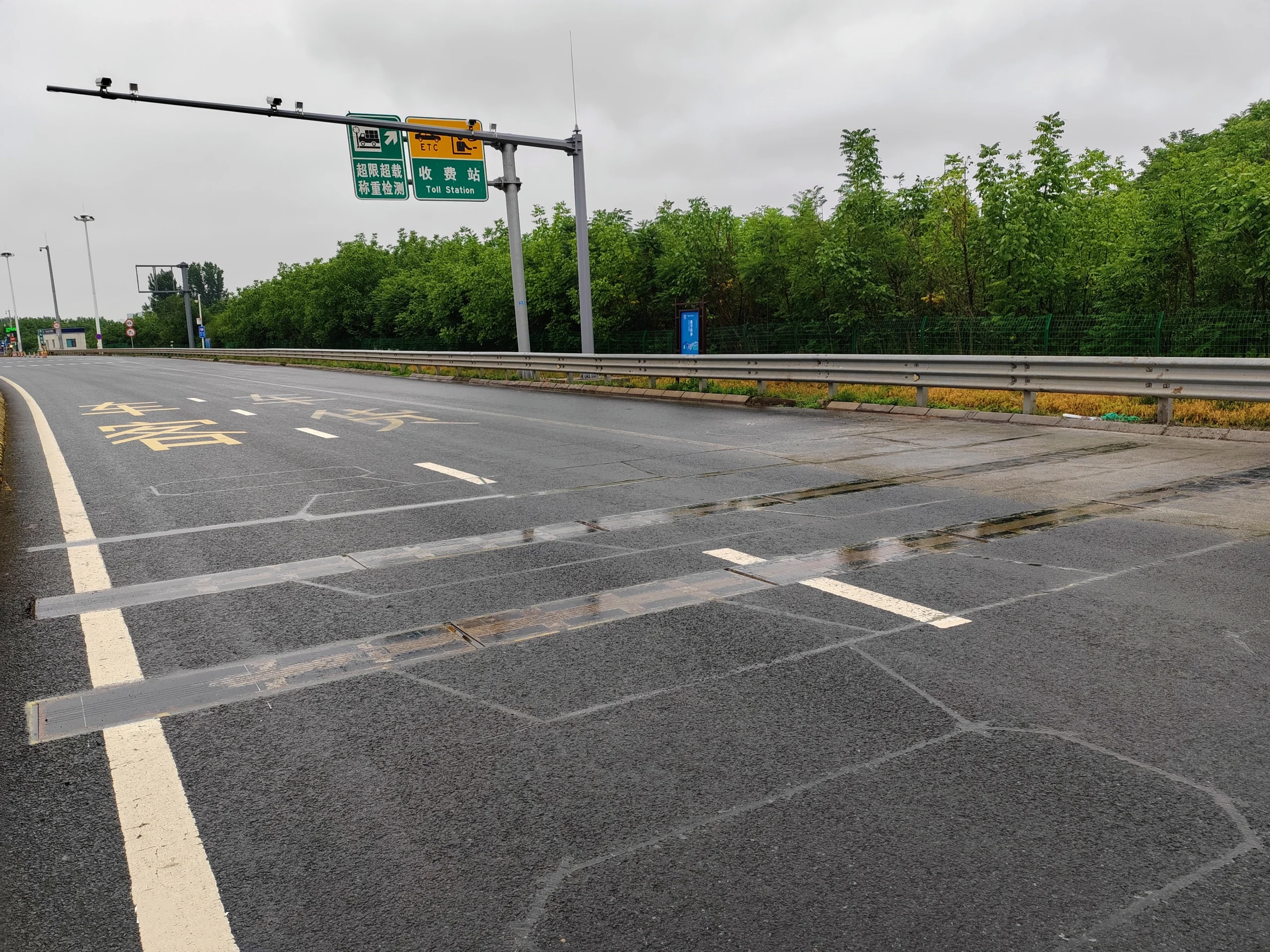

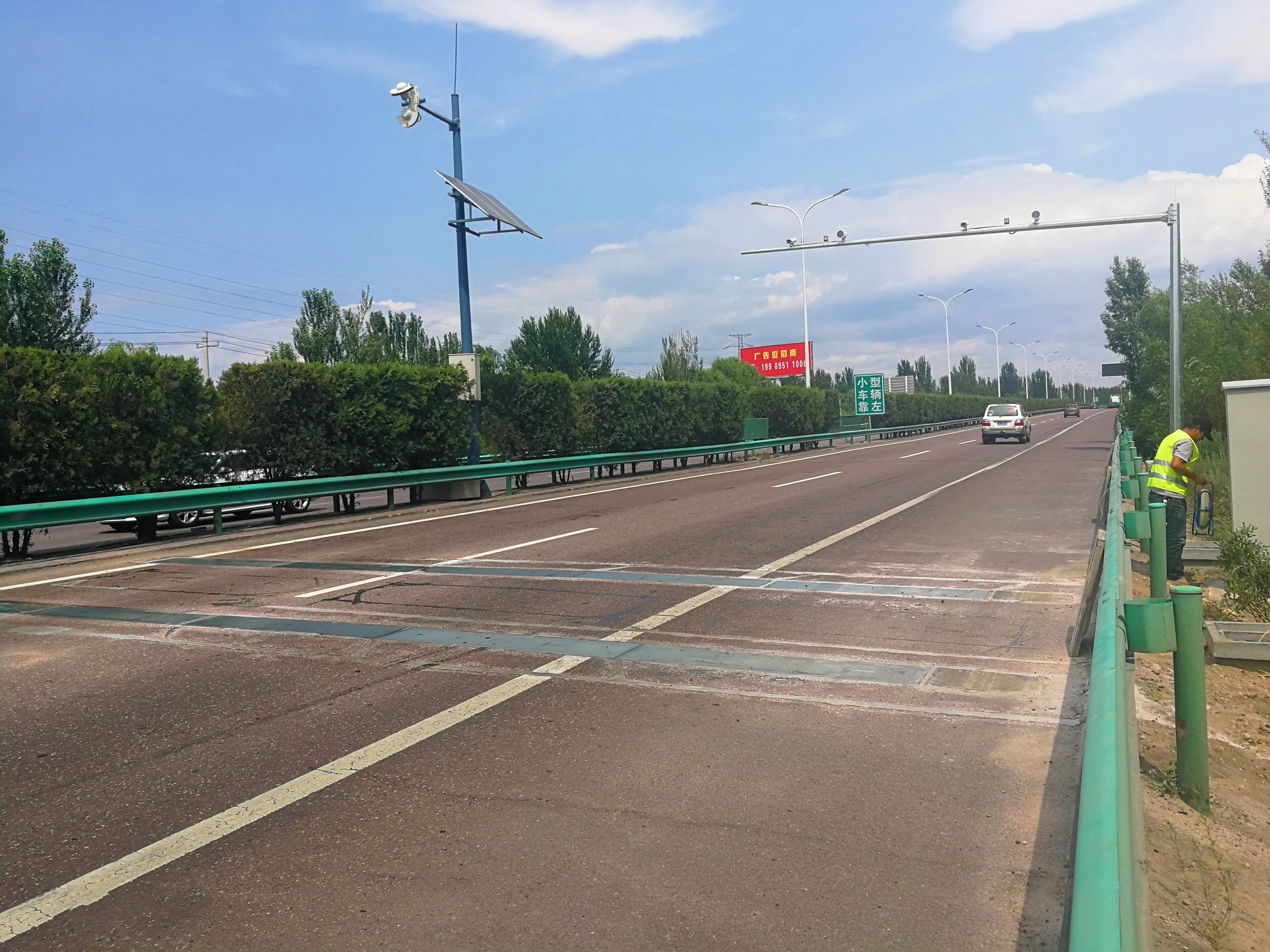

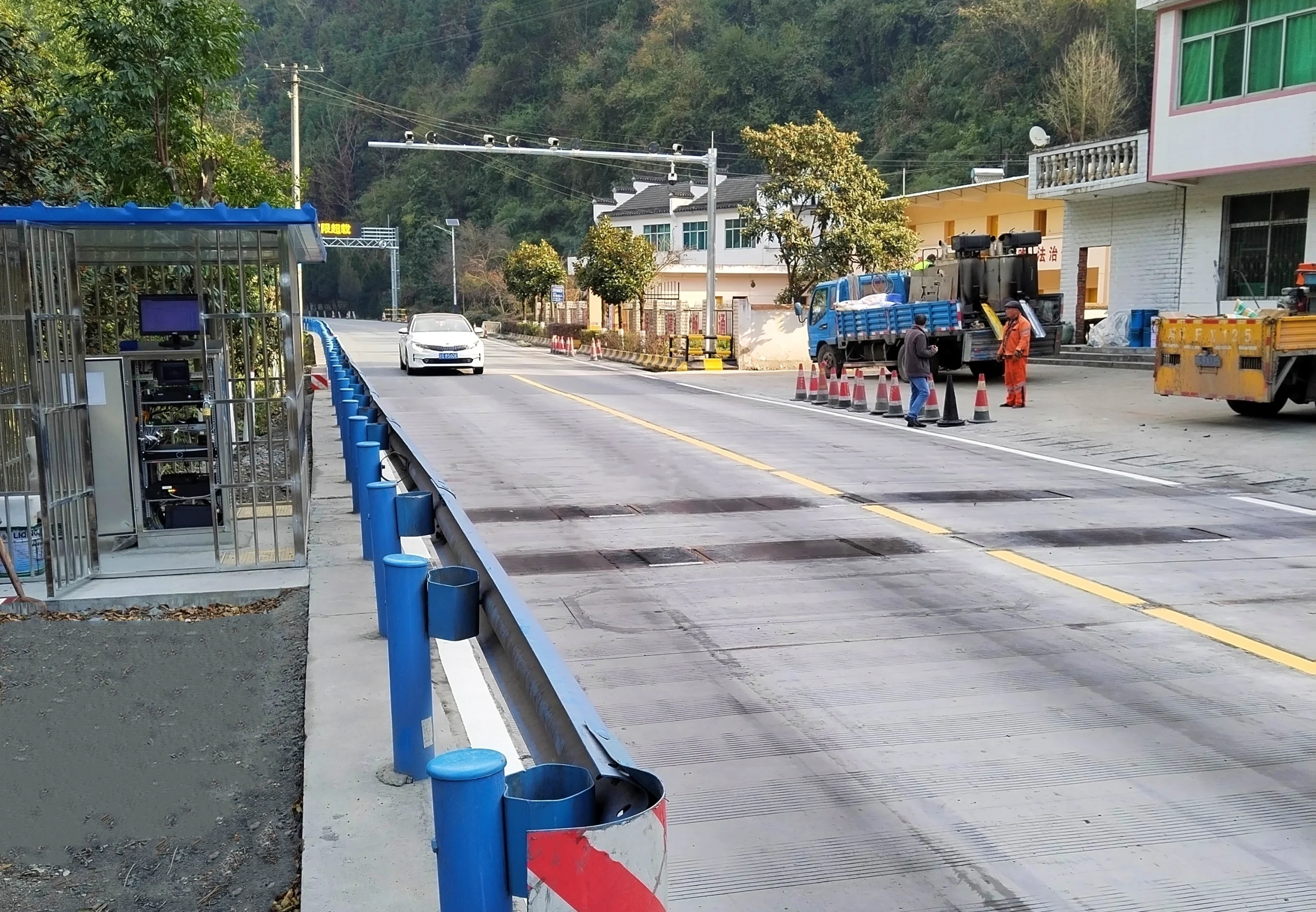

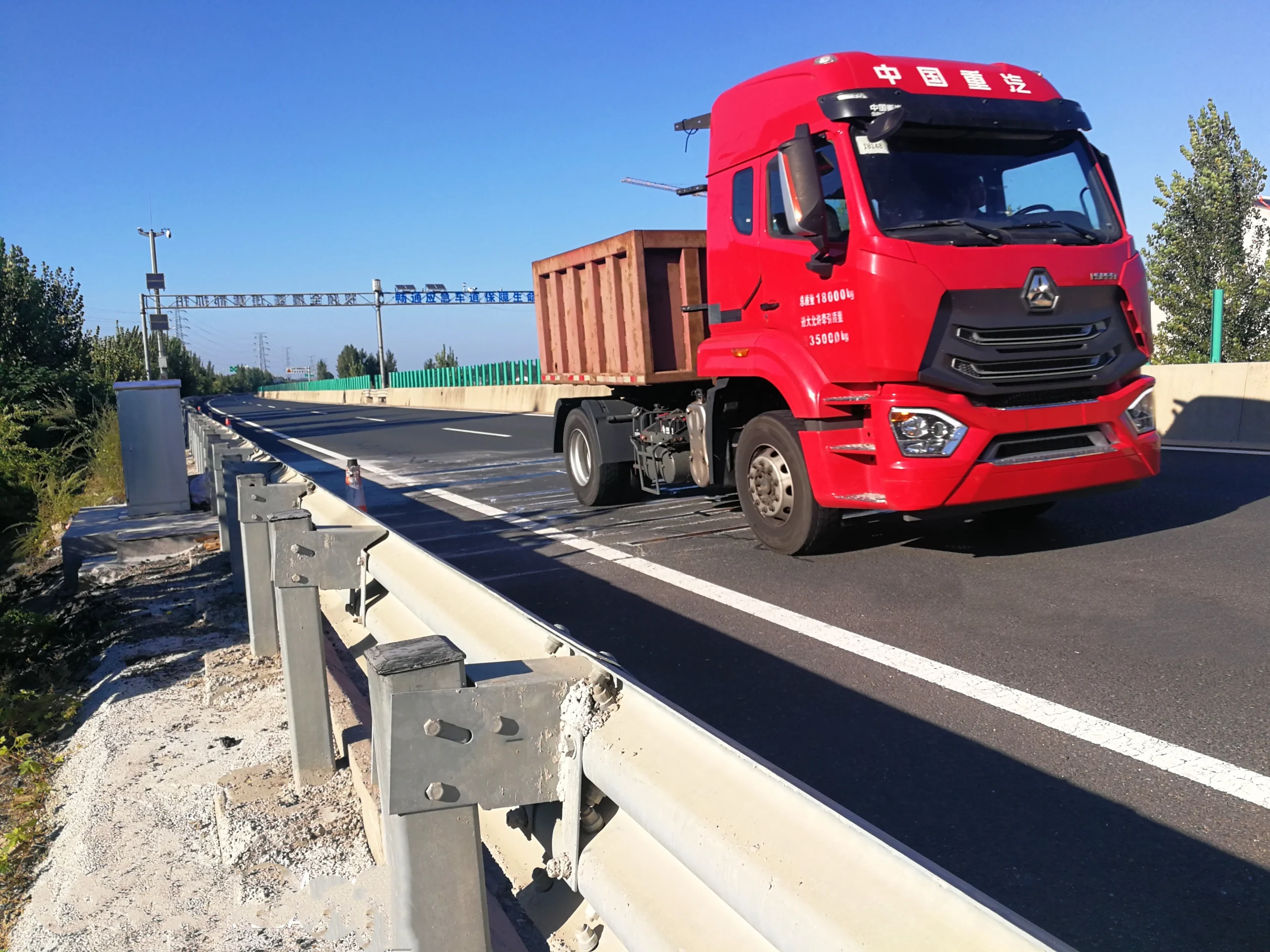

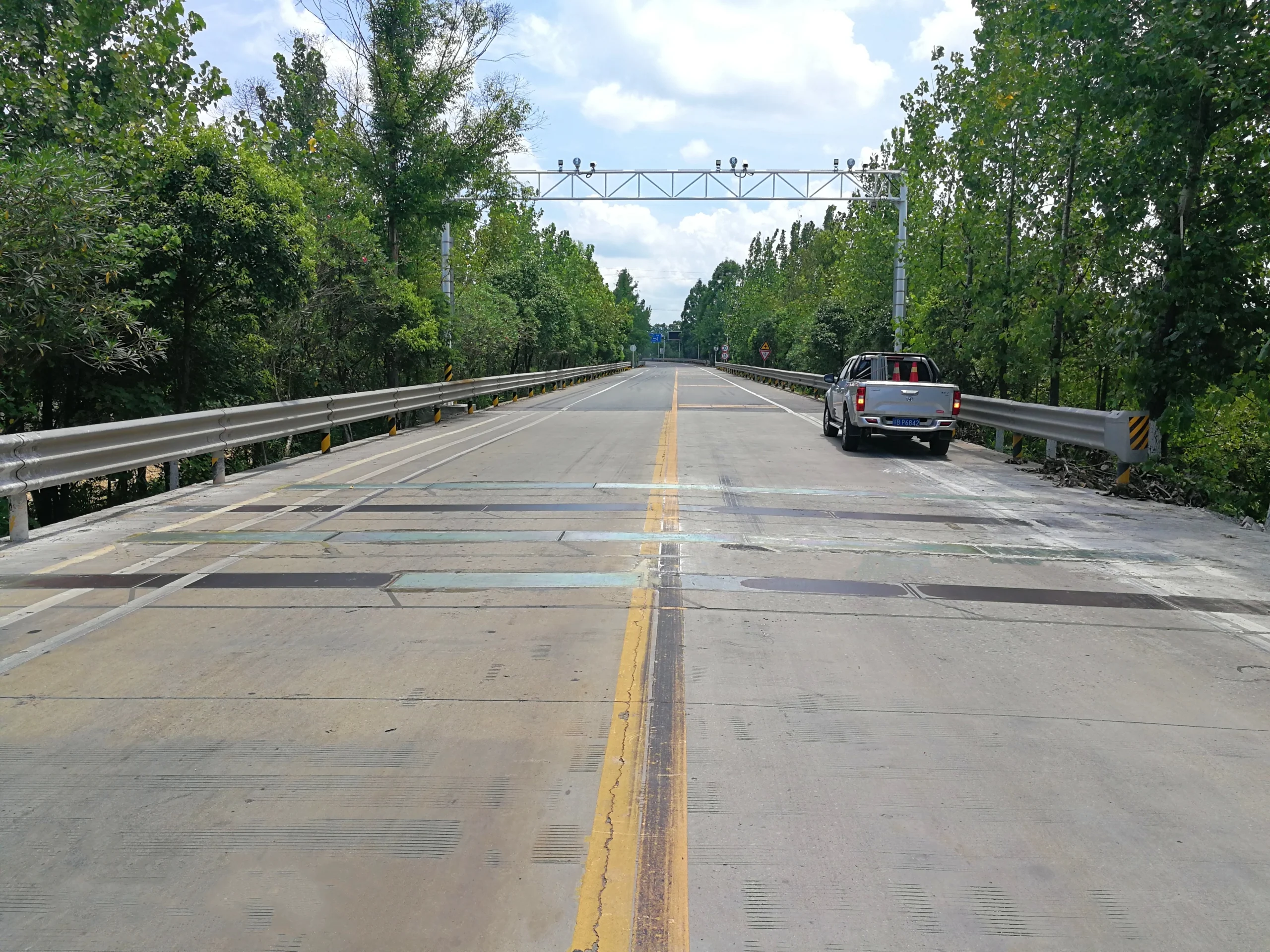

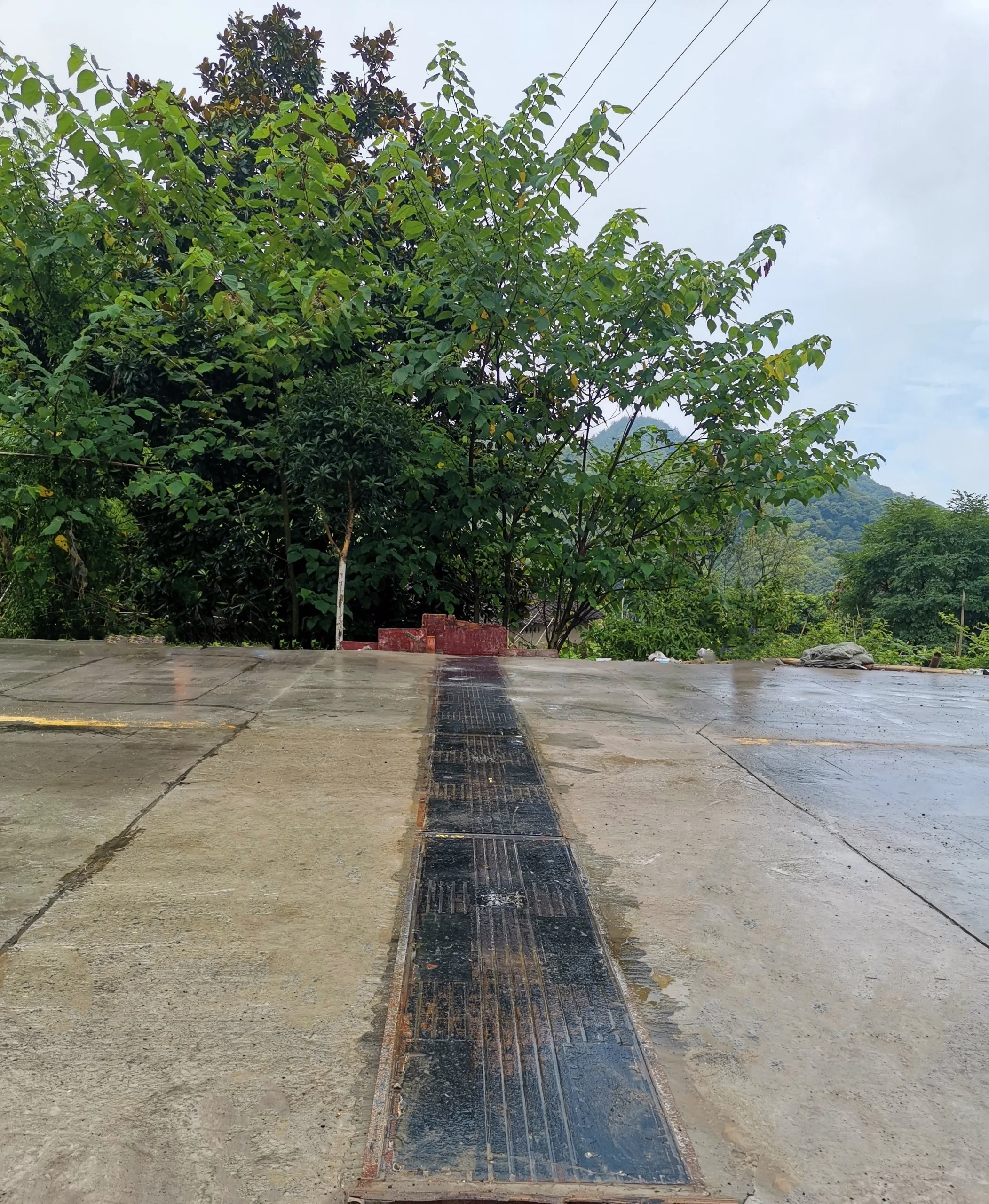

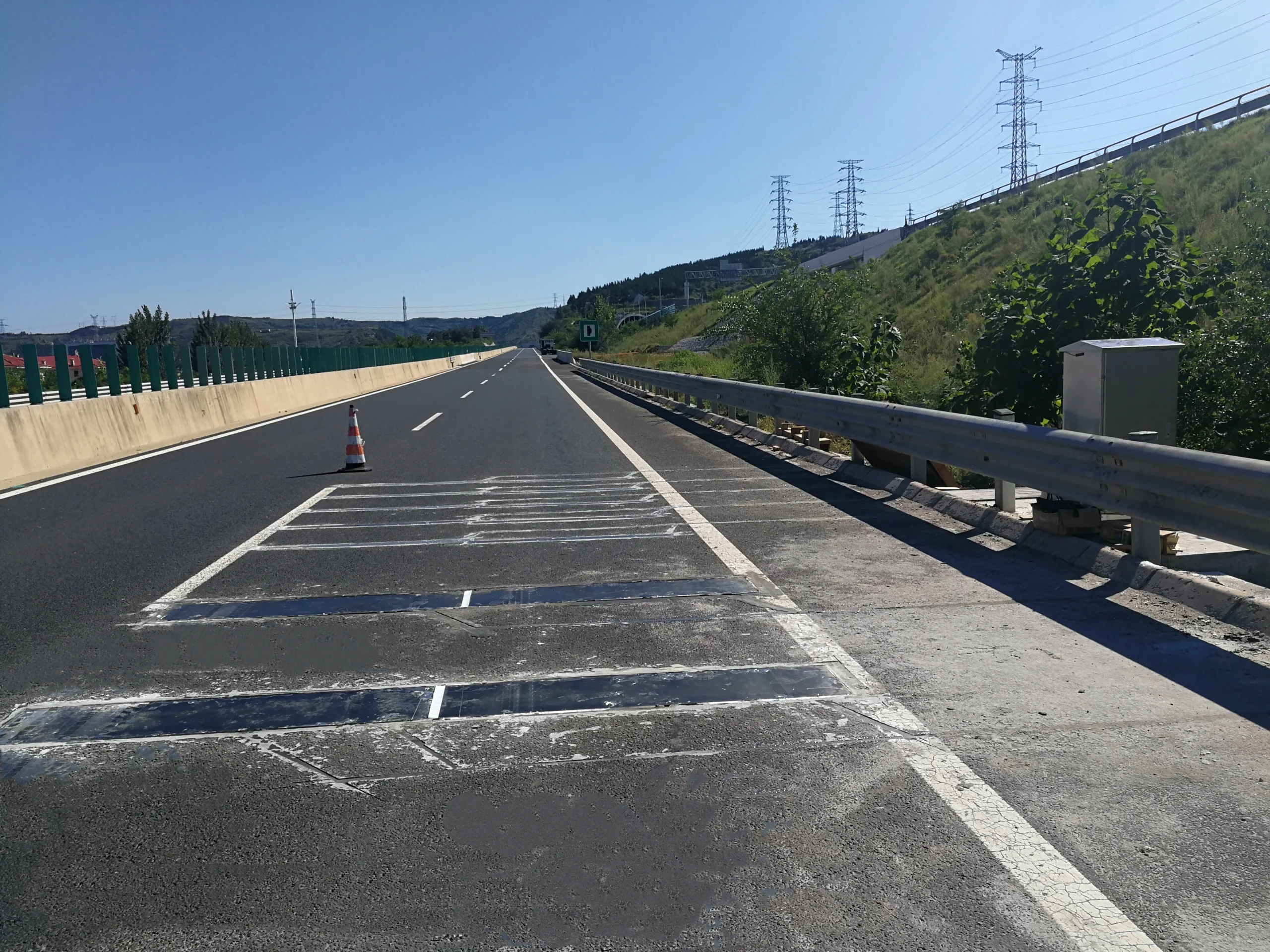

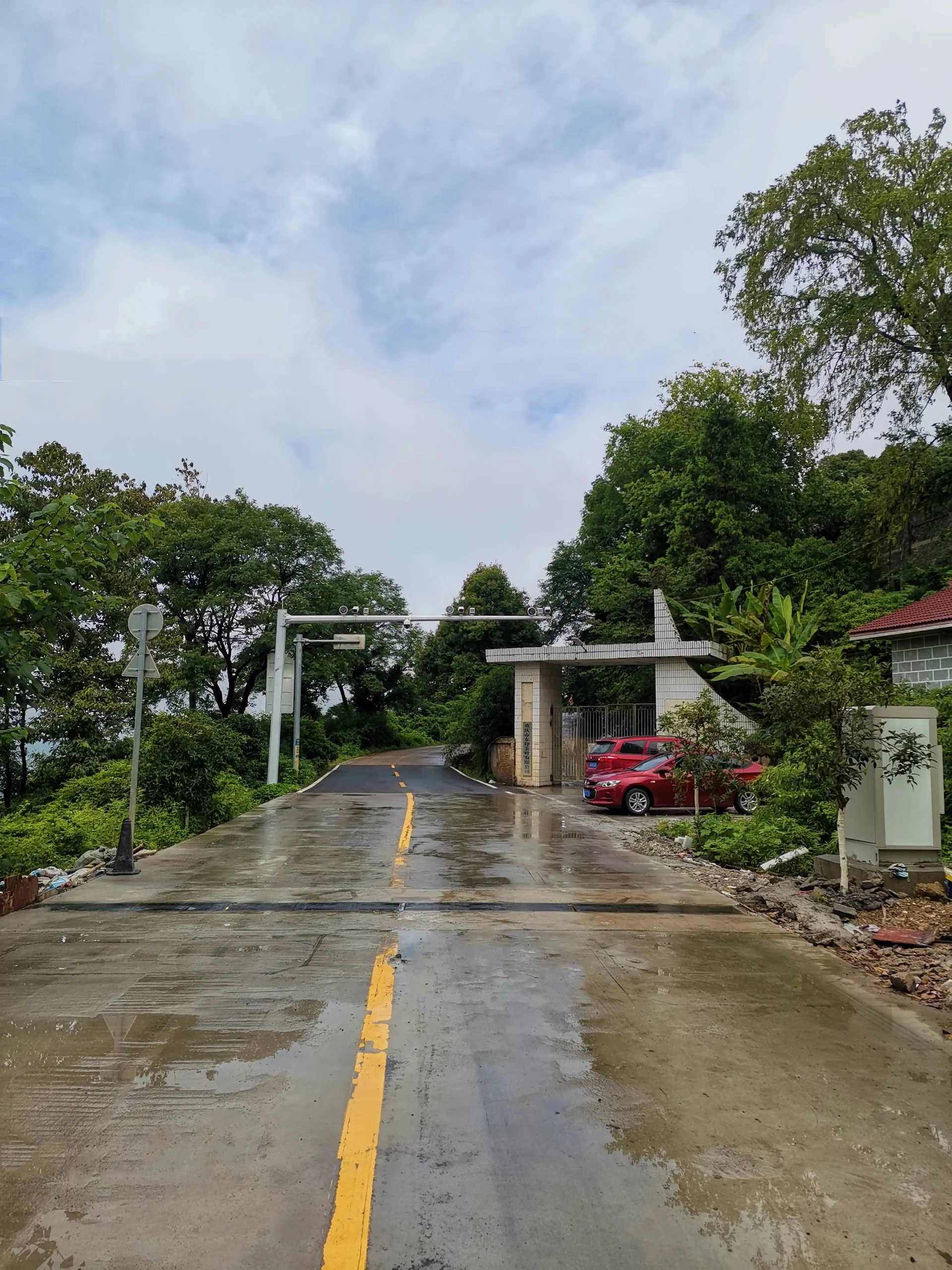

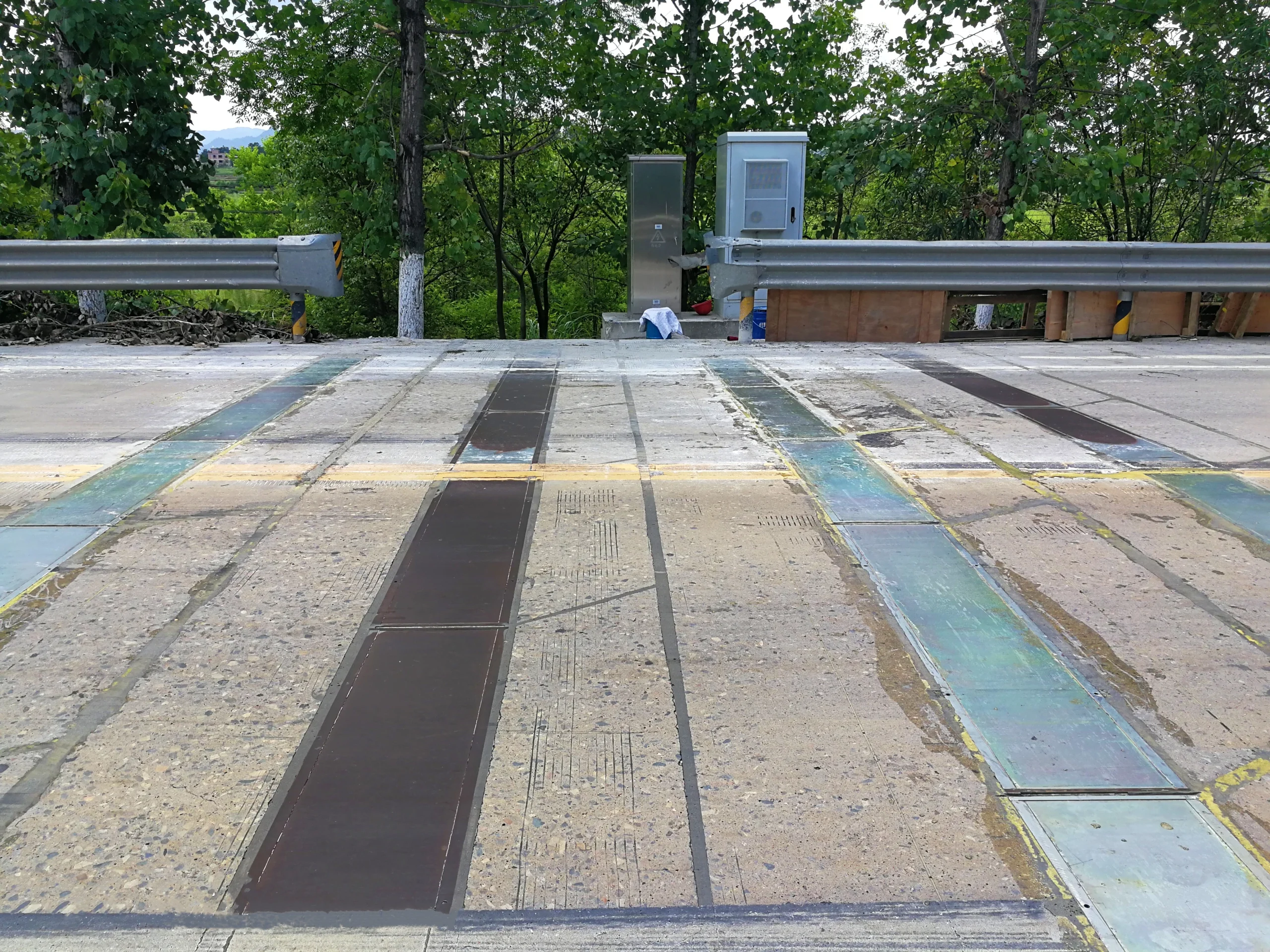

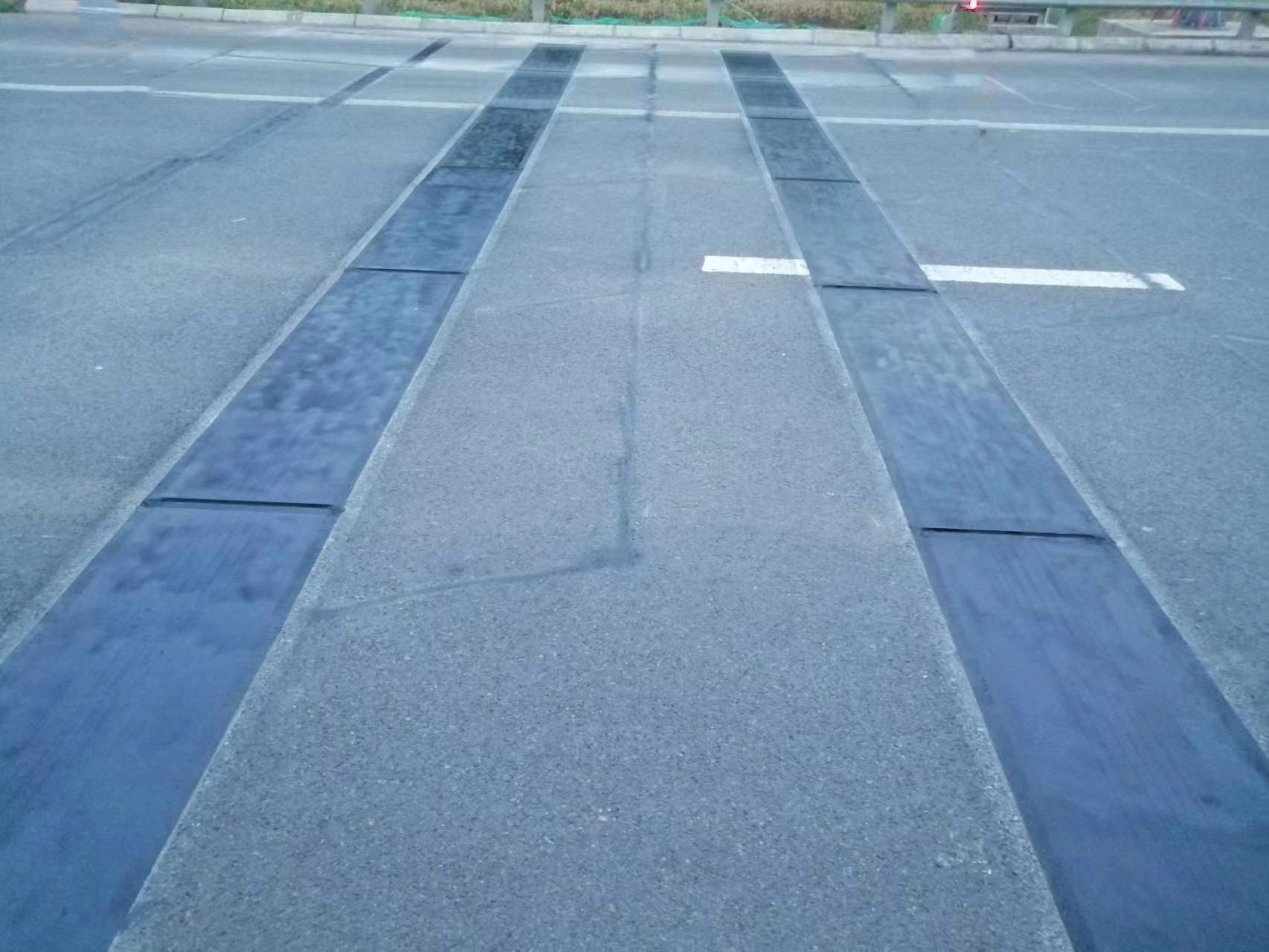

| Installation | Typically, 2 pieces are installed per lane, and 2-3 pieces are installed on ultra-wide lanes. |
Features
- Versatile Weighing: Capable of high-speed, low-speed, and static measurements.
- Advanced Compensation: Effectively mitigates data disturbances caused by irregular vehicle movement.
- Easy Installation: Requires minimal infrastructure, suitable for various road surfaces and bridge decks.
- High Precision and Responsiveness: Accurate measurements up to 100km/h and dynamic level 2 accuracy at low speeds.
- Reliable Operation: Continuous 24-hour automated operation.
Function
The Flat Panel Dynamic Weighing system operates stably, has a long service life, and high reliability, and is suitable for various road conditions, completing the weighing of vehicles at high and low speeds. Especially suitable for off-site overload control systems, overload pre-inspection, and entrance return systems.
How to Install the Flat Panel Dynamic Weighing System
- Complete Technical Service: We provide technical advice, installation guidance, and after-sales support.
- Remote Guidance: Due to the lack of a local after-sales service point, we offer online remote guidance for installation.
- Detailed Installation Videos: We provide detailed product installation videos to assist with remote guidance.
Note: Please be aware that on-site technical support is not available in your location. We recommend utilizing the provided remote guidance and installation videos for a successful installation process.
