Portable Truck Scales
- Display Type: LED
- Power supply: ~220V/50Hz
- Customized support: OEM, ODM
- Performance: Ultra-high frequency ensures better electromagnetic resistance.
- Logistics & Freight: Monitor truck weight before departure, reduce overload risks.
- Agriculture: Weigh grain or harvest loads directly in the field.
- Construction: Control truckloads of materials like sand, gravel, or concrete.
- Law Enforcement: Use portable truck scales for weight checks anywhere.
- Mining & Energy: Operate in rugged, remote areas without fixed infrastructure.
Portable Truck Scales for On-the-Go Precision Weighing

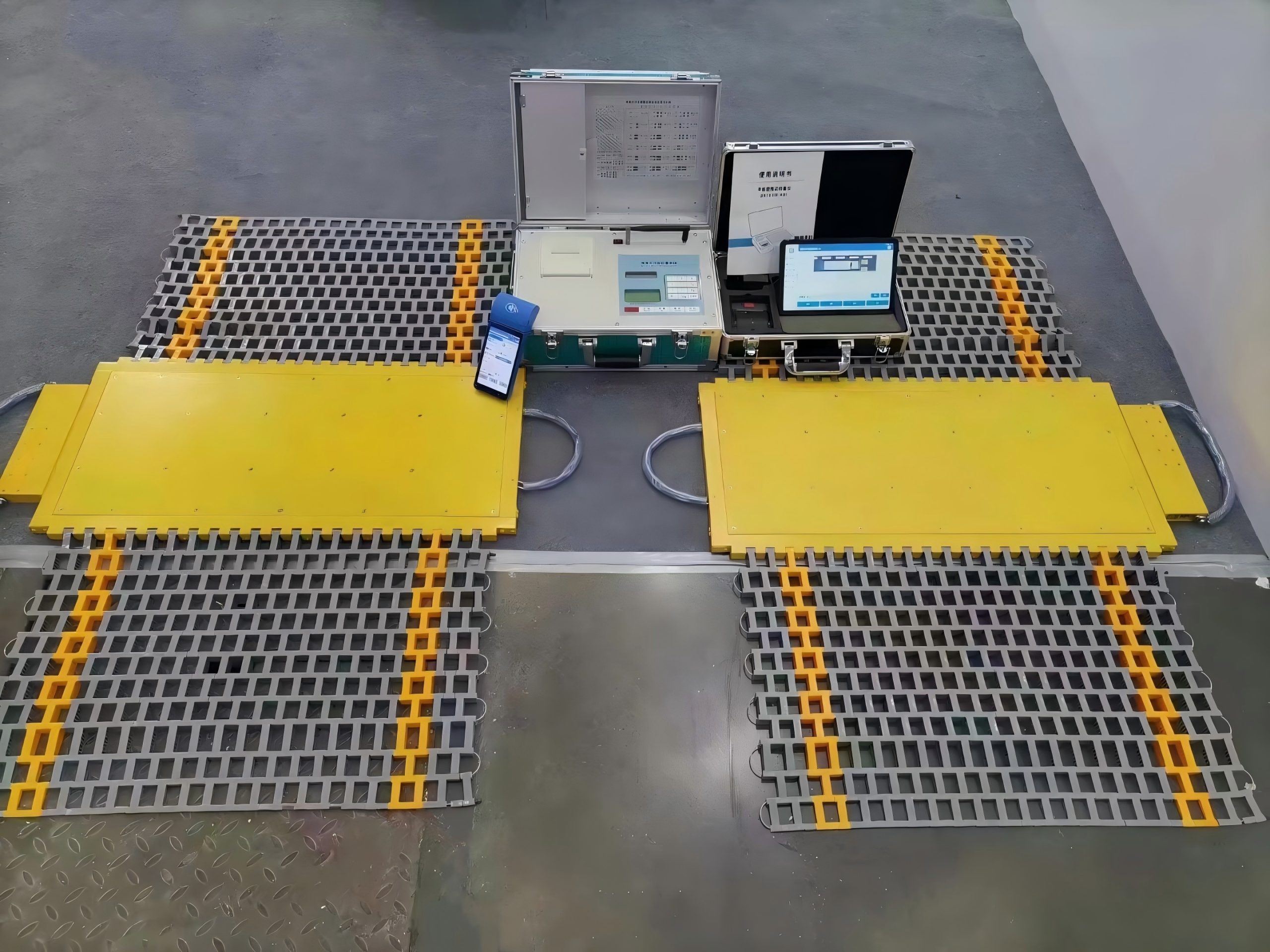

Bincen provides its Portable Axle Load Scale, the highest-precision and portable truck axle scale that is designed to weigh low-value materials in different industries. It has a stainless-steel column load indicator, a smart LCD dynamic indicator, as well as a compact, short-platform design. With its tiny footprint and the ability to accommodate both static and dynamic weights, the scale can provide a flexible and efficient measurement that can be used to suit a variety of uses.
Specification of Portable Scale Truck
| Scale platform size | 300-400mm * 400-900mm, special sizes can be customized. |
| Range | According to customer requirements, 10-35t. |
| Static display accuracy of the system | ± 0.5% (FS), |
| Dynamic weighing accuracy of the system | ± 1%~3% (FS) (determined by the weighing speed!). |
| Power supply | ~220V/50Hz, equipped with a rechargeable battery, can also be used in case of a power outage! |
| Weighing method | Cumulative weighing of axle load; Dual axle car weighing can reach 60t and 80t; The weighing capacity of the double bridge vehicle can reach around 80t and 100t. |
Application of a Portable Truck Scale
- Logistics & Freight Verification
- Agriculture & Harvest Monitoring
- Construction & Heavy Machinery Movement
- Law Enforcement Weight Compliance
- Military & Disaster Relief Mobility
- Temporary Weighbridge Replacement
Key Features and Benefits
1）Portability and Convenience
- Compact size: Small footprint, no need for foundation.
- Portable: Can be easily moved when not in use.
- Wireless technology: Improved portability and electromagnetic resistance.
2）Functionality
- Data display: Displays date, time, truck number, ticket number, battery voltage, and vehicle speed.
- Zero drift elimination: Uses floating technology.
- Dynamic and static measurement: Can be used for both moving and stationary vehicles.
- Axle-by-axle weighing: Measures the weight of each axle with no limit on the number.
- Printed invoices: Includes detailed information such as date, time, truck number, invoice number, axle weight, combined axle weight, truck weight, overload, and actuator.
How to Install the Portable Truck Axle Scale
Products from Bincen provide modular components and pre-integrated systems, making setting them up a breeze. Portable axle load scale,
portable truck axle scale supplier Bincen has got your back every step of the way. Our complete technical service system provides you with expert advice, clear installation instructions, and ongoing after-sales support. We’ve got detailed video tutorials and remote assistance to ensure a smooth portable axle load scale installation
How Portable Truck Scales Work
Setting up is simple:
- Position the pads under each wheel or axle.
- Connect the pads to the digital indicator or wireless tablet.
- Drive the vehicle onto the scales for immediate, accurate readings.
Some models come with integrated ramps and leveling bases to ensure optimal measurement conditions, even on uneven ground.
Model Comparison at a Glance
| Model Name | Max Capacity | Pad Size | Wireless | Use Case |
|---|---|---|---|---|
| PTX-20 | 20 tons | 700x400mm | Yes | General fleet checks |
| AXPro-40 | 40 tons | 900x500mm | Optional | Heavy-duty loads |
| WheelScan Lite | 10 tons | 600x350mm | Yes | Rapid axle-by-axle checks |
Why Choose Our Portable Axle Scales
Unlike bulky weighbridges or static solutions, our portable systems provide:- True mobility without compromise
- Rapid ROI through reduced downtime
- Compliance-ready calibration and certifications
- Local service and global shipping availability
Backed by over a decade of industry experience, we combine engineering excellence with customer-first support.
Frequently Asked Questions
Q: Are portable truck scales legal for trade?
A: Some models are certified for trade use. Let us know your region’s compliance needs, and we’ll recommend a model accordingly.
Q: Can these be used on uneven or unpaved surfaces?
A: Yes, many models come with leveling mats or bases for accurate use in field conditions.
Q: How do I maintain the scales?
A: Minimal maintenance required — regular calibration checks and protective storage between uses are sufficient.
Why Choose Us?
- Bincen is a leading provider of precision measurement and automation solutions for the construction machinery industry. Our extensive product line includes electronic scales, ingredient controllers, measuring devices, and complete automation systems.
- Known for our reliability and accuracy, our weighing and batching controllers are designed to meet the demanding requirements of large-scale industrial operations. We serve a diverse customer base, including renowned Chinese enterprises in construction, aerospace, and other industries.
- Our commitment to quality is reflected in every product we create. We adhere to strict manufacturing standards and provide comprehensive sales and support services, including expert guidance, installation, and ongoing maintenance. Bincen is your trusted partner for customized, ODM, and OEM solutions.
