How Do We Utilize Belt Scale in Construction and Mining?
What is a Belt Scale and How Does It Work?
A belt scale is an industrial weighing device integrated into a conveyor belt system to measure the flow rate and total weight of bulk materials in real time. It operates using load cells to sense the weight of the material on the belt and a speed sensor to determine belt velocity. These inputs are processed by an electronic controller that calculates instantaneous and totalized weight.
In essence, a belt scale enables non-stop, automated material tracking without halting production — a vital function in high-throughput environments like construction and mining.

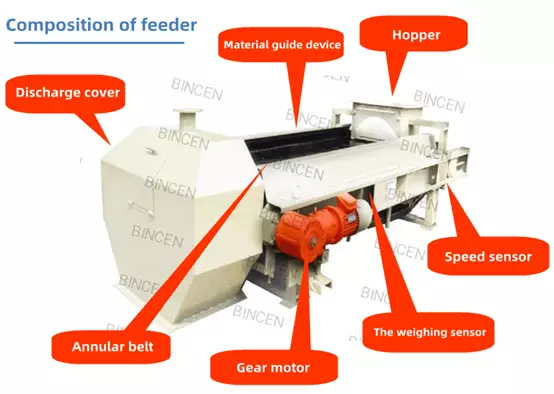

Key Components
| Component | Function |
| Weigh Bridge | Supports the conveyor belt and transfers weight to load cells |
| Load Cells | Measure the force exerted by the material load |
| Speed Sensor | Tracks belt movement to calculate material flow rate |
| Controller/Indicator | Processes signals and displays flow/weight information |
How Do We Utilize Belt Scales in Construction and Mining?
Applications and Benefits of Belt Scales in the Construction Industry
| Aggregate Production | In concrete batching plants or road base preparation, belt scales monitor the precise quantity of aggregates like sand, gravel, and crushed stone. This ensures: 1 . Consistent concrete mix quality 2. Reduced material waste 3. Optimized crusher and screener performance |
| Material Loading & Inventory Control | Track demolition debris and excess materials during site clearance, helping improve: 1 . Waste disposal planning 2. Environmental compliance |
| Mixing and Batching Operations | With real-time weighing, site managers can: 1. Prevent underloading or overloading of trucks 2. Maintain accurate stock records 3. Streamline procurement decisions |
| Waste Monitoring | In concrete batching plants or road base preparation, belt scales monitor the precise quantity of aggregates like sand, gravel, and crushed stone. This ensures: 1 .Consistent concrete mix quality 2. Reduced material waste 3. Optimized crusher and screener performance |

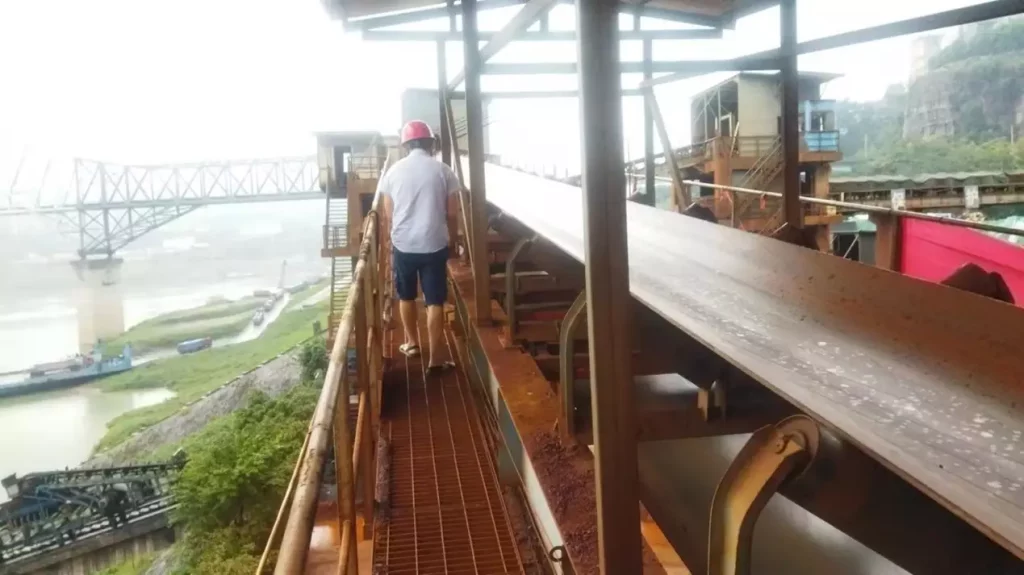

Applications and Impact of Belt Scales in the Mining Sector
| Ore Extraction and Processing | From crushers to flotation tanks, belt scales: 1. Control the ore feed rate into the mills 2. Optimize throughput in crushing/grinding circuits 3. Enable accurate metallurgical accounting |
| Concentrate and Tailings Management | 1. Rack production output for valuation 2. Measure waste volumes for environmental compliance 3. Improve slurry pipeline management via flow data |
| Mine Haulage Optimization | 1. Ensure trucks/railcars are loaded within legal and safe weight limits 2. Maximize payloads to reduce transportation cycles and fuel costs |
| Stockpile Management | 1. Enable precise material tracking to/from stockpiles 2. Avoid understocking, which halts production, or overstocking, which ties up capital |
How to Install and Use Belt Scales Effectively
Proper installation and calibration are crucial for achieving reliable data. Here’s a simplified checklist:
| Step | Description |
| Site Selection | Choose a flat, tension-free section of the belt with consistent loading |
| Mounting | Install the weigh frame beneath the conveyor belt with accurate alignment |
| Calibration | Use test weights or chains to calibrate system response under expected load conditions |
| Integration | Connect the scale to SCADA or ERP systems for centralized data monitoring and analytics |
| Maintenance | Schedule periodic recalibration and inspect for belt misalignment or load cell damage |
Pro Tip: Use automatic zero tracking and digital diagnostics to maintain accuracy over time.
How Do We Select the Right Belt Scale
When choosing a belt scale for your construction or mining operation, consider the following:
Application Suitability
| Type | Ideal Use |
| Single Idler | Moderate accuracy, low-flow construction uses |
| Dual Idler | Higher flow rates, improved accuracy for aggregate batching |
| Multi-Idler (3-4) | High-precision, heavy-duty mining operations |
| Low-Profile | Space-constrained installations (underground belts, retrofits) |
Key Selection Factors
- Belt width & speed: Match the system to your conveyor’s physical specs
- Accuracy requirements: Mining often demands ±0.5%, construction ±1–2% acceptable
- Environment: Dust, vibration, and moisture resistance
- Data integration needs: Real-time monitoring, remote diagnostics, wireless connectivity
Ensure your vendor provides ISO certification, warranty, and support for calibration and maintenance.
Smart Data, Remote Monitoring & ROI
Modern belt scales are no longer stand-alone devices. Advanced systems offer:
- Wireless telemetry for remote monitoring
- Integration with digital twins in smart mining/building platforms
- AI-based predictive maintenance
ROI Insight: Belt scales typically pay for themselves within 6–18 months through:
- Waste reduction
- Optimized transport logistics
- Reduced manual labor and rework
Final Thoughts
Belt scales are no longer optional in fast-paced, precision-driven industries like construction and mining. They ensure consistent quality, reduce material losses, and offer deep operational insights through real-time data. Whether you are producing concrete or processing ore, the right belt scale can transform your efficiency and accountability.
